14058 - Troy-Bilt Grass Pump System (SN: 140580100101 - 140580199999) GRASS PUMP SYSTEM Parts Diagram

Grass Pump System

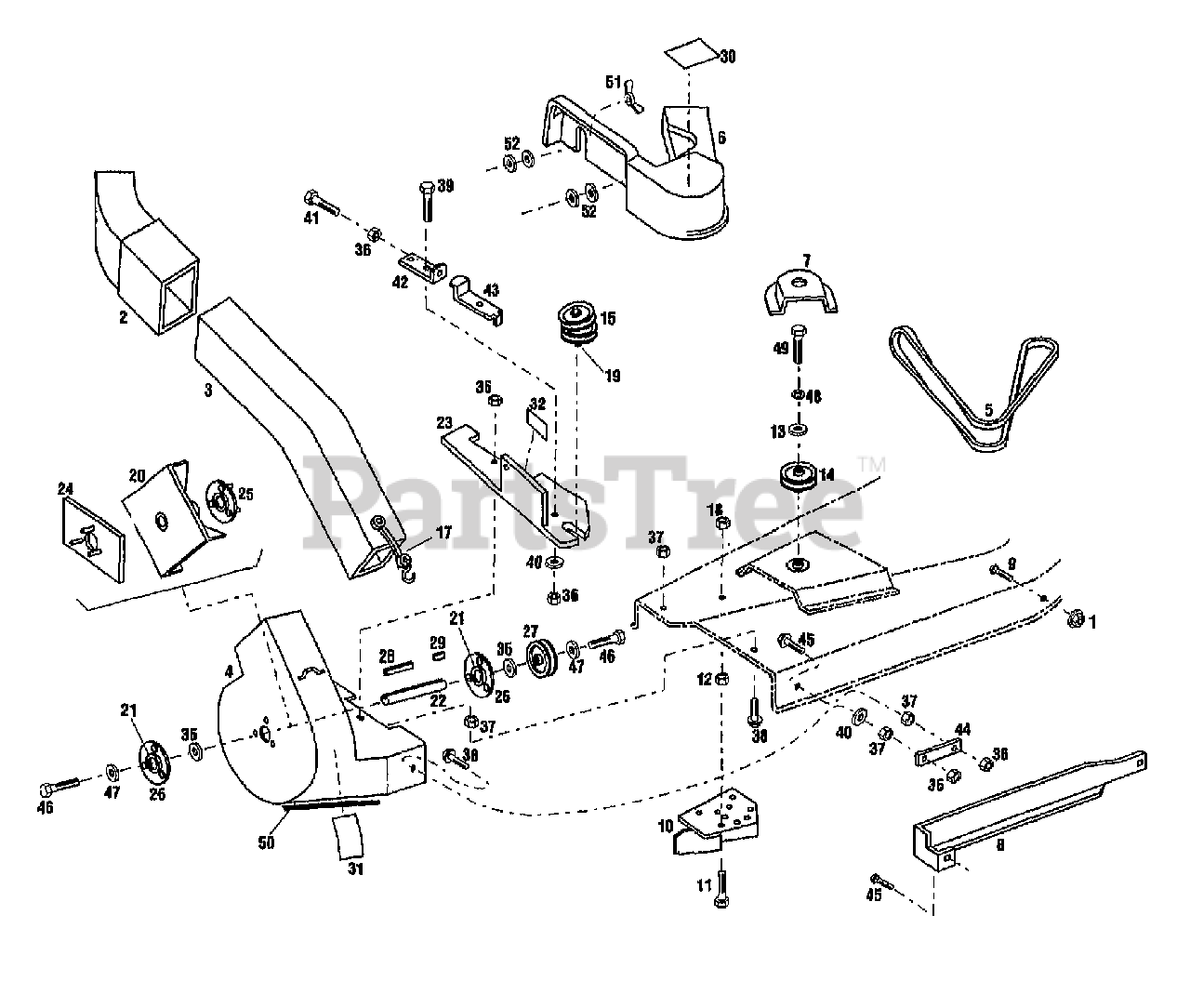

GRASS PUMP SYSTEM Parts Diagram

  • Title

1

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

1

MTD 1755636

CHUTE-UPPER ELBOW

$

$

Not available

3

MTD 1755641

TUBE-LONG

$

$

Not available

4

MTD 1756270

HOUSING

$

$

Not available

5

MTD 1755639

BELT-V

$

$

Not available

6

Troy-Bilt 1756207

GUARD-BELT

$

$

Currently unavailable

7

MTD 1756208

GUARD-BELT

$

$

Not available

8

MTD 1754755001

BAFFLE-LONG

$

$

Not available

9

Troy-Bilt 1186097

SCR-CARR 5/16-18X.62 G2 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

10

MTD 1754714001

ASSM-BAFFLE

$

$

Not available

11

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 1186258

NUT-HEX JAM 5/16-18
(Superseded to 712-3007)

$6.99

$

In Stock, only 2 left!

0

13

MTD 1100265

WASHER-1.25X.5X.083 ZP

$

$

Not available

14

MTD 1765600

SHEAVE

$

$

Not available

15

Troy-Bilt 1755640

SHEAVE-DOUBLE IDLER

$

$

Currently unavailable

17

Troy-Bilt 1756167

ASSM-STRAP

$

$

Currently unavailable

18

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

19

MTD 1758125

SHAFT-DOUBLE IDLER

$

$

Not available

20

MTD 1756197

IMPELLER

$

$

Not available

21

Troy-Bilt 1756198

BEARING

$

$

Currently unavailable

22

MTD 1756272

SHAFT-FAN 3/4"

$

$

Not available

23

MTD 1756275

FRAME-MOUNTING

$

$

Not available

24

MTD 1756273

FLANGETTE-OUTER

$

$

Not available

25

MTD 1756274

FLANGETTE-INNER

$

$

Not available

26

Troy-Bilt 1800418

BEARING

$

$

Not available

27

MTD 1756199

SHEAVE-FAN

$

$

Not available

28

Troy-Bilt 1104335

KEY-.188 SQ X 2.0
(Superseded to 714-0139)

$9.49

$

Usually ships in 3-6 days

0

29

Troy-Bilt 1108852

KEY-.187 SQ X .75

$

$

Not available

30

MTD 1756485

DECAL-DANGER

$

$

Not available

31

Troy-Bilt 1756484

DECAL-DANGER

$

$

Currently unavailable

32

Troy-Bilt 1756483

DECAL (MT FRAME)

$

$

Currently unavailable

35

Troy-Bilt 1708550

WASHER-THRUST

$

$

Not available

36

Troy-Bilt 1110107

NUT-H/LK 5/16-18
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

37

Troy-Bilt 1186258

NUT-HEX JAM 5/16-18
(Superseded to 712-3007)

$6.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 1186331

SCR-HFLK 5/16-18X1.00 ZP
(Superseded to 710-04048)

$4.99

$

In Stock, Qty 7

0

39

Troy-Bilt 1100078

SCR-HH 5/16-18X.875 G5 ZP
(Superseded to 710-3038)

$4.99

$

In Stock, only 3 left!

0

40

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

In Stock, Qty 20+

0

41

MTD 1756683

SCR-HH 5/16-18X2.75

$

$

Not available

42

MTD 1756685

ASSM-BRKT

$

$

Not available

43

MTD 1756686

BRKT-ADJUSTMENT

$

$

Not available

44

MTD 1758224001

SUPPORT

$

$

Not available

45

Troy-Bilt 1186100

SCR-CARR 5/16-18X1.0 G2 ZP

$

$

Not available

46

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 1713233

WASHER-1.25X.343X.059
(Superseded to 736-0362)

$4.49

$

In Stock, only 4 left!

0

48

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 5

0

49

MTD 1765657

SCR-HH 7/16-14X2.00

$

$

Not available

50

Troy-Bilt 1813099

STRIP-WEAR

$

$

Currently unavailable

51

MTD 1709652

NUT-WING

$

$

Not available

52

Troy-Bilt 1100254

WASHER-.75X.312X.065 ZP
(Superseded to 936-0159)

$

$

Not available

?101

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
