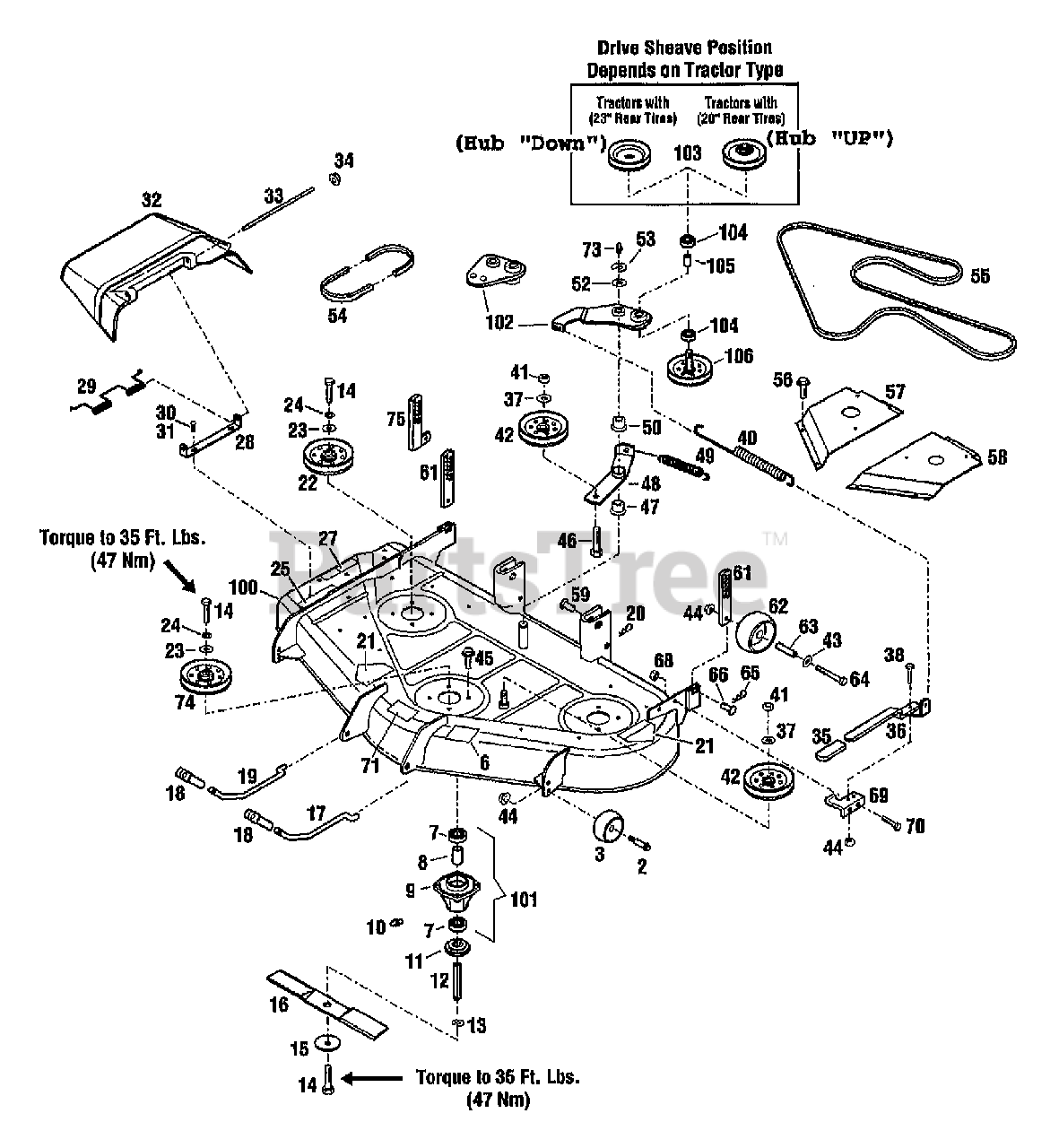

14052 - Troy-Bilt 48" Side-Discharge Mower Deck (SN: 140520100101 & Above) MOWER ATTACHMENTS Parts Diagram

48" Side-Discharge Mower Deck

MOWER ATTACHMENTS Parts Diagram

  • Title

2

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 1762138

WHEEL-GAGE

$24.99

$

In Stock, only 1 left!

0

6

MTD 1757419

DECAL-BELT DRIVE

$

$

Not available

7

Troy-Bilt 1185574

BEARING-BALL
(Superseded to 1185574P)

$34.99

$

In Stock, Qty 11

0

8

Troy-Bilt 1746869

SPACER

$19.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 1765092

HOUSING-SPINDLE
(Superseded to 1769048099)

$175.99

$

In Stock, Qty 12

0

10

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

11

Troy-Bilt 1765029

SPACER-BLADE

$13.99

$

In Stock, Qty 10

0

12

Troy-Bilt 1765028

SHAFT-SPINDLE

$123.99

$

In Stock, only 1 left!

0

13

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

14

Troy-Bilt 1765196

SCR-HH 1/2-14X1.00

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 1765197

WASHER-BELLEVILLE

$26.99

$

In Stock, only 4 left!

0

16

Troy-Bilt 1765542

BLADE-CUTTER {14051}

$49.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 1765548

BLADE-CUTTER {14052}

$38.99

$

In Stock, only 3 left!

0

16

Troy-Bilt 1772170

BLADE-LIFT {14051}

$45.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 1772171

BLADE-LIFT {14052}

$

$

Not available

17

MTD 1766052

ROD-LIFT FRONT LH

$

$

Not available

18

Troy-Bilt 1752554

ROD-END

$64.99

$

Usually ships in 3-6 days

0

19

MTD 1766051

ROD-LIFT FRONT RH

$

$

Not available

20

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

21

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1765209

SHEAVE

$

$

Not available

23

MTD 1100265

WASHER-1.25X.5X.083 ZP

$

$

Not available

24

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

25

MTD 1744491

DECAL-CUTTING LINE

$

$

Not available

27

MTD 1763407

DECAL-DANGER

$

$

Not available

28

Troy-Bilt 1728005001

BRKT-HINGE

$

$

Not available

29

Troy-Bilt 1756596

SPRING-TORSION

$

$

Not available

30

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

32

MTD 1755750

DEFLECTOR-DISCHARGE

$

$

Not available

33

Troy-Bilt 1756760

ROD

$

$

Not available

34

Troy-Bilt 1724791

NUT-PUSH 3/8 ZP
(Superseded to 926-0100)

$

$

Not available

35

MTD 1734591

GRIP

$

$

Not available

36

MTD 1768752

ARM-SPRING ENGAGE {14051/052}

$

$

Not available

36

MTD 1771864

ARM-SPRING ENGAGEMENT {14051/052}

$

$

Not available

37

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06 ZP
(Superseded to GW-20546)

$

$

Not available

38

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 1767862

SPRING-BELT DRIVE {14051/052}

$75.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 1771806

SPRING-EXTENSION 20.75 {14051/052}

$

$

Not available

41

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 9

0

42

Troy-Bilt 1752354

PULLEY-IDLER

$84.99

$

In Stock, only 1 left!

0

43

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

45

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

46

MTD 1768878

BOLT-CARR 1/2-13X1-3/4

$

$

Not available

47

Troy-Bilt 1766091

BUSHING-FLANGE

$18.99

$

Usually ships in 3-6 days

0

48

MTD 1767823

ARM-IDLER

$

$

Not available

49

Troy-Bilt 1768823

SPRING-EXTENSION
(Superseded to 1771982)

$

$

Not available

49

Troy-Bilt 1771982

SPRING-EXTENSION

$

$

Not available

50

Troy-Bilt 1761999

BEARING-FLANGE

$19.99

$

Usually ships in 3-6 days

0

52

MTD 1762144

SHIM-WASHER

$

$

Not available

53

Troy-Bilt 1180025

RING-RET. EXT .875 ID
(Superseded to 716-0111)

$6.99

$

In Stock, only 4 left!

0

54

Troy-Bilt 1772984

BELT-V

$34.99

$

In Stock, only 1 left!

0

55

Troy-Bilt 1760959

BELT-V {14051}

$55.99

$

In Stock, only 1 left!

0

55

Troy-Bilt 1760960

BELT-V {14052}

$100.99

$

Usually ships in 3-6 days

0

56

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP

$

$

Not available

57

Troy-Bilt 1765729001

COVER-BELT RH {14051}

$

$

Currently unavailable

57

MTD 1765659001

COVER-BELT RH {14052}

$

$

Not available

58

MTD 1768750001

COVER-BELT LH {14051}

$

$

Not available

58

MTD 1762102001

COVER-BELT LH {14052}

$

$

Not available

59

MTD 1719367

PIN-CLEVIS .625X2.25

$

$

Not available

61

Troy-Bilt 1766189001

LEVER-GAGE WHEEL ADJUST {14051/052}

$

$

Not available

61

Troy-Bilt 1766189001

LEVER-GAGE WHEEL ADJUST {14052}

$

$

Not available

62

Troy-Bilt 1766087

WHEEL-GAGE
(Superseded to 753-04856A)

$20.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 1766342

SPACER-GAGE WHEEL

$

$

Not available

64

Troy-Bilt 1111615

SCR-HH 3/8-16X3.5 G5 ZP
(Superseded to 710-3085)

$4.49

$

In Stock, Qty 20+

0

65

Troy-Bilt 1703011

CLIP-HAIRPIN .07 DIA
(Superseded to 914-0145)

$4.99

$

In Stock, Qty 20+

0

66

Troy-Bilt 1112587

PIN-CLEVIS .375 X .937 ZP

$4.99

$

Usually ships in 3-6 days

0

68

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

69

MTD 1767999

BRKT-MOUNTING SPRING ARM {14052}

$

$

Not available

69

MTD 1768761

BRKT-MOUNTING SPRING ARM {14052}

$

$

Not available

69

MTD 1771858

BRKT-SPRING ARM MOUNTING {14051/052}

$

$

Not available

70

Troy-Bilt 1186329

SCR-HFLK 5/16-18X.75 ZP
(Superseded to 710-04043)

$4.49

$

Usually ships in 3-6 days

0

71

Troy-Bilt 1768862

DECAL-LIFT ROD

$

$

Currently unavailable

73

Troy-Bilt 1731504

FITTING-GREASE 90 DEGREE
(Superseded to 737-3004)

$11.99

$

In Stock, Qty 6

0

74

MTD 1771869

ASSM-SHEAVE 5"

$

$

Not available

75

Troy-Bilt 1771560001

BAR-GAGE WHEEL {14051}

$

$

Currently unavailable

75

Troy-Bilt 1771560001

BAR-GAGE WHEEL {14052}

$

$

Currently unavailable

100

Troy-Bilt 1767751

DECK-MOWER W/DECALS {14051}

$

$

Currently unavailable

100

Troy-Bilt 1767752

DECK-MOWER W/DECALS {14052}

$

$

Currently unavailable

100

Troy-Bilt 1771933

ASSM-MOWER BASE 42"S/D W/DECAL {14051}

$

$

Currently unavailable

100

Troy-Bilt 1771934

ASSM-MOWER BASE 42"S/D W/DECAL {14052}

$

$

Currently unavailable

101

Troy-Bilt 1769048

ASSM-MOWER SPINDLE
(Superseded to 1769048099)

$175.99

$

In Stock, Qty 12

0

102

Troy-Bilt 1766134001

ARM-MOUNTING {14051/052}

$

$

Currently unavailable

102

Troy-Bilt 1772627001

WELDMENT ASSM-MTG ARM {14051/052}

$151.99

$

Usually ships in 3-6 days

0

103

MTD 1766128

PULLEY-DRIVE

$

$

Not available

104

Troy-Bilt 1185064

BEARING-BALL
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

105

MTD 1767804

SPACER-1.04X.875X1.07

$

$

Not available

106

Troy-Bilt 1766137

PULLEY W/SHAFT

$

$

Not available

?200

Troy-Bilt 1735222

TROY-BILT/BOLENS BLACK PAINT, 13 OZ.
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
