1405 (13A-145F100) - Cub Cadet Garden Tractor 14 HP Engine Assembly Parts Diagram

Garden Tractor

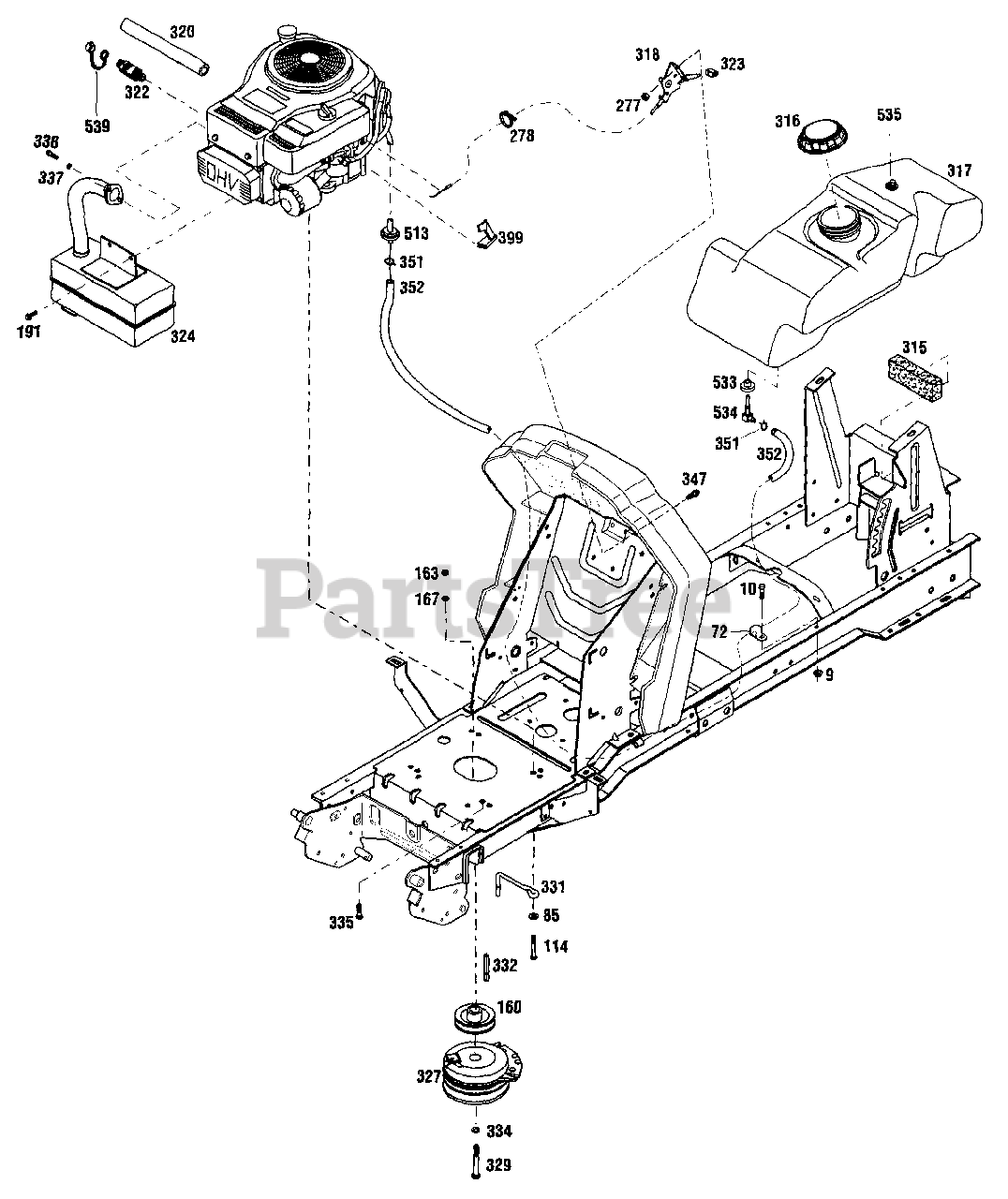

14 HP Engine Assembly Parts Diagram

  • Title

9

Cub Cadet 1186391

Flange Nut, 5/16-18
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 1100044

Hex Head Screw, 5/16-18 x 3/4
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

72

Cub Cadet 1807450

Clip

$

$

Not available

85

Cub Cadet 1107383

Flat Washer, 3/8
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

114

Cub Cadet 1768194

Hex Head Screw, 3/8-16 x 1-1/2
(Superseded to 710-1007)

$6.49

$

Usually ships in 3-6 days

0

160

Cub Cadet 1772330

Engine Sheave

$

$

Not available

163

Cub Cadet 1186231

Hex Nut, 3/6-16
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

167

Cub Cadet 1100243

Lockwasher 3/8
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

191

Cub Cadet 1754128

Flange Screw, 1/4-20 x 3/4

$3.99

$

In Stock, only 2 left!

0

277

Cub Cadet 1185985

Keps Locknut, 10-24
(Superseded to 712-0272)

$3.99

$

Usually ships in 3-6 days

0

278

Cub Cadet 1735531

Cable Tie
(Superseded to 725-0157)

$3.99

$

In Stock, Qty 20+

0

315

Cub Cadet 1766341

Fuel Tank Pad

$

$

Not available

316

Cub Cadet 1766188

Fuel Cap

$

$

Not available

317

Cub Cadet 1772814

Fuel Tank

Note: (Incl. Refs. 533, 534 & 535)

$

$

Not available

318

Cub Cadet 1772884

Throttle Choke Control

$

$

Currently unavailable

320

Cub Cadet 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 7

0

322

Cub Cadet 1768865

Oil Valve Assembly
(Superseded to 951-10517A)

Note: (Incl. Ref. 539)

$24.99

$

In Stock, only 1 left!

0

323

Cub Cadet 1766121

Control Knob

$

$

Not available

324

Cub Cadet 1772810

Muffler

$

$

Not available

327

Cub Cadet 1772388

Electric Clutch
(Superseded to 917-1459)

$547.99

$

Usually ships in 3-6 days

0

329

Cub Cadet 1744454

Hex Head Screw, 7/16-20 x 3
(Superseded to 710-0510)

$11.99

$

In Stock, only 1 left!

0

331

Cub Cadet 1772385

Clutch Retainer

$

$

Not available

332

Cub Cadet 1104337

Square Key, 1/4 x 1-1/2
(Superseded to 714-0118)

$6.99

$

In Stock, only 4 left!

0

334

Cub Cadet 1100244

Spring Lock Washer, 7/16
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 5

0

335

Cub Cadet 1762042

Hex Head Screw, 3/8-16 x 1

$

$

Not available

337

Cub Cadet 1185140

Special Lock Washer
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

338

Cub Cadet 1747993

Screw, 5/16-18 x 3/4
(Superseded to 710-1177)

$

$

Not available

347

Cub Cadet 1773576

Machine Screw, 10-24 x 3/4

$

$

Not available

351

Cub Cadet 1750687

Hose Clamp
(Superseded to 726-0205)

$3.99

$

In Stock, Qty 20+

0

352

Cub Cadet 1724061

Fuel Line

$

$

Currently unavailable

399

Cub Cadet 1764005

Clip

$

$

Not available

513

Cub Cadet 1727491

Fuel Filter
(Superseded to BS-298090S)

$

$

Not available

533

Cub Cadet 1738433

Bushing
(Superseded to 935-0149)

$2.99

$

In Stock, Qty 20+

0

534

Cub Cadet 1751477

Fuel Tank Elbow
(Superseded to 951-0171)

$20.99

$

In Stock, Qty 20+

0

535

Cub Cadet 1768804

Fuel Tank Vent
(Superseded to 737-0296)

$12.99

$

Usually ships in 3-6 days

0

539

Cub Cadet 1766326

Oil Drain Cap

$

$

Not available
