14049 - Troy-Bilt 38" Mulching Mower Deck (SN: 140490100101 & Above) KIT 1770821 Parts Diagram

38" Mulching Mower Deck

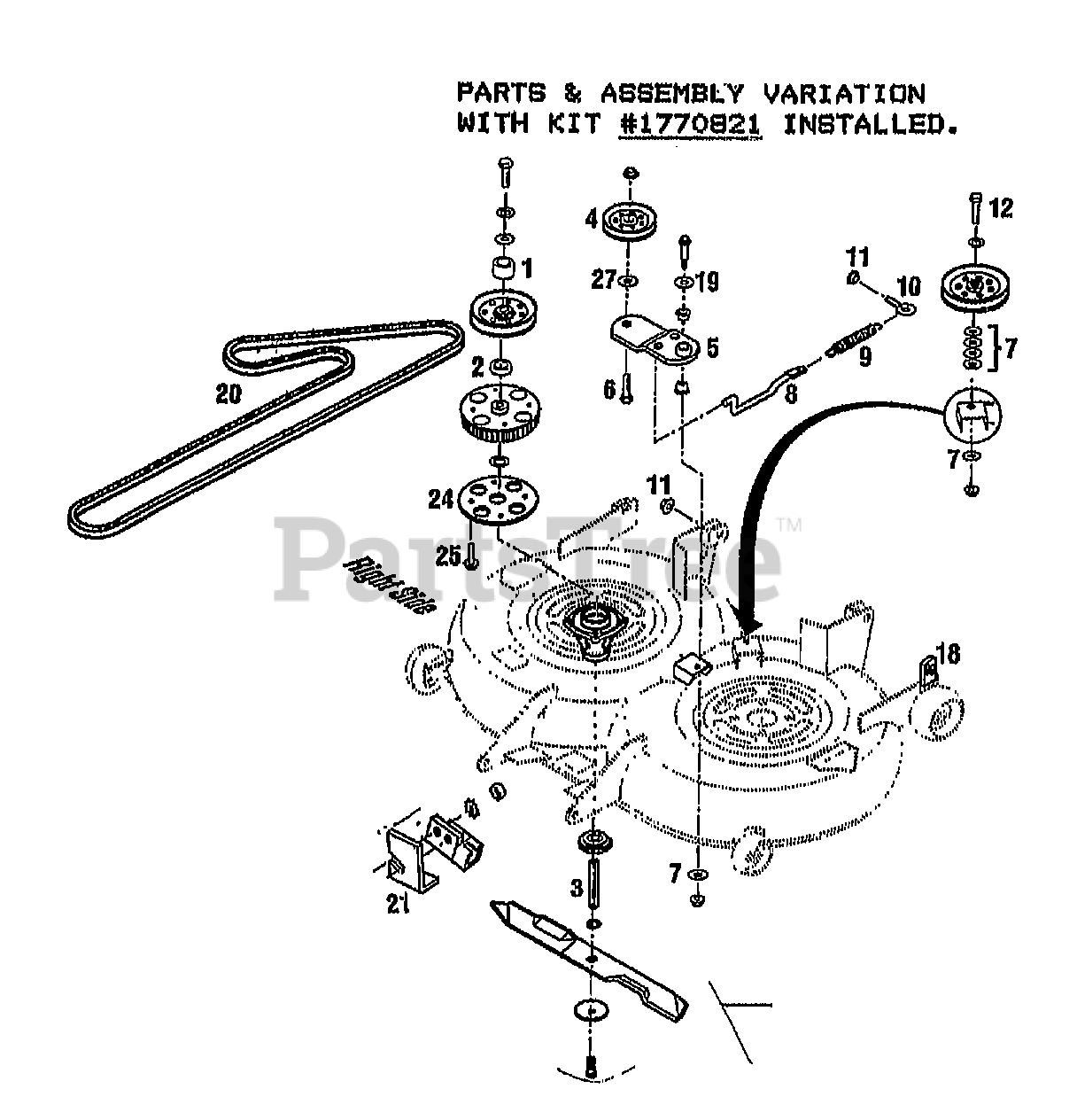

KIT 1770821 Parts Diagram

  • Title

Troy-Bilt 1770821

KIT-38" MULCHING

$

$

Currently unavailable

1

MTD 1770961

SPACER-1.25X.77X.88

$

$

Not available

2

MTD 1768859

SPACER-1.25X.76X.50

$

$

Not available

3

Troy-Bilt 1770962

SHAFT-LONG SPINDLE (RH)

$

$

Not available

4

MTD 1764001

PULLEY-IDLER

$

$

Not available

5

Troy-Bilt 1770963

ASSM-IDLER ARM

$

$

Currently unavailable

6

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 1763355

WASHER-1.5X.375X.18 ZP
(Superseded to 936-0227)

$

$

Not available

8

MTD 1770960

ROD-IDLER

$

$

Not available

9

MTD 1765899

SPRING

$

$

Not available

10

MTD 1739796

BOLT-EYE SC

$

$

Not available

11

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 1100062

SCR-HH 3/8-16X2.50

$

$

Not available

?13

Troy-Bilt 1111616

SCR-HH 3/8-16X4.00

$

$

Currently unavailable

?14

Troy-Bilt 1770957001

PLATE-SUPPORT BLACK

$

$

Currently unavailable

?15

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

?16

MTD 1770959

PLATE-SUPPORT

$

$

Not available

?17

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

18

Troy-Bilt 1766189001

LEVER-GAGE WHEEL ADJUST

$

$

Not available

19

UNKNOWN

$

$

Not available

20

$37.99

$

Usually ships in 3-6 days

0

21

MTD 1771758

BRACKET-SWITCH

$

$

Not available

24

Troy-Bilt 1771922

PLATE-SPROCKET
(Superseded to 1771922001)

$

$

Not available

25

Troy-Bilt 1771925

SCR 1/4-20.75 TRI-PLASK
(Superseded to 710-04065)

$6.49

$

In Stock, Qty 20+

0

?26

Troy-Bilt 1757032

LOCTITE-242 (.5 ML TUBE)
(Superseded to GW-97092)

$17.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 1100256

WASHER-.986X.437X.083 ZP
(Superseded to 736-3052)

$4.49

$

In Stock, Qty 20+

0
