14039 - Troy-Bilt 38" Single-Stage Snow Thrower Attachment (SN: 140390100101 & Above) 38" SINGLE-STAGE SNOWTHROWER (1) Parts Diagram

38" Single-Stage Snow Thrower Attachment

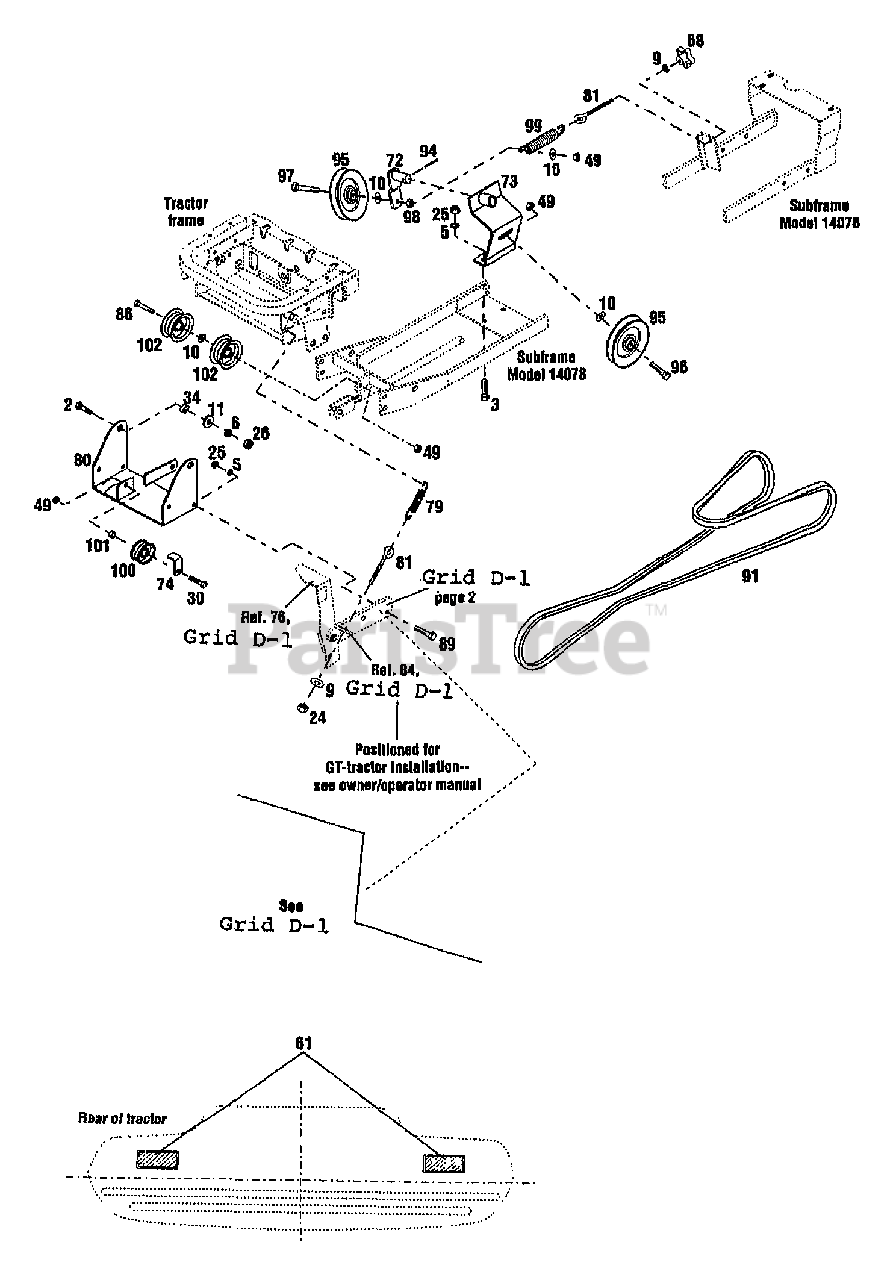

38" SINGLE-STAGE SNOWTHROWER (1) Parts Diagram

  • Title

2

Troy-Bilt 1100064

SCR-HH 1/2-13X1.5 G5 ZP
(Superseded to 710-3181)

$6.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 15

0

5

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

9

Troy-Bilt 1107382

WASHER-FLAT 5/16 SAE
(Superseded to 936-0275)

$

$

Not available

10

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

11

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

24

Troy-Bilt 1186230

NUT-HEX 5/16-18 ZP
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 1186231

NUT-HEX 3/8-16 ZP
(Superseded to 912-3017)

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 1186233

NUT-HEX JAM 1/2-13
(Superseded to 912-0206)

$4.49

$

In Stock, Qty 20+

0

30

MTD 1186351

SCR

$

$

Not available

34

MTD 1730681

SPACER-TUBULAR

$

$

Not available

49

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

61

Troy-Bilt 1751434

REFLECTOR

$

$

Currently unavailable

68

MTD 1763767

KNOB

$

$

Not available

72

Troy-Bilt 1768812

BRACKET-IDLER ARM

$

$

Currently unavailable

73

Troy-Bilt 1768816

ASSM-PLATE IDLER

$

$

Currently unavailable

74

MTD 1768822001

GUIDE-BELT

$

$

Not available

79

MTD 1768841

SPRING-EXTENSION

$

$

Not available

80

MTD 1768844001

BRKT-PIVOT

$

$

Not available

81

MTD 1768845

BOLT-EYE

$

$

Not available

86

Troy-Bilt 1110644

SCR-HHC 3/8-16X3.25
(Superseded to 1911403)

$

$

Not available

89

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 20+

0

91

MTD 1754778

BELT-V

$

$

Not available

94

MTD 1104220

PIN-COTTER

$

$

Not available

95

Troy-Bilt 1749911

PULLEY

$

$

Not available

96

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

97

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 20+

0

98

MTD 1186259

NUT-HEX/JAM 3/8-16

$

$

Not available

99

MTD 1714515

SPRING

$

$

Not available

100

MTD 1729440

PULLEY-IDLER

$

$

Not available

101

MTD 1716778

SPACER

$

$

Not available

102

MTD 1767964

PULLEY-IDLER 2" DIA

$

$

Not available

?200

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
