14038-02 - Troy-Bilt 29" Tiller Attachment (SN: 140380200101 & Above) TRANSMISSION ASSEMBLY Parts Diagram

29" Tiller Attachment

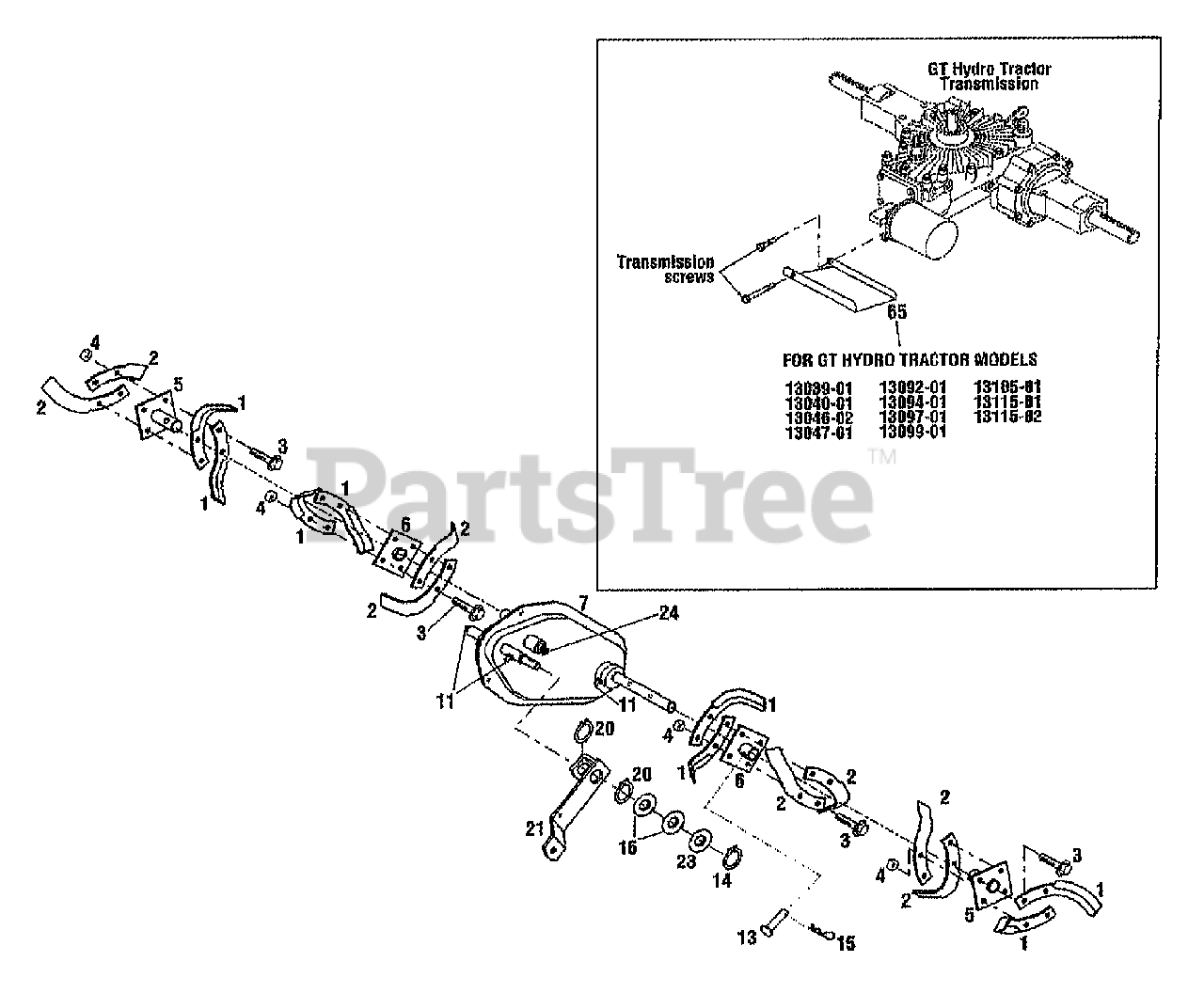

TRANSMISSION ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 1270-1

TINE-LH

$

$

Currently unavailable

2

Troy-Bilt 1270-2

TINE-RH

$

$

Currently unavailable

3

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 1110108

NUT-H/LK 3/8-16
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

5

MTD 1767940

ASSM-OUTER HUB

$

$

Not available

6

MTD 1767937

ASSM-INNER HUB

$

$

Not available

7

Troy-Bilt 1767910

ASSM-TRANSMISSION

$

$

Currently unavailable

?8

Troy-Bilt 1817046

PIN-PIVOT
(Superseded to 911-0415)

$4.99

$

In Stock, Qty 20+

0

?9

MTD 1817091

PIN-HITCH

$

$

Not available

11

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

13

Troy-Bilt 1817046

PIN-PIVOT
(Superseded to 911-0415)

$4.99

$

In Stock, Qty 20+

0

14

MTD 1185668

RING-HEAVY EXT .625 ID

$

$

Not available

15

MTD 1817091

PIN-HITCH

$

$

Not available

16

Troy-Bilt 1715301

WASHER-1.115X.637X.06

$9.99

$

Usually ships in 3-6 days

0

20

MTD 1736561

RING-SNAP

$

$

Not available

21

Troy-Bilt 1773199

ARM-IDLER

$

$

Currently unavailable

23

MTD 1712763

WASHER

$

$

Not available

24

Troy-Bilt 1731504

FITTING-GREASE 90 DEGREE
(Superseded to 737-3004)

$11.99

$

In Stock, Qty 6

0

65

MTD 1768877001

SHIELD

$

$

Not available

?200

Troy-Bilt 1901118

TINES-BOLO HORSE/PONY/ECONO
(Superseded to 1901118A)

$

$

Not available

?201

Troy-Bilt 10802

TINES-CUSTOM TILLING
(Superseded to GW-10802)

$

$

Not available

?301

Troy-Bilt 1735222

PAINT - BLACK
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
