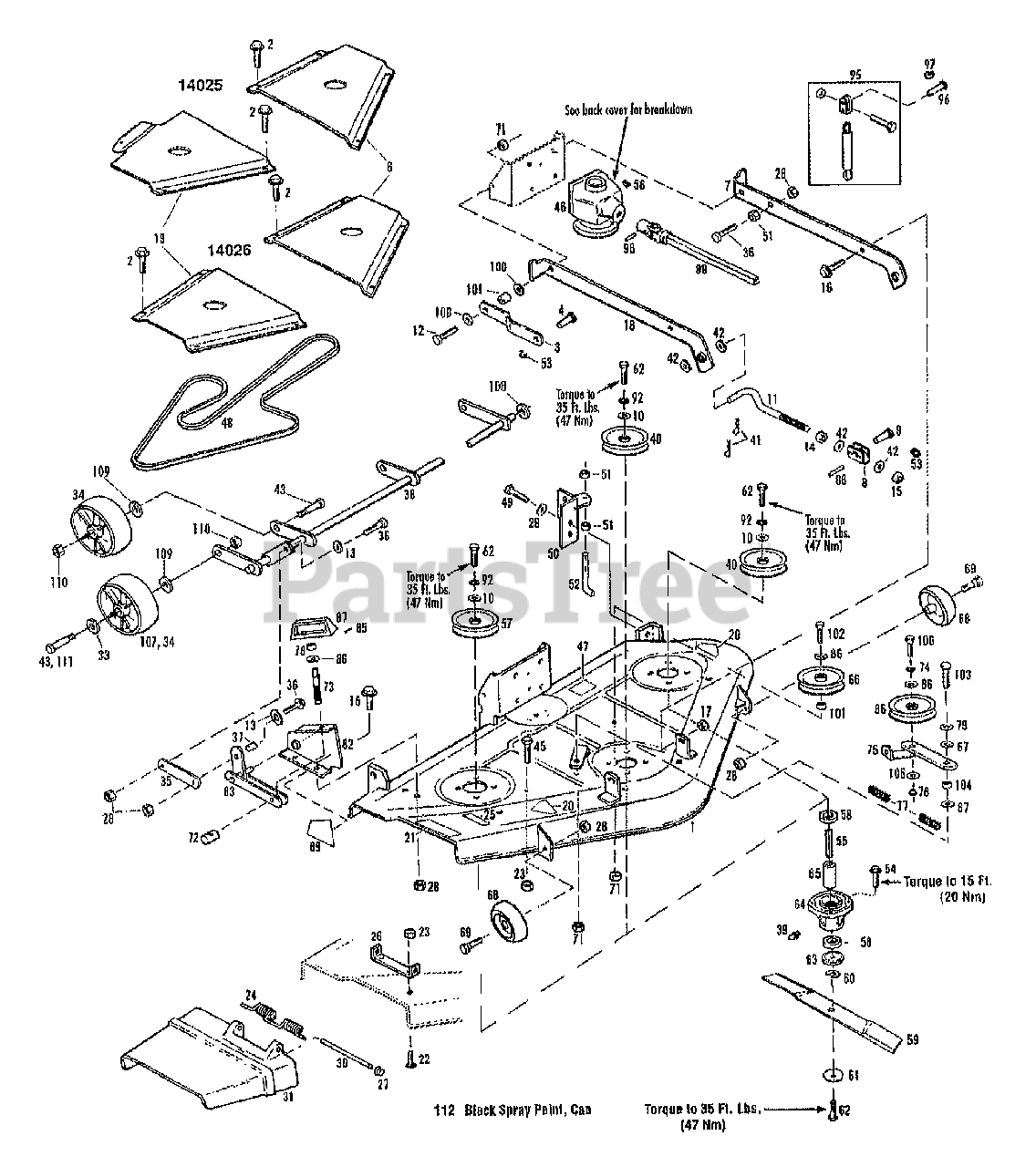

14026 - Troy-Bilt 48" Side-Discharge Mower Deck (SN: 140261199999 & Above) MOWER ATTACHMENT Parts Diagram

48" Side-Discharge Mower Deck

MOWER ATTACHMENT Parts Diagram

  • Title
1

Troy-Bilt 1772665

BASE-MOWER 42" SD W/DECALS {14025}

$

$

Currently unavailable

1

Troy-Bilt 1772666

BASE-MOWER 48" SD W/DECALS {14026}

$

$

Currently unavailable

2

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP

$

$

Not available

3

MTD 1746169001

LINK-DRAG

$

$

Not available

4

Troy-Bilt 1752309

PIN-CLEVIS .625X1.44
(Superseded to 711-0654)

$16.99

$

Usually ships in 3-6 days

0

6

MTD 1762216001

COVER-BELT LH {14025}

$

$

Not available

6

MTD 1762137001

COVER-BELT LH {14026}

$

$

Not available

7

MTD 1764838001

SUPPORT-DECK LH

$

$

Not available

8

MTD 1746171001

BRKT-HITCH

$

$

Not available

9

Troy-Bilt 1752308

PIN-CLEVIS .62X2.50 ZP
(Superseded to 711-1626)

$43.99

$

Usually ships in 3-6 days

0

10

MTD 1100265

WASHER-1.25X.5X.083 ZP

$

$

Not available

11

Troy-Bilt 1746170

LINK-HITCH

$

$

Currently unavailable

12

MTD 1100065

SCR-HH 1/2-13X1.75 G5 ZP

$

$

Not available

13

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

14

Troy-Bilt 1186236

NUT
(Superseded to 712-0301)

$7.99

$

In Stock, only 1 left!

0

15

MTD 1120390

NUT-H/LK 3/4-10

$

$

Not available

16

Troy-Bilt 1186347

SCR-HFLK 3/8-16X1.00 ZP
(Superseded to 710-04042)

$4.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 1186393

NUT-HFLK 3/8-16 ZP

$3.49

$

In Stock, only 2 left!

0

18

MTD 1764839001

SUPPORT-DECK RH

$

$

Not available

19

Troy-Bilt 1765729001

COVER-BELT RH {14025}

$

$

Currently unavailable

19

MTD 1765659001

COVER-BELT RH {14026}

$

$

Not available

20

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

21

MTD 1763407

DECAL-DANGER

$

$

Not available

22

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

24

Troy-Bilt 1756596

SPRING-TORSION

$

$

Not available

25

MTD 1744491

DECAL-CUTTING LINE

$

$

Not available

?26

$

$

Not available

27

Troy-Bilt 1724791

NUT-PUSH 3/8 ZP
(Superseded to 926-0100)

$

$

Not available

28

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

29

Troy-Bilt 1891733

WASHER-1.12X.378X.125
(Superseded to 936-0206)

$4.49

$

In Stock, only 4 left!

0

$

$

Not available

31

MTD 1755750

DEFLECTOR-DISCHARGE

$

$

Not available

?32

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP {14025}
(Superseded to 936-0326)

$4.49

$

In Stock, only 2 left!

0

33

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP {14026}
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 1743891

GAUGE-WHEEL {1405}
(Superseded to 734-04005)

$

$

Not available

34

Troy-Bilt 1743891

GAUGE-WHEEL {14026}
(Superseded to 734-04005)

$

$

Not available

35

MTD 1764633001

LINK-CONNECTING {14025}

$

$

Not available

35

MTD 1767666001

LINK-CONNECTING {14026}

$

$

Not available

36

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 5

0

37

MTD 1738160

SPACER-.625X.39X.343

$

$

Not available

38

Troy-Bilt 1772740001

PIVOT SHAFT ASSY

$

$

Currently unavailable

38

MTD 1772751001

PIVOT SHAFT ASSY.

$

$

Not available

39

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

40

Troy-Bilt 1171870

SHEAVE ASSY.

$

$

Currently unavailable

41

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

42

Troy-Bilt 1185830

WASHER-1.38 X.765X .06 ZP
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

43

MTD 1772735

SHOULDER BOLT

$

$

Not available

45

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

46

Troy-Bilt 1744918001

ASSM-GEAR CASE

$

$

Currently unavailable

47

MTD 1757419

DECAL-BELT DRIVE

$

$

Not available

48

Troy-Bilt 1754702

BELT {14025}

$138.99

$

In Stock, only 1 left!

0

48

Troy-Bilt 1750842

BELT-V {14026}

$73.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

50

MTD 1748097001

SUPPORT-SHAFT

$

$

Not available

51

Troy-Bilt 1185506

NUT-HEX/JAM 3/8-16 ZP
(Superseded to 712-0375)

$4.49

$

In Stock, Qty 6

0

52

MTD 1742328

BOLT-HOOK

$

$

Not available

53

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$4.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 1765028

SHAFT-SPINDLE

$123.99

$

In Stock, only 1 left!

0

?56

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

57

Troy-Bilt 1765210

ASSM-SHEAVE DRIVE

$

$

Currently unavailable

58

Troy-Bilt 1185574

BEARING-BALL
(Superseded to 1185574P)

$34.99

$

In Stock, Qty 11

0

59

Troy-Bilt 1772170

BLADE-LIFT {14025}

$45.99

$

Usually ships in 3-6 days

0

59

Troy-Bilt 1772171

BLADE-LIFT {14026}

$

$

Not available

60

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

61

Troy-Bilt 1765197

WASHER-BELLEVILLE

$26.99

$

In Stock, only 4 left!

0

62

Troy-Bilt 1765196

SCR-HH 1/2-14X1.00

$3.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 1765029

SPACER-BLADE

$13.99

$

In Stock, Qty 10

0

64

Troy-Bilt 1765092

HOUSING-SPINDLE
(Superseded to 1769048099)

$175.99

$

In Stock, Qty 12

0

65

$19.99

$

In Stock, only 2 left!

0

66

Troy-Bilt 1752354

PULLEY-IDLER

$84.99

$

In Stock, only 1 left!

0

67

MTD 1724929

WASHER

$

$

Not available

68

Troy-Bilt 1762138

WHEEL-GAGE

$24.99

$

In Stock, only 1 left!

0

69

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

71

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

72

MTD 1762882

PIVOT-ADJUSTING SCR

$

$

Not available

73

MTD 1761847

ROD-ADJUSTING

$

$

Not available

74

Troy-Bilt 1100245

WASHER-LK .5
(Superseded to 936-0921)

$4.49

$

In Stock, Qty 6

0

75

MTD 1752355

ARM-IDLER {14025}

$

$

Not available

75

MTD 1724923

ARM-IDLER {14026}

$

$

Not available

?76

MTD 1724924

BUTTON-WEAR

$

$

Not available

77

$16.99

$

Usually ships in 3-6 days

0

78

Troy-Bilt 1762886

SPACER-HANDLE

$

$

Not available

79

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 2 left!

0

82

Troy-Bilt 1767662001

ASSM-ADJ BRKT

$

$

Currently unavailable

83

Troy-Bilt 1767664001

ASSM-ADJ ARM

$

$

Currently unavailable

85

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

86

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06 ZP
(Superseded to GW-20546)

$

$

Not available

87

MTD 1754149

HANDLE-HEIGHT ADJ

$

$

Not available

88

Troy-Bilt 1185597

PIN-DRIVE
(Superseded to 715-0150)

$4.49

$

In Stock, Qty 12

0

89

MTD 1764635

DECAL-HEIGHT ADJUST

$

$

Not available

92

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, Qty 5

0

95

MTD 1754243

KIT-CHAIN

$

$

Not available

96

Troy-Bilt 1708126

PIN-CLEVIS
(Superseded to 711-04722)

$6.99

$

In Stock, only 3 left!

0

97

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

?98

MTD 1185376

PIN-DRIVE

$

$

Not available

99

Troy-Bilt 1760050001

ASSM-DRIVESHAFT

$

$

Currently unavailable

100

Troy-Bilt 1100257

WASHER-1/2 FLAT

$

$

Not available

101

MTD 1730681

SPACER-TUBULAR

$

$

Not available

102

Troy-Bilt 1100067

SCR-HH 1/2-13X2.0 G5 ZP

$

$

Not available

103

Troy-Bilt 1100064

SCR-HH 1/2-13X1.5 G5 ZP
(Superseded to 710-3181)

$6.99

$

In Stock, only 1 left!

0

104

MTD 1728030

SLEEVE-BEARING

$

$

Not available

?105

Troy-Bilt 1103959

WASHER-.505X.22X.05

$4.99

$

In Stock, Qty 14

0

106

MTD 1100015

SCR-HH 1/4-20X1.25 G5 ZP

$

$

Not available

107

MTD 1740569

WHEEL-GAGE {14026}

$

$

Not available

108

$

$

Currently unavailable

109

Troy-Bilt 1749937

WASHER-.5 DIA
(Superseded to 936-0456)

$4.99

$

In Stock, Qty 9

0

110

$

$

Not available

111

MTD 1772754

BOLT {14026}

$

$

Not available

112

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0
