14023 - Troy-Bilt 42" Side-Discharge Mower Deck (SN: 140230100101 & Above) 42" S.D. CENTER MOUNT MOWER Parts Diagram

42" Side-Discharge Mower Deck

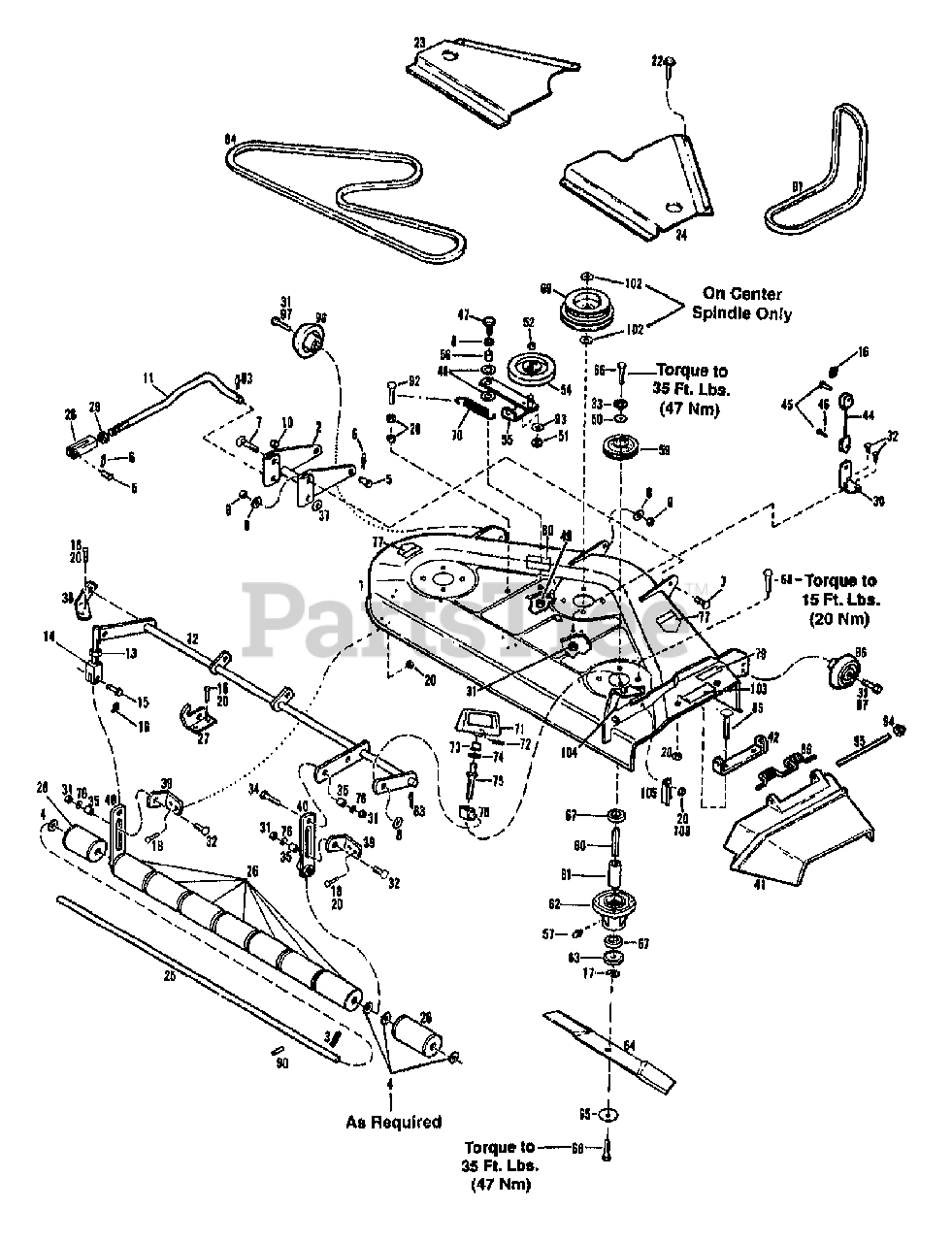

42" S.D. CENTER MOUNT MOWER Parts Diagram

  • Title

1

MTD 1764705

BASE-MOWER W/DECALS

$

$

Not available

2

Troy-Bilt 1752823001

LINK-DRAG

$

$

Currently unavailable

3

Troy-Bilt 1100352

PIN-COTTER .125X1.5

$4.49

$

In Stock, Qty 7

0

4

Troy-Bilt 1185830

WASHER-1.38 X.765X .06 ZP
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 1752309

PIN-CLEVIS .625X1.44
(Superseded to 711-0654)

$16.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$4.49

$

Usually ships in 3-6 days

0

7

MTD 1186184

BOLT-CAR 1/2-13X1-3/4

$

$

Not available

8

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

9

MTD 1185496

NUT

$

$

Not available

10

Troy-Bilt 1728121

BEARING-SLEEVE

$

$

Not available

11

MTD 1728084

ROD-TIE

$

$

Not available

12

Troy-Bilt 1764375001

SHAFT-LIFT ADJUST

$

$

Currently unavailable

13

Troy-Bilt 1186249

NUT-HEX/JAM 5/8-18 ZP
(Superseded to 712-3056)

$4.99

$

In Stock, only 3 left!

0

14

MTD 1731772

ROD-END

$

$

Not available

15

Troy-Bilt 1890227

PIN-CLEVIS

$

$

Not available

16

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

18

Troy-Bilt 1186098

SCR-CARR 5/16-18X.75 G2 ZP

$

$

Not available

20

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

22

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP

$

$

Not available

23

MTD 1728122001

COVER-BELT LH

$

$

Not available

24

Troy-Bilt 1728123001

COVER-BELT RH

$

$

Currently unavailable

25

MTD 1728025

SHAFT-ROLLER

$

$

Not available

26

Troy-Bilt 1765851

ROLLER

$22.99

$

Usually ships in 3-6 days

0

27

MTD 1728646001

ROD-SUPPORT

$

$

Not available

28

Troy-Bilt 1714573

ROD-END

$

$

Not available

29

Troy-Bilt 1186235

NUT-HEX
(Superseded to 912-3015)

$4.99

$

In Stock, only 2 left!

0

30

MTD 1728007001

BRKT-LIFT

$

$

Not available

31

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

32

Troy-Bilt 1186128

SCR-CARR 3/8-16X1.00
(Superseded to 710-3168)

$3.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

34

Troy-Bilt 1100043

SCR-HH 3/8-16X1.25
(Superseded to 710-3005)

$3.99

$

In Stock, Qty 10

0

35

Troy-Bilt 1724017

SPACER-.5X.39X.307

$

$

Currently unavailable

37

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 1728062001

BRKT-ROD ADJUST

$

$

Not available

39

MTD 1728063001

BRKT-ROLLER

$

$

Not available

40

MTD 1728013001

PLATE-ADJUSTMENT

$

$

Not available

41

MTD 1755750

DEFLECTOR-DISCHARGE

$

$

Not available

42

Troy-Bilt 1728005001

BRKT-HINGE

$

$

Not available

44

Troy-Bilt 1728672

CABLE-LIFT
(Superseded to 1728672P)

$

$

Not available

45

Troy-Bilt 1112587

PIN-CLEVIS .375 X .937 ZP

$4.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 1100346

PIN-COTTER .09X.75 ZP
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

47

Troy-Bilt 1100064

SCR-HH 1/2-13X1.5 G5 ZP
(Superseded to 710-3181)

$6.99

$

In Stock, only 1 left!

0

48

MTD 1724929

WASHER

$

$

Not available

49

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 8

0

50

MTD 1100265

WASHER-1.25X.5X.083 ZP

$

$

Not available

51

MTD 1724924

BUTTON-WEAR

$

$

Not available

52

Troy-Bilt 1186247

NUT-JAM
(Superseded to 712-3029)

$6.99

$

In Stock, Qty 6

0

54

Troy-Bilt 1752354

PULLEY-IDLER

$84.99

$

Usually ships in 3-6 days

0

55

MTD 1728020

ASSM-IDLER ARM

$

$

Not available

56

MTD 1728030

SLEEVE-BEARING

$

$

Not available

57

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

59

Troy-Bilt 1765210

ASSM-SHEAVE DRIVE

$

$

Currently unavailable

60

Troy-Bilt 1765028

SHAFT-SPINDLE

$123.99

$

Usually ships in 3-6 days

0

61

Troy-Bilt 1746869

SPACER

$19.99

$

In Stock, only 2 left!

0

62

Troy-Bilt 1765092

HOUSING-SPINDLE
(Superseded to 1769048099)

$175.99

$

Usually ships in 3-6 days

0

63

Troy-Bilt 1765029

SPACER-BLADE

$13.99

$

In Stock, Qty 10

0

64

Troy-Bilt 1765542

BLADE-CUTTER

$49.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 1765197

WASHER-BELLEVILLE

$26.99

$

In Stock, only 4 left!

0

66

Troy-Bilt 1765196

SCR-HH 1/2-14X1.00

$3.99

$

In Stock, Qty 10

0

67

Troy-Bilt 1185574

BEARING-BALL
(Superseded to 1185574P)

$34.99

$

In Stock, Qty 13

0

68

Troy-Bilt 1766984

SCR-HFLK 5/16-18X.75

$3.99

$

Usually ships in 3-6 days

0

69

Troy-Bilt 1765545

SHEAVE-DRIVE

$

$

Currently unavailable

70

Troy-Bilt 1724822

SPRING
(Superseded to 1746769)

$16.99

$

Usually ships in 3-6 days

0

71

MTD 1754149

HANDLE-HEIGHT ADJ

$

$

Not available

72

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

73

Troy-Bilt 1762886

SPACER-HANDLE

$

$

Not available

74

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06 ZP
(Superseded to GW-20546)

$

$

Not available

75

MTD 1761847

ROD-ADJUSTING

$

$

Not available

76

Troy-Bilt 1100255

WASHER-FLAT 5/16 SAE
(Superseded to 736-0262)

$3.99

$

Usually ships in 3-6 days

0

77

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

78

MTD 1764371

BLOCK-PIVOT

$

$

Not available

79

MTD 1744491

DECAL-CUTTING LINE

$

$

Not available

80

Troy-Bilt 1728982

DECAL-BELT DRIVE

$

$

Currently unavailable

83

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

84

Troy-Bilt 1728133

BELT-V

$63.99

$

Usually ships in 3-6 days

0

85

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

89

Troy-Bilt 1756596

SPRING-TORSION

$

$

Not available

90

Troy-Bilt 1185597

PIN-DRIVE
(Superseded to 715-0150)

$4.49

$

In Stock, Qty 17

0

91

Troy-Bilt 1741576

BELT-V

$78.99

$

Usually ships in 3-6 days

0

92

MTD 1100808

SCR-HH 5/16-18X1.25 G5ZP

$

$

Not available

93

Troy-Bilt 1103959

WASHER-.505X.22X.05

$4.99

$

In Stock, Qty 14

0

94

Troy-Bilt 1724791

NUT-PUSH 3/8 ZP
(Superseded to 926-0100)

$

$

Not available

95

Troy-Bilt 1756760

ROD

$

$

Not available

96

Troy-Bilt 1762138

WHEEL-GAGE

$24.99

$

In Stock, only 1 left!

0

97

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

102

Troy-Bilt 1762053

WASHER-KEYED SPECIAL

$

$

Not available

103

MTD 1763407

DECAL-DANGER

$

$

Not available

104

MTD 1762143

DECAL-HEIGHT ADJUST

$

$

Not available

105

MTD 1743726

RETAINER-SHAFT

$

$

Not available

106

MTD 1103195

SCR-HH 5/16-18X.63 G5

$

$

Not available

Troy-Bilt 1765543

BLADE-LIFT
(Superseded to 1772170)

$45.99

$

Usually ships in 3-6 days

0
