14006 - Troy-Bilt 26" Tiller Attachment (SN: 140060100101 & Above) 26" TILLER ATTACHMENT Parts Diagram

26" Tiller Attachment

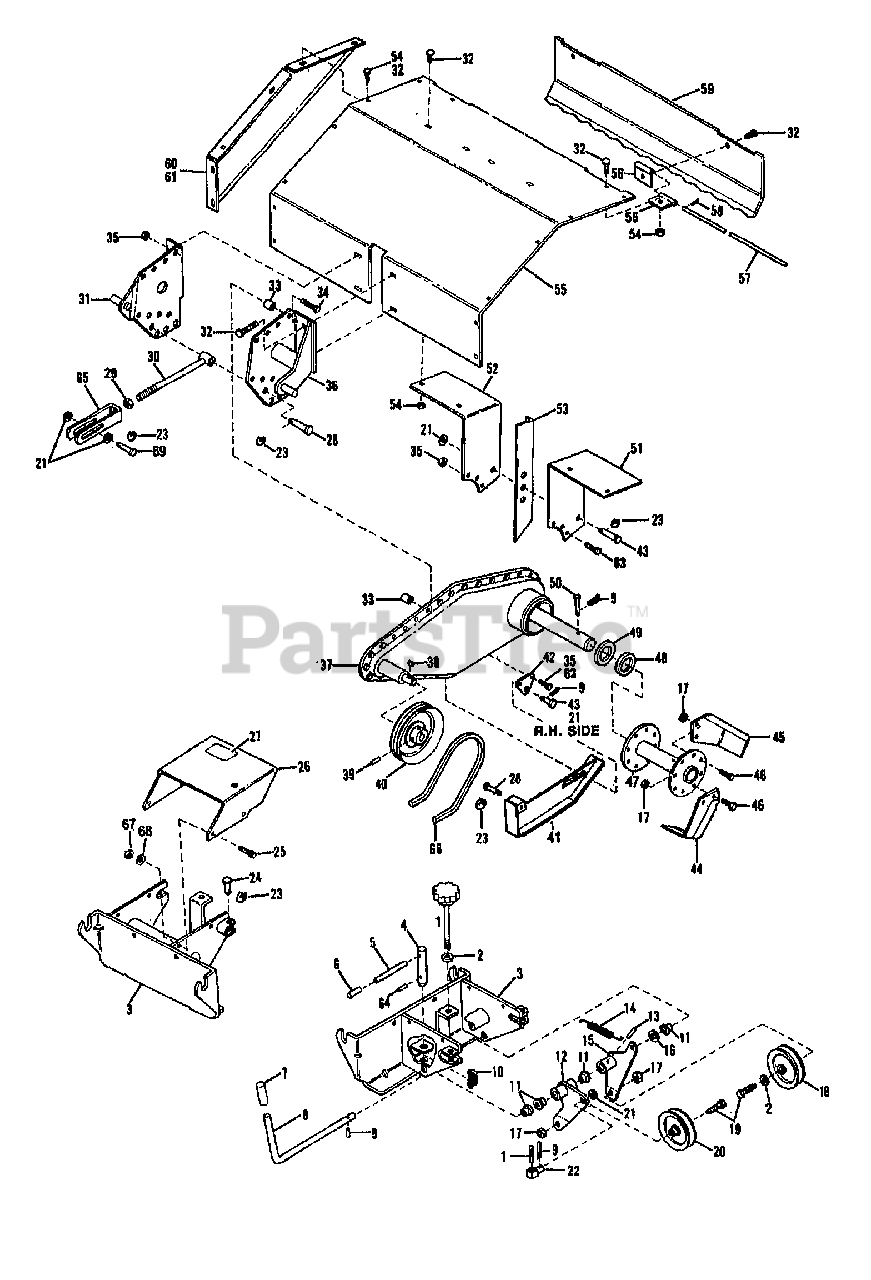

26" TILLER ATTACHMENT Parts Diagram

  • Title

1

Troy-Bilt 1748192

ASSM-KNOB ADJ

$

$

Currently unavailable

2

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

3

Troy-Bilt 1748178001

ASSM-HITCH

$

$

Currently unavailable

4

Troy-Bilt 1748195

PIN-HITCH

$

$

Currently unavailable

5

Troy-Bilt 1185743

PIN-ROLL .312X4.00 ZP

$

$

Currently unavailable

6

Troy-Bilt 1756887

GRIP-HANDLE

$

$

Currently unavailable

7

Troy-Bilt 1756886

GRIP-HANDLE

$

$

Currently unavailable

8

Troy-Bilt 1748196

SHAFT-IDLER

$

$

Currently unavailable

9

Troy-Bilt 1100350

PIN-COTTER .120X1.00 ZP
(Superseded to 914-0115)

$3.99

$

In Stock, Qty 20+

0

10

MTD 1748415

SPRING-COMPRESSION

$

$

Not available

11

MTD 1185802

BEARING-FLANGE

$

$

Not available

12

Troy-Bilt 1748186001

ASSM-IDLER ARM

$

$

Currently unavailable

13

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

14

Troy-Bilt 1726661

SPRING

$

$

Currently unavailable

15

Troy-Bilt 1748189001

ASSM-IDLER ARM

$

$

Currently unavailable

16

Troy-Bilt 1107386

WASHER-1.305X.649X.098 ZP
(Superseded to 736-0237)

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

18

Troy-Bilt 1726660

PULLEY-IDLER
(Superseded to 756-0487)

$48.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 1100086

SCR-HH 3/8-16X1.75 G5 ZP
(Superseded to 710-0347)

$5.49

$

In Stock, Qty 20+

0

20

MTD 1725625

PULLEY-IDLER ZP

$

$

Not available

21

Troy-Bilt 1107385

WASHER-1.06X.531X.1 ZP
(Superseded to 936-0326)

$4.49

$

In Stock, only 4 left!

0

22

Troy-Bilt 1748194

BLOCK-PIVOT

$

$

Currently unavailable

23

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

24

MTD 1724632

PIN-CLEVIS .5X1.437 ZP

$

$

Not available

25

Troy-Bilt 1100805

SCR-HH 1/4-20X.75 G5 ZP
(Superseded to 710-3015)

$3.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 1748759

ASSM-BELT COVER W/DECAL

$

$

Currently unavailable

27

Troy-Bilt 1742798

DECAL-OPEI CAUTION
(Superseded to 1739687)

$7.49

$

Usually ships in 3-6 days

0

28

MTD 1186431

PIN-CLEVIS .5X2.5 ZP

$

$

Not available

29

Troy-Bilt 1186249

NUT-HEX/JAM 5/8-18 ZP
(Superseded to 712-3056)

$4.99

$

In Stock, only 3 left!

0

30

Troy-Bilt 1748532

ASSM-ROD

$

$

Currently unavailable

31

Troy-Bilt 1748228001

PLATE-MOUNTING CHAIN CASE

$

$

Currently unavailable

32

Troy-Bilt 1186469

SCR-CARR 5/16-18X.75
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 1746996

SPACER-.384X.268X.788 ZP

$

$

Currently unavailable

34

Troy-Bilt 1100869

SCR HH 1/4-20X2.5 G5 ZP

$

$

Currently unavailable

35

Troy-Bilt 1734398

NUT-HT LK 1/4-20
(Superseded to 912-0291)

$

$

Not available

36

Troy-Bilt 1748229001

PLATE-MOUNTING LH

$

$

Currently unavailable

37

Troy-Bilt 1750648001

ASSM-CHAINCASE

$

$

Currently unavailable

38

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

39

Troy-Bilt 1185919

SCR-SET HXSKT 5/16-18X.38
(Superseded to GW-9677)

$3.49

$

In Stock, only 2 left!

0

40

MTD 1748307

SHEAVE-DRIVE

$

$

Not available

41

Troy-Bilt 1759387

ASSY DEPTH SHOE

$

$

Currently unavailable

42

Troy-Bilt 1748218001

HANGER

$

$

Currently unavailable

43

MTD 1708125

PIN-CLEVIS .5X1.06 ZP

$

$

Not available

44

Troy-Bilt 1709387001

TINE

$

$

Not available

45

MTD 1709388001

TINE

$

$

Not available

46

Troy-Bilt 1100046

SCR-HH 3/8-16X1.0 G5 ZP
(Superseded to 710-0514)

$4.49

$

In Stock, Qty 20+

0

47

Troy-Bilt 1756713001

ASSM-TINE HOLDER

$

$

Currently unavailable

48

Troy-Bilt 1748249

SEAL-DUST (OUTER)

$

$

Currently unavailable

49

Troy-Bilt 1748248

SEAL-DUST 2.31 DIA

$

$

Currently unavailable

50

MTD 1748291

PIN-CLEVIS .437X2.06 ZP

$

$

Not available

51

Troy-Bilt 1748222001

SUPT-HOOD LH

$

$

Currently unavailable

52

Troy-Bilt 1748221001

SUPT-HOOD RH

$

$

Currently unavailable

53

Troy-Bilt 1748407001

BAR-DRAG

$

$

Currently unavailable

54

Troy-Bilt 1186391

NUT-HFLK 5/16-18 ZP
(Superseded to 712-04054)

$4.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 1746979001

HOOD-TINE TOP

$

$

Currently unavailable

56

MTD 1718196

HINGE-HOOD

$

$

Not available

57

MTD 1723031

PIN-HINGE

$

$

Not available

58

Troy-Bilt 1100346

PIN-COTTER .09X.75 ZP
(Superseded to 914-0507)

$4.49

$

In Stock, Qty 17

0

59

Troy-Bilt 1746998001

FLAP-HOOD

$

$

Currently unavailable

60

Troy-Bilt 1748219001

COVER-SIDE HOOD RH

$

$

Currently unavailable

61

Troy-Bilt 1748220001

COVER-SIDE HOOD LH

$

$

Currently unavailable

63

Troy-Bilt 1100069

SCR-HH 1/4-20X1.0
(Superseded to 710-0597)

$3.99

$

In Stock, Qty 14

0

64

Troy-Bilt 1185314

PIN-ROLL .125X1.25

$

$

Currently unavailable

65

Troy-Bilt 1748529

ASSM-CLEVIS

$

$

Currently unavailable

66

Troy-Bilt 1747725

BELT-V

$

$

Not available

67

Troy-Bilt 1186229

NUT-HEX 1/4-20 ZP
(Superseded to 712-3006)

$4.99

$

In Stock, Qty 19

0

68

Troy-Bilt 1100241

WASHER-LK .25 ZP
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 11

0

69

MTD 1722409

PIN-CLEVIS .5X1.75 ZP

$

$

Not available

Troy-Bilt 1735222

PAINT-BLACK SPRAY
(Superseded to 788-0637A)

$30.99

$

In Stock, only 1 left!

0

Troy-Bilt 1360A

OIL (1901964)

$

$

Currently unavailable

MTD 1900924

PAINT-SPRAYCAN BLACK

$

$

Not available
