14003 - Troy-Bilt 36" Side-Discharge Mower Deck (SN: 140030100101 & Above) 36" S.D. CENTER MOUNT MOWER Parts Diagram

36" Side-Discharge Mower Deck

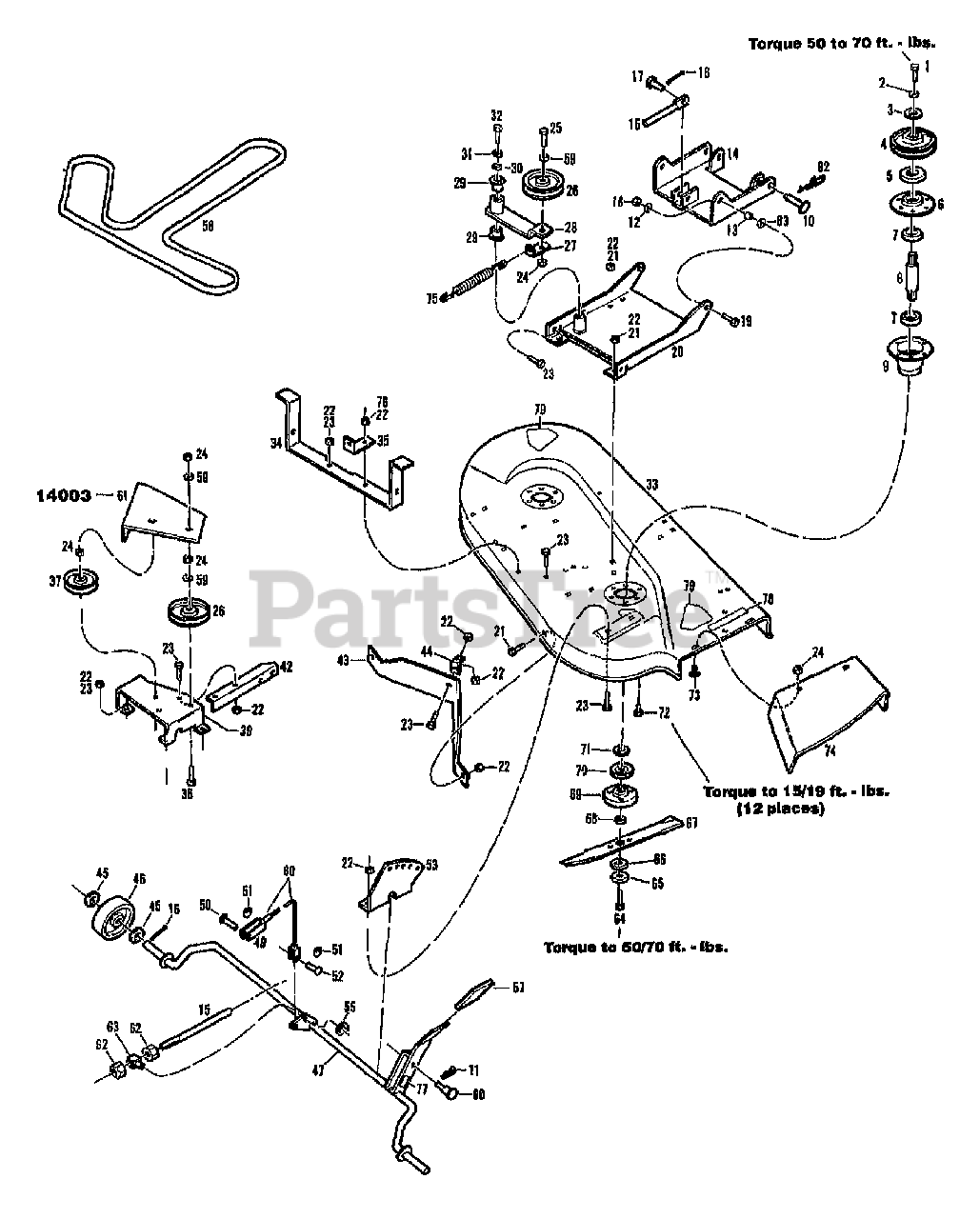

36" S.D. CENTER MOUNT MOWER Parts Diagram

  • Title

1

MTD 1747657

SCR-HH 7/16-14X2.75 G5ZP

$

$

Not available

1

MTD 1747658

SCR-HH 7/16-14X3.0 G5 ZP

$

$

Not available

2

Troy-Bilt 1100244

WASHER-LK .438 ZP
(Superseded to 936-0171)

$4.49

$

In Stock, only 4 left!

0

3

Troy-Bilt 1736484

WASHER-1.37X.453X.179 ZP
(Superseded to 736-0322)

$9.49

$

In Stock, Qty 8

0

4

Troy-Bilt 1747650

ASSM-DRIVE SHEAVE

$

$

Currently unavailable

4

Troy-Bilt 1747651

ASSM-DRIVE SHEAVE

$

$

Currently unavailable

5

Troy-Bilt 1747642

BEARING-UPPER SHIELD

$

$

Currently unavailable

6

Troy-Bilt 1747644001

HOUSING-ARBOR TOP

$

$

Currently unavailable

7

Troy-Bilt 1185574

BEARING-BALL
(Superseded to 1185574P)

$34.99

$

In Stock, Qty 13

0

8

Troy-Bilt 1754681

SHAFT-ARBOR

$162.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 1747645001

HOUSING-ARBOR BOTTOM

$

$

Currently unavailable

10

Troy-Bilt 1752308

PIN-CLEVIS .62X2.50 ZP
(Superseded to 711-1626)

$43.99

$

Usually ships in 3-6 days

0

11

MTD 1723478

PIN-HITCH .125X2.56 ZP

$

$

Not available

12

Troy-Bilt 1100257

WASHER-1/2 FLAT

$

$

Not available

13

MTD 1730681

SPACER-TUBULAR

$

$

Not available

14

Troy-Bilt 1743720001

ASSM-MOWER SUPT

$

$

Currently unavailable

15

Troy-Bilt 1747630

ROD-ADJUSTOR

$

$

Currently unavailable

16

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

17

MTD 1722409

PIN-CLEVIS .5X1.75 ZP

$

$

Not available

18

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 8

0

19

Troy-Bilt 1100055

SCR-HH 1/2-13X1.25 G5 ZP
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

20

Troy-Bilt 1747610001

PLATE-MOWER SUPPORT

$

$

Currently unavailable

21

Troy-Bilt 1186469

SCR-CARR 5/16-18X.75
(Superseded to 710-0451)

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

25

Troy-Bilt 1100048

SCR-HH 3/8-16X2.0 G5 ZP
(Superseded to 710-3144)

$4.49

$

In Stock, Qty 7

0

26

Troy-Bilt 1756151

IDLER

$48.99

$

Usually ships in 3-6 days

0

27

Troy-Bilt 1747616

GUIDE-BELT

$

$

Currently unavailable

28

Troy-Bilt 1747613

ASSM-IDLER ARM

$

$

Currently unavailable

29

MTD 1722364

BEARING-FLANGE

$

$

Not available

30

Troy-Bilt 1893445

WASHER-FLAT
(Superseded to 936-0133)

$

$

Not available

31

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 1100068

SCR-HH 3/8-16X.75 G5 ZP
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

33

Troy-Bilt 1764141

ASSM-36" DECK W/DECALS

$

$

Currently unavailable

34

Troy-Bilt 1752755001

STOP-BASE

$

$

Currently unavailable

35

Troy-Bilt 1747623

SPRING-ANCHOR

$

$

Currently unavailable

36

Troy-Bilt 1100049

SCR-HH 3/8-16X2.25 G5 ZP
(Superseded to 710-3011)

$6.99

$

In Stock, Qty 20+

0

37

MTD 1762776

PULLEY-IDLER

$

$

Not available

39

Troy-Bilt 1747948001

SUPT-IDLER/AXLE

$

$

Currently unavailable

42

Troy-Bilt 1747949001

BRKT-SUPPORT

$

$

Currently unavailable

43

Troy-Bilt 1747631001

BAFFLE

$

$

Not available

44

MTD 1747633

BRACKET-MOWER

$

$

Not available

45

Troy-Bilt 1185830

WASHER-1.38 X.765X .06 ZP
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

46

Troy-Bilt 1743891

GAUGE-WHEEL
(Superseded to 734-04005)

$

$

Not available

47

Troy-Bilt 1747625001

ASSM-SUPT WHEEL SHAFT

$

$

Currently unavailable

49

MTD 1747165

YOKE
(Superseded to 1916253001)

$

$

Not available

50

MTD 1724632

PIN-CLEVIS .5X1.437 ZP

$

$

Not available

51

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

52

Troy-Bilt 1112587

PIN-CLEVIS .375 X .937 ZP

$4.99

$

Usually ships in 3-6 days

0

53

MTD 1747620001

QUADRANT

$

$

Not available

55

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

57

Troy-Bilt 1744029

GRIP-HANDLE

$

$

Currently unavailable

58

Troy-Bilt 1746823

BELT-V

$

$

Not available

59

Troy-Bilt 1107383

WASHER-FLAT 3/8 SAE
(Superseded to 736-3050)

$4.49

$

In Stock, Qty 16

0

60

Troy-Bilt 1751144

PIN

$

$

Currently unavailable

61

Troy-Bilt 1748614001

GUARD-BELT {14003}

$

$

Currently unavailable

62

Troy-Bilt 1186235

NUT-HEX
(Superseded to 912-3015)

$4.99

$

In Stock, only 2 left!

0

63

Troy-Bilt 1743728

BLOCK-PIVOT

$

$

Currently unavailable

64

Troy-Bilt 1747656

SCR-HH 1/2-14X1.00
(Superseded to 1765196)

$3.99

$

In Stock, Qty 10

0

65

Troy-Bilt 1747637

WASHER-LK CONICAL .49 ID

$

$

Currently unavailable

66

Troy-Bilt 1747638

WASHER-SPLINED

$

$

Currently unavailable

67

Troy-Bilt 1747640

BLADE-MOWER
(Superseded to 1772335)

$48.99

$

Usually ships in 3-6 days

0

68

MTD 1748409

COLLAR-ARBOR

$

$

Not available

69

Troy-Bilt 1747639

ADAPTER-BLADE

$

$

Currently unavailable

70

MTD 1747641

SHIELD-GRASS

$

$

Not available

71

Troy-Bilt 1747643

WASHER-SHIM

$2.99

$

In Stock, only 3 left!

0

72

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

73

MTD 1739656

SCR-CARR 3/8-16X.75 G5 ZP

$

$

Not available

74

MTD 1747635001

DEFLECTOR-MOWER

$

$

Not available

75

Troy-Bilt 1756595

SPRING-EXTENSION

$17.99

$

In Stock, only 1 left!

0

76

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, only 4 left!

0

77

Troy-Bilt 1756884

DECAL-HEIGHT ADJUSTOR {14003}

$

$

Currently unavailable

78

MTD 1763407

DECAL-DANGER

$

$

Not available

79

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

80

Troy-Bilt 1747321

ASSM-CABLE(MOWER DECK)
(Superseded to 1747321P)

$

$

Not available

82

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$4.49

$

Usually ships in 3-6 days

0

83

MTD 1724929

WASHER

$

$

Not available

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

MTD 1900924

PAINT-SPRAYCAN BLACK

$

$

Not available
