14000 - Troy-Bilt 42" Side-Discharge Mower Deck (SN: 140000100101 & Above) MOWER DECK Parts Diagram

42" Side-Discharge Mower Deck

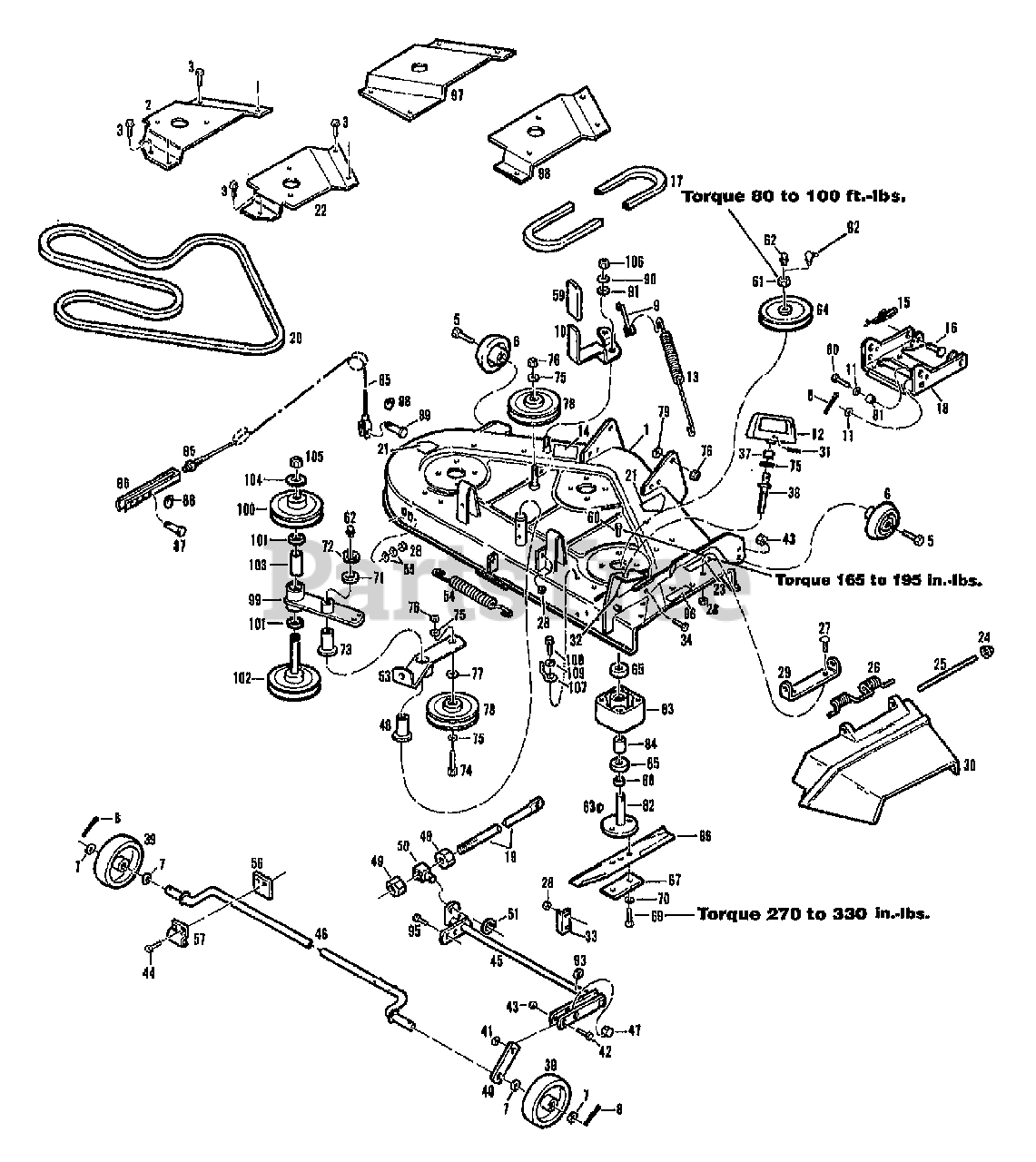

MOWER DECK Parts Diagram

  • Title
1

Troy-Bilt 1764185

ASSM-MOWER DECK W/DECALS {14000}

$

$

Currently unavailable

1

Troy-Bilt 1764186

ASSM-MOWER DECK W/DECALS {14001}

$

$

Currently unavailable

2

MTD 1762216001

COVER-BELT LH {14000}

$

$

Not available

2

MTD 1762102001

COVER-BELT LH {14001}

$

$

Not available

3

MTD 1724492

SCR 1/4-20X.5 FL SELF TAP

$

$

Not available

5

Troy-Bilt 1763219

SCR-SHLDR 3/8-16

$10.99

$

In Stock, only 2 left!

0

6

Troy-Bilt 1762138

WHEEL-GAGE

$24.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 1185830

WASHER-1.38 X.765X .06 ZP
(Superseded to 736-0188)

$4.49

$

In Stock, Qty 20+

0

8

MTD 1100351

PIN-COTTER .120X1.25 ZP

$

$

Not available

9

MTD 1761797

ROD-IDLER

$

$

Not available

$

$

Currently unavailable

11

Troy-Bilt 1749937

WASHER-.5 DIA
(Superseded to 936-0456)

$4.99

$

In Stock, Qty 9

0

12

MTD 1754149

HANDLE-HEIGHT ADJ

$

$

Not available

13

Troy-Bilt 1762141

SPRING-EXTENSION

$

$

Currently unavailable

14

MTD 1757419

DECAL-BELT DRIVE

$

$

Not available

15

Troy-Bilt 1751909

RING-COTTER
(Superseded to 714-3020)

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 1752308

PIN-CLEVIS .62X2.50 ZP
(Superseded to 711-1626)

$43.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 1760958

BELT-V
(Superseded to 1772984)

$34.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 1761154001

ASSM-MOWER SUPPORT

$

$

Currently unavailable

19

Troy-Bilt 1761897

ROD-ADJUSTING

$

$

Currently unavailable

20

Troy-Bilt 1760959

BELT-V {14000}

$55.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 1760960

BELT-V {14001}

$100.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 1739687

DECAL-OPEI CAUTION

$7.49

$

Usually ships in 3-6 days

0

22

Troy-Bilt 1762215001

COVER-BELT RH {14000}

$

$

Currently unavailable

22

Troy-Bilt 1762136001

COVER-BELT RH {14001}

$

$

Currently unavailable

23

MTD 1744491

DECAL-CUTTING LINE

$

$

Not available

24

Troy-Bilt 1724791

NUT-PUSH 3/8 ZP
(Superseded to 926-0100)

$

$

Not available

$

$

Not available

26

Troy-Bilt 1756596

SPRING-TORSION

$

$

Not available

27

Troy-Bilt 1736098

BOLT-CARR 5/16-18X.63 ZP
(Superseded to 710-0260A)

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 1732499

NUT-TOP/LK 5/16-18 ZP
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

29

$

$

Not available

30

MTD 1755750

DEFLECTOR-DISCHARGE

$

$

Not available

31

MTD 1120210

PIN-ROLL .188X1.0

$

$

Not available

32

MTD 1762143

DECAL-HEIGHT ADJUST

$

$

Not available

33

MTD 1743726

RETAINER-SHAFT

$

$

Not available

34

MTD 1103195

SCR-HH 5/16-18X.63 G5

$

$

Not available

37

Troy-Bilt 1762886

SPACER-HANDLE

$

$

Not available

38

MTD 1761847

ROD-ADJUSTING

$

$

Not available

39

Troy-Bilt 1743891

GAUGE-WHEEL
(Superseded to 734-04005)

$

$

Not available

40

Troy-Bilt 1744026001

LINK-WHEEL SUPT

$

$

Currently unavailable

41

Troy-Bilt 1763403

SPACER-.75X.39X.545

$

$

Currently unavailable

42

Troy-Bilt 1100047

SCR-HH 3/8-16X1.5 G5 ZP
(Superseded to 710-0520)

$4.49

$

In Stock, Qty 6

0

43

Troy-Bilt 1733398

NUT-LOCK 3/8-16
(Superseded to 912-3000)

$4.49

$

In Stock, Qty 9

0

44

Troy-Bilt 1100045

SCR-HH 5/16-18X1.0 G5 ZP
(Superseded to 710-0376)

$3.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 1762003001

ARM-HEIGHT ADJUST

$

$

Currently unavailable

46

MTD 1744025

SUPT-WHEEL SHAFT

$

$

Not available

47

MTD 1762882

PIVOT-ADJUSTING SCR

$

$

Not available

48

Troy-Bilt 1761999

BEARING-FLANGE

$19.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 1186235

NUT-HEX
(Superseded to 912-3015)

$4.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 1743728

BLOCK-PIVOT

$

$

Currently unavailable

51

Troy-Bilt 1185649

RING-RETAINING EXT .694 ID

$

$

Not available

53

$

$

Currently unavailable

54

MTD 1716777

SPRING-EXT

$

$

Not available

55

MTD 1185261

WASHER-LOCK

$

$

Not available

56

Troy-Bilt 1744023

PLATE-DOUBLER

$

$

Currently unavailable

57

Troy-Bilt 1744024001

SUPPORT-SHAFT

$

$

Currently unavailable

59

$

$

Not available

60

Troy-Bilt 1724491

SCR-HFLK 5/16-18X.75
(Superseded to 710-1260A)

$3.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 1185093

NUT-H/LK
(Superseded to 1762168)

$17.99

$

Usually ships in 3-6 days

0

62

Troy-Bilt 1185976

FITTING-GREASE 1/4-28X2.00
(Superseded to 937-0146)

$5.49

$

In Stock, only 2 left!

0

63

Troy-Bilt 1104436

KEY-WOODRUFF .188X.75
(Superseded to 914-0868)

$3.99

$

In Stock, only 4 left!

0

64

$55.99

$

Usually ships in 3-6 days

0

65

Troy-Bilt 1185828

BEARING-BALL

$46.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 1736560

BLADE-42" GRS DECK {14000}

$47.99

$

Usually ships in 3-6 days

0

66

Troy-Bilt 1726138

BLADE-CUTTER {14001}

$50.99

$

Usually ships in 3-6 days

0

67

MTD 1724051

PLATE

$

$

Not available

68

0

WASHER N/A

$

$

Not available

69

Troy-Bilt 1100009

SCR-HH 3/8-24X1.0 G5 ZP
(Superseded to 710-1039)

$4.49

$

In Stock, Qty 20+

0

70

Troy-Bilt 1100243

WASHER-LK .375 @ DEPL
(Superseded to 936-0169)

$3.99

$

In Stock, Qty 20+

0

71

MTD 1762144

SHIM-WASHER

$

$

Not available

72

Troy-Bilt 1180025

RING-RET. EXT .875 ID
(Superseded to 716-0111)

$6.99

$

In Stock, only 4 left!

0

73

Troy-Bilt 1761998

FLANGE-BEARING

$

$

Currently unavailable

74

Troy-Bilt 1100067

SCR-HH 1/2-13X2.0 G5 ZP

$

$

Not available

75

Troy-Bilt 1890234

WASHER-FLAT .88X.5X.06 ZP
(Superseded to GW-20546)

$

$

Not available

76

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

77

$

$

Not available

78

Troy-Bilt 1752354

PULLEY-IDLER

$84.99

$

In Stock, only 1 left!

0

79

MTD 1724929

WASHER

$

$

Not available

80

Troy-Bilt 1100055

SCR-HH 1/2-13X1.25 G5 ZP
(Superseded to 710-3032)

$6.49

$

Usually ships in 3-6 days

0

81

MTD 1730681

SPACER-TUBULAR

$

$

Not available

82

Troy-Bilt 1742625

ASSM-BLADE SHAFT

$333.99

$

Usually ships in 3-6 days

0

83

Troy-Bilt 1724029

HOUSING-SPINDLE

$176.99

$

Usually ships in 3-6 days

0

84

$19.99

$

In Stock, only 2 left!

0

85

Troy-Bilt 1747321

ASSM-CABLE(MOWER DECK)
(Superseded to 1747321P)

$

$

Not available

86

MTD 1761243

YOKE
(Superseded to 1916253001)

$

$

Not available

87

MTD 1724632

PIN-CLEVIS .5X1.437 ZP

$

$

Not available

88

Troy-Bilt 1751908

RING-CIRCLE COTTER

$5.99

$

Usually ships in 3-6 days

0

89

Troy-Bilt 1112587

PIN-CLEVIS .375 X .937 ZP

$4.99

$

Usually ships in 3-6 days

0

90

MTD 1708755

WASHER-.875X.390X.134

$

$

Not available

91

MTD 1702646

WASHER-FLAT 1.0X.516X.031 {14000}

$

$

Not available

91

Troy-Bilt 1185831

WASHER-SHIM {14001}

$

$

Not available

92

Troy-Bilt 1731504

FITTING-GREASE 90 DEGREE
(Superseded to 737-3004)

$11.99

$

In Stock, Qty 6

0

93

MTD 1763097

WASHER-PLASTIC

$

$

Not available

95

Troy-Bilt 1100044

SCR-HHC 5/16-18X.75 GR 5 ZP
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

96

MTD 1763407

DECAL-DANGER

$

$

Not available

97

MTD 1762102001

COVER-BELT LH {14001}

$

$

Not available

98

Troy-Bilt 1762136001

COVER-BELT RH {14001}

$

$

Currently unavailable

99

Troy-Bilt 1763003

ASSM-MOUNTING ARM

$

$

Currently unavailable

100

Troy-Bilt 1762915

ASSM-SHEAVE & HUB

$

$

Currently unavailable

101

Troy-Bilt 1185064

BEARING-BALL
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

102

MTD 1763002

ASSM-SHEAVE & SHAFT

$

$

Not available

$

$

Currently unavailable

104

$

$

Not available

105

Troy-Bilt 1734514

NUT-TOP LOCK 1/2-13 ZP
(Superseded to 712-3022)

$3.99

$

In Stock, Qty 20+

0

106

Troy-Bilt 1764070

NUT-H/LK 3/8-24
(Superseded to 712-3054)

$4.49

$

In Stock, Qty 20+

0

107

Troy-Bilt 1720878

GUIDE-BELT {14001}

$

$

Currently unavailable

108

Troy-Bilt 1754128

SCR-FLANGE 1/4-20X3/4 GR5 {14001}

$3.99

$

In Stock, only 2 left!

0

109

Troy-Bilt 1100254

WASHER-.75X.312X.065 ZP {14001}
(Superseded to 936-0159)

$

$

Not available

MTD 1727926

BLADE-CUTTER {14000}
(Superseded to 1772144)

$

$

Not available

Troy-Bilt 1738571

BLADE-CUTTER {14001}
(Superseded to 1772145)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$24.99

$

Usually ships in 3-6 days

0

MTD 1900924

PAINT-SPRAYCAN BLACK

$

$

Not available
