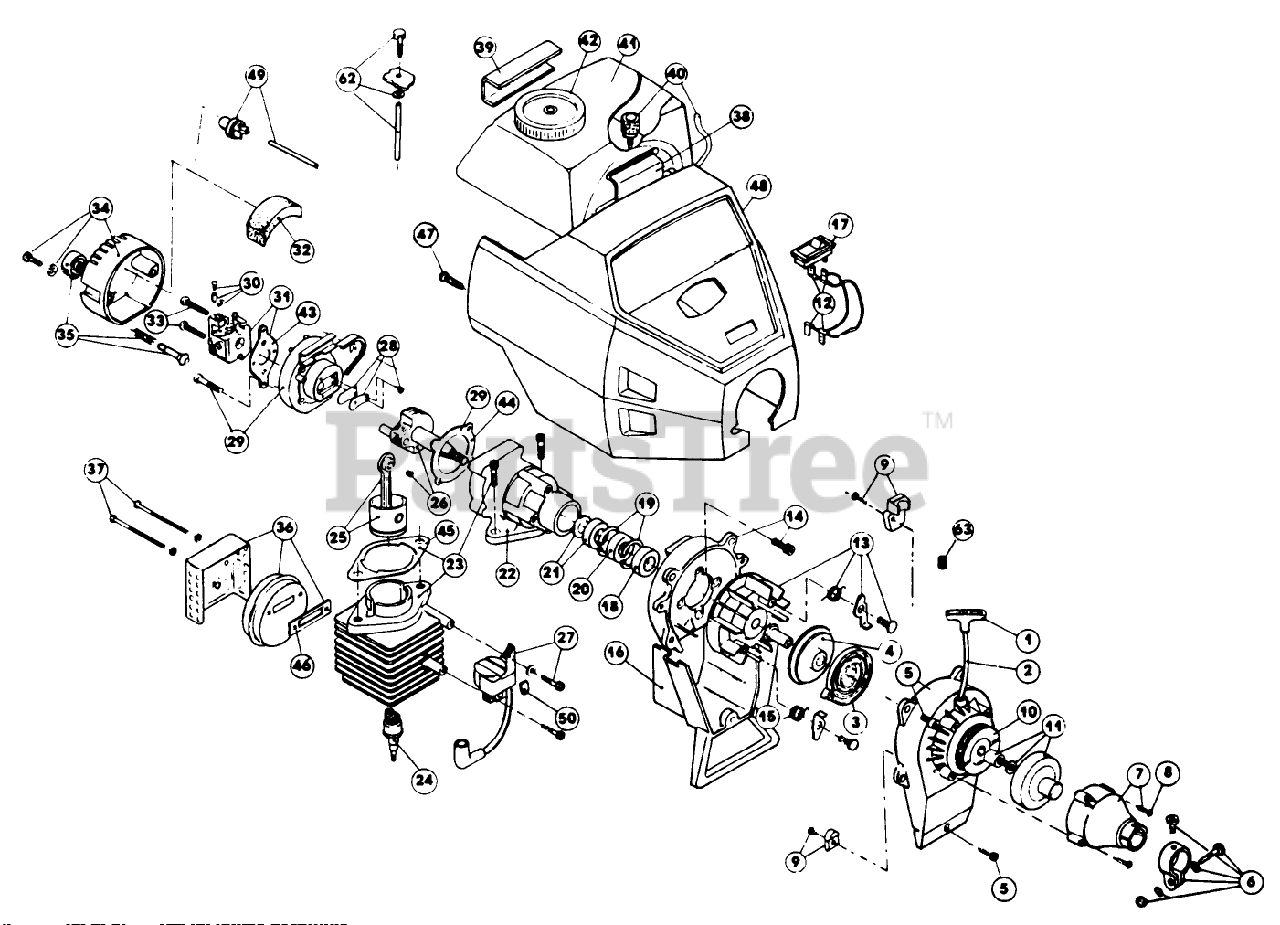

1400 CL - Lawn-Boy 15" String Trimmer (SN: 712000000 - 799999999) (1987) Engine Model 1480 Parts Diagram

15" String Trimmer

Engine Model 1480 Parts Diagram

  • Title

1

Lawn-Boy 610300

See Supercession: 181079
(Superseded to 181079)

Note: The above part nos. for serial no. 71200000 and greater.

$15.99

$

Usually ships in 3-6 days

0

2

Lawn-Boy 613103

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

3

Lawn-Boy 613102

RECOIL SPRING

Note: The above part nos. for serial no. 71200000 and greater.

$23.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 683856

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

5

Lawn-Boy 683600

See Supercession: 181931
(Superseded to 181931)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

6

Lawn-Boy 153597

CLAMP ASM - UPPER

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

7

Lawn-Boy 683601

See Supercession: 180098
(Superseded to 180098)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

8

Lawn-Boy 145888

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

9

Lawn-Boy 682546

See Supercession: 153644
(Superseded to 153644)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

10

Lawn-Boy 153591

See Supercession: 181598
(Superseded to 181598)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

11

Lawn-Boy 153592

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

12

Lawn-Boy 683068

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

13

Lawn-Boy 153624

See Supercession: 180929
(Superseded to 180929)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

14

Lawn-Boy 683065

SHROUD ASM

Note: The above part nos. for serial no. 71200000 and greater.

$74.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 145918

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

16

Lawn-Boy 683078

See Supercession: 153403
(Superseded to 153403)

Note: The above part nos. for serial no. 71200000 and greater.

$50.99

$

Usually ships in 3-6 days

0

17

Lawn-Boy 683069

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

18

Lawn-Boy 610308

OUTER BEARING

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

19

Lawn-Boy 682040

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

20

Lawn-Boy 610309

SEAL

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

21

Lawn-Boy 682041

INNER BEARING ASM

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

22

Lawn-Boy 145563

DISCONTINUED
(Superseded to 684756)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

23

Lawn-Boy 611735

See Supercession: 181622
(Superseded to 181622)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

24

Lawn-Boy 610311

SPARK PLUG

Note: The above part nos. for serial no. 71200000 and greater.

$5.49

$

In Stock, only 3 left!

0

25

Lawn-Boy 153302

See Supercession: 753-04367
(Superseded to 753-04367)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

26

Lawn-Boy 145919

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

27

Lawn-Boy 683390

See Supercession: 181937
(Superseded to 181937)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

28

Lawn-Boy 682046

See Supercession: 684451
(Superseded to 684451)

Note: The above part nos. for serial no. 71200000 and greater.

$19.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 683972

See Supercession: 684452
(Superseded to 684452)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

30

Lawn-Boy 682048

THROTTLE ADJ ASM

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

31

Lawn-Boy 683973

See Supercession: 181621
(Superseded to 181621)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

32

Lawn-Boy 610312

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

33

Lawn-Boy 682505

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

34

Lawn-Boy 683410

See Supercession: 683414
(Superseded to 683414)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

35

Lawn-Boy 682052

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

36

Lawn-Boy 683273

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

37

Lawn-Boy 682054

MUFFLER MOUNTING BOLTS

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

38

Lawn-Boy 145308

FRONT MOUNTING PAD

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

39

Lawn-Boy 612134

REAR MOUNTING PAD

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

40

Lawn-Boy 682039

FUEL LINE ASM

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

41

Lawn-Boy 613380

Fuel tank

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Currently unavailable

42

Lawn-Boy 683066

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

43

Lawn-Boy 610675

CARB.GASKET

Note: The above part nos. for serial no. 71200000 and greater.

$6.99

$

In Stock, only 1 left!

0

44

Lawn-Boy 610673

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

45

Lawn-Boy 145564

DISCONTINUED
(Superseded to 610674)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

46

Lawn-Boy 610672

See Supercession: 180980
(Superseded to 180980)

Note: The above part nos. for serial no. 71200000 and greater.

$7.99

$

In Stock, only 1 left!

0

47

Lawn-Boy 683070

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

48

Lawn-Boy 683867

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

49

Lawn-Boy 683874

Primer bulb and hose assembly

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Currently unavailable

50

Lawn-Boy 611063

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

51

Lawn-Boy 153307

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

51

Lawn-Boy 153307

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

52

Lawn-Boy 153308

See Supercession: 180602
(Superseded to 180602)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

52

Lawn-Boy 153308

See Supercession: 180602
(Superseded to 180602)

Note: NOT SHOWN

$

$

Not available

53

Lawn-Boy 153309

DISCONTINUED
(Superseded to 181069)

Note: NOT SHOWN

$

$

Not available

53

Lawn-Boy 153309

DISCONTINUED
(Superseded to 181069)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

54

Lawn-Boy 682507

DISCONTINUED
(Superseded to 180530)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

54

Lawn-Boy 682507

DISCONTINUED
(Superseded to 180530)

Note: NOT SHOWN

$

$

Not available

55

Lawn-Boy 153594

DISCONTINUE

Note: NOT SHOWN

$

$

Not available

55

Lawn-Boy 153594

DISCONTINUE

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

56

Lawn-Boy 153595

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

56

Lawn-Boy 153595

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

57

Lawn-Boy 610676

FLYWHEEL KEY (10-PK)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

57

Lawn-Boy 610676

FLYWHEEL KEY (10-PK)

Note: NOT SHOWN

$

$

Not available

58

Lawn-Boy 683414

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

58

Lawn-Boy 683414

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

59

Lawn-Boy 684141

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

59

Lawn-Boy 684141

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

60

Lawn-Boy 683975

See Supercession: 684452
(Superseded to 684452)

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

61

Lawn-Boy 153593

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

61

Lawn-Boy 153593

DISCONTINUED

Note: NOT SHOWN

$

$

Not available

62

Lawn-Boy 683976

FUEL RETURN LINE ASM

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available

63

Lawn-Boy 611061

DISCONTINUED

Note: The above part nos. for serial no. 71200000 and greater.

$

$

Not available
