140 - Shindaiwa Electric Chainsaw General Assembly Model 140 Parts Diagram

Electric Chainsaw

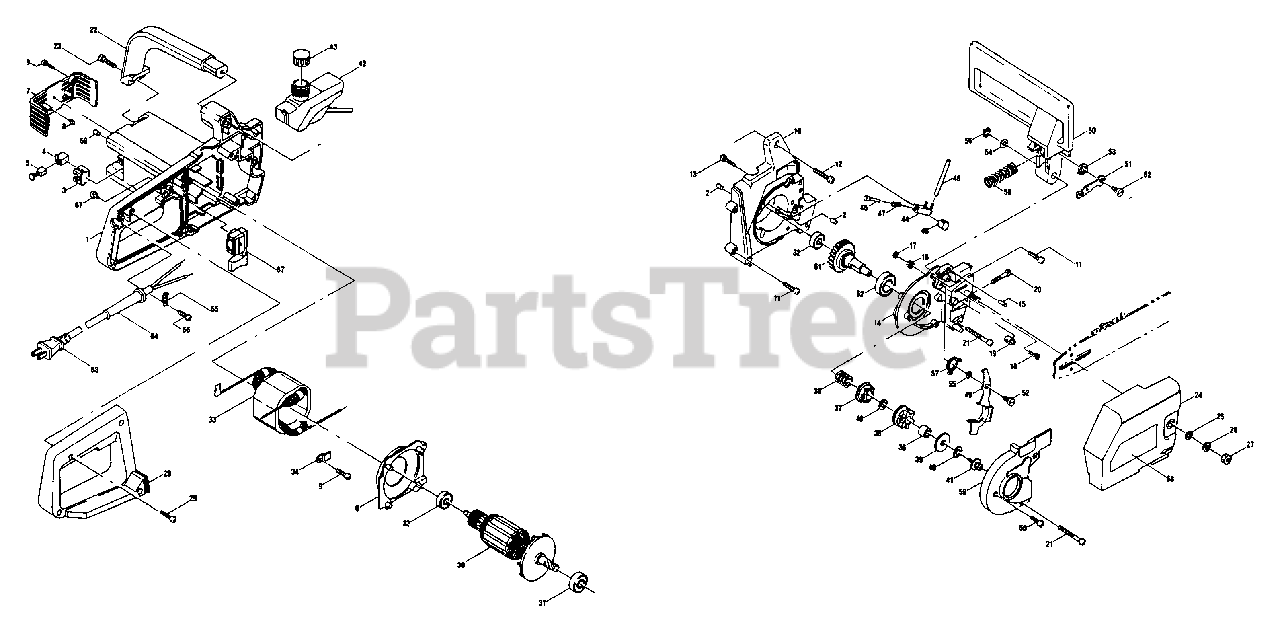

General Assembly Model 140 Parts Diagram

  • Title

1

Echo 75188-31110

CASE - LEFT
(Superseded to Discontinued)

$

$

Not available

2

Echo 1712067000

BUSHING

$

$

Currently unavailable

3

Echo 24143-31120

HOLDER, (A)

$

$

Not available

4

Echo 14863-01122

HOLDER, BRUSH

$

$

Not available

5

Echo 14732-05110

BRUSH

$2.99

$

Usually ships in 2-4 days

0

6

Echo 24143-31130

COVER
(Superseded to Discontinued)

$

$

Not available

7

Echo 24143-32110

COVER
(Superseded to Discontinued)

$

$

Not available

8

Echo 24143-32120

HOLDER, (B)
(Superseded to Discontinued)

$

$

Not available

9

Echo 11202-40160

SCREW
(Superseded to 24196-32310)

$

$

Not available

10

Echo 24143-33110

CASE - RIGHT
(Superseded to Discontinued)

$

$

Not available

11

Echo 11202-40250

SCREW - TAPPING
(Superseded to Discontinued)

$

$

Not available

12

Echo 24143-33120

SCREW

$

$

Currently unavailable

13

Echo 11201-04252

SCREW - TAPPING
(Superseded to Discontinued)

$

$

Not available

14

Echo 24143-34100

GEAR CASE ASSY
(Superseded to C051000690)

$45.99

$

Usually ships in 2-4 days

0

15

Echo 24143-34120

PIN
(Superseded to V622000060)

$0.99

$

Usually ships in 2-4 days

0

16

Echo 90050000005

NUT - 5

$0.99

$

In Stock, Qty 20+

0

17

Echo 24143-34130

WASHER - STAR

$

$

Currently unavailable

18

Echo 24143-34140

CONNECTOR
(Superseded to V187000220)

$0.99

$

Usually ships in 2-4 days

0

19

Echo 1711005000

TENSIONER, CHAIN
(Superseded to C309000140)

$2.49

$

Usually ships in 2-4 days

0

20

Echo 74111-64110

SCREW
(Superseded to Discontinued)

$

$

Not available

21

Echo 11202-40450

SCREW
(Superseded to Discontinued)

$

$

Not available

22

Echo 24143-35110

HANDLE - FRONT

$

$

Not available

23

Echo 75157-35130

SCREW
(Superseded to V253000850)

$0.99

$

Usually ships in 2-4 days

0

24

Echo 24142-36100

BAR MOUNT ASSY
(Superseded to 24154-36010)

$7.49

$

Usually ships in 2-4 days

0

25

Echo 01610-08120

WASHER - 8

$

$

Not available

26

Echo 01600-08201

LOCKWASHER - 8
(Superseded to 90060500008)

$0.99

$

In Stock, Qty 20+

0

27

Echo 01500-08061

NUT - 8
(Superseded to 90050000008)

$0.99

$

In Stock, Qty 20+

0

28

Echo 24143-37110

HANDLE - RIGHT
(Superseded to Discontinued)

$

$

Not available

29

Echo 11202-40200

SCREW - TAPPING
(Superseded to 24196-33310)

$0.99

$

Usually ships in 2-4 days

0

30

Echo 14801-35000

ARMATURE
(Superseded to Discontinued)

$

$

Not available

31

Echo 02002-06000

BEARING, BALL - 6000
(Superseded to 90080406000)

$9.99

$

In Stock, Qty 14

0

32

Echo 02002-00627

BEARING, BALL - 627ZZ
(Superseded to 90081400627)

$13.99

$

In Stock, only 1 left!

0

33

Echo 14811-35000

FIELD
(Superseded to Discontinued)

$

$

Not available

34

Echo 23171-52120

PLATE

$

$

Currently unavailable

35

Echo 12031-06300

SPROCKET
(Superseded to C580000590)

$24.99

$

Usually ships in 2-4 days

0

36

Echo 12200-10102

BUSHING
(Superseded to V375000600)

$1.99

$

Usually ships in 2-4 days

0

37

Echo 24143-61210

CLUTCH
(Superseded to A563000020)

$16.99

$

Usually ships in 2-4 days

0

38

Echo 1750017300

SPRING

$

$

Currently unavailable

39

Echo 24143-61220

PLATE, SIDE
(Superseded to C603000490)

$1.99

$

Usually ships in 2-4 days

0

40

Echo 24143-61230

WASHER
(Superseded to V392000050)

$0.99

$

Usually ships in 2-4 days

0

41

Echo 24143-61240

BOLT

$

$

Not available

42

Echo 24143-62100

OIL TANK ASSY
(Superseded to Discontinued)

$

$

Not available

43

Echo 23115-62310

CAP
(Superseded to E111000130)

$0.99

$

Usually ships in 2-4 days

0

44

Echo 24143-62200

OIL PUMP CASE ASSY
(Superseded to E580000030)

$9.49

$

Usually ships in 2-4 days

0

45

Echo 24143-62300

PISTON ASSY

$

$

Not available

46

Echo 24143-62410

TUBE
(Superseded to 24143-62411)

$

$

Not available

47

Echo 1750003500

SPRING

$

$

Currently unavailable

48

Echo 24143-62510

PACKING

$

$

Not available

49

Echo 24143-63100

BRAKE LEVER ASSY
(Superseded to J328000150)

$10.99

$

Usually ships in 2-4 days

0

50

Echo 24143-63200

PROTECTOR ASSY

$

$

Not available

51

Echo 24143-63311

RATCHET
(Superseded to C390000070)

$2.49

$

Usually ships in 2-4 days

0

52

Echo 24143-63320

SCREW

$

$

Not available

53

Echo 17520-15600

SPRING
(Superseded to V452001090)

$2.99

$

Usually ships in 2-4 days

0

54

Echo 01611-08160

WASHER
(Superseded to 90061700008)

$0.99

$

In Stock, Qty 10

0

55

Echo 01611-05100

WASHER - 5
(Superseded to 9220305000)

$0.99

$

In Stock, Qty 6

0

56

Echo 02430-08080

RING, RETAINING - 8
(Superseded to 9242308000)

$0.99

$

In Stock, only 1 left!

0

57

Echo 17520-18400

SPRING
(Superseded to Discontinued)

$

$

Not available

58

Echo 1750014800

SPRING
(Superseded to 17500-14801)

$1.99

$

Usually ships in 2-4 days

0

59

Echo 24143-64110

COVER, BRAKE
(Superseded to C345000470)

$2.99

$

Usually ships in 2-4 days

0

60

Echo 01270-04142

SCREW - 4X14
(Superseded to Discontinued)

$

$

Not available

61

Echo 24143-65103

GEAR ASSY

$

$

Not available

62

Echo 02002-06002

BEARING, BALL - 6002
(Superseded to 90080406002)

$13.99

$

Usually ships in 2-4 days

0

63

Echo 74187-71110

POWER CORD
(Superseded to Discontinued)

$

$

Not available

64

Echo 75180-71120

CORD PROTECTOR
(Superseded to Discontinued)

$

$

Not available

65

Echo 23180-71120

CLAMP

$

$

Not available

66

Echo 11202-40121

SCREW
(Superseded to V252000630)

$0.99

$

In Stock, only 1 left!

0

67

Echo 05211-22204

SWITCH
(Superseded to 05211-22214)

$15.99

$

Usually ships in 2-4 days

0

68

Echo 75188-91110

NAME PLATE
(Superseded to Discontinued)

$

$

Not available

69

Echo 1712069000

BUSHING

$

$

Currently unavailable
