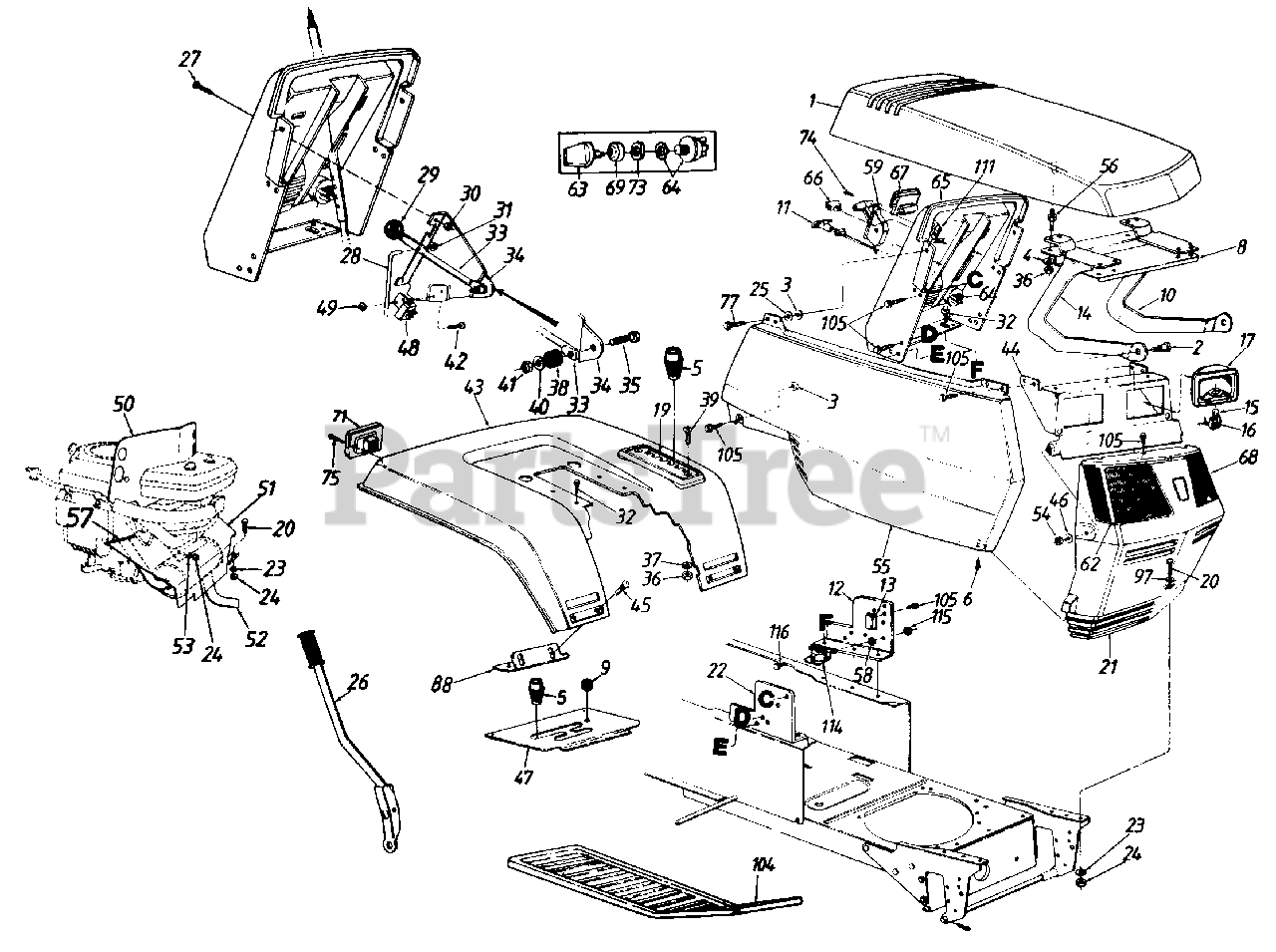

140-844H000 - MTD Garden Tractor (1990) Style 4 Parts Diagram

Garden Tractor

Style 4 Parts Diagram

  • Title

1

MTD 16823

Hood

Variations

MTD 16823-0483

No Longer Available HOOD - CHARCOAL GRAY (0483)

$

$

Not available

MTD 16823-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 16823-0638

No Longer Available HOOD MTD R - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

2

MTD 738-0141

Shld. Bolt .437" Dia. x .35"
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

3

MTD 726-0233

Bolt Retainer 1/4" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 736-0270

Bell-Wash. .265" I.D. x .75" O.D

$3.99

$

In Stock, Qty 20+

0

5

MTD 720-0218

Shift Knob

$19.99

$

Usually ships in 3-6 days

0

6

MTD 710-0351

Truss Mach. B-Tap Scr. #10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

8

MTD 16808

Hood Reinforcement

$

$

Not available

9

MTD 720-0166

Ball Knob Brake

$

$

Not available

10

MTD 17271

Hood Hinge L.H.

$

$

Not available

11

MTD 746-3022B

Choke Control
(Superseded to 946-3022B)

$39.99

$

In Stock, only 4 left!

0

12

MTD 17294

Dash Support Brkt. L.H.

$

$

Not available

13

MTD 725-0459

Circuit Breaker
(Superseded to 753-0685)

$

$

Not available

14

MTD 17270

Hood Hinge R.H.

$

$

Currently unavailable

15

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, Qty 5

0

16

MTD 725-1058

Twist Lock Lamp Socket
(Superseded to 925-1058A)

$

$

Not available

17

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

19

MTD 731-1069

Speed Control Index Brkt.
(Superseded to 931-1746)

$

$

Not available

20

MTD 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)

$4.49

$

In Stock, Qty 20+

0

21

MTD 731-0935A

Grille

Variations

MTD 731-0935A-0483

No Longer Available GRILLE - CHARCOAL GRAY (0483)

$

$

Not available

MTD 731-0935A-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 731-0935A-0629

No Longer Available GRILLE - SILVER FLAKE (0629)

$

$

Not available

MTD 731-0935A-0638

No Longer Available GRILLE-MTD - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

22

MTD 17293

Dash Support Bracket R.H.
(Superseded to 17293B-0637)

$

$

Not available

23

MTD 736-0119

L-Wash. 5/16" I.D.*
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

24

MTD 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

25

MTD 736-0176

Fl-Wash. 1/4" I.D. x .93" O.D.

$4.99

$

In Stock, only 4 left!

0

26

MTD 17282

Lift Handle Ass'y.

$

$

Not available

27

MTD 710-0286

Truss Mach. Scr. 1/4-20 x .51' Lg.

$4.49

$

Usually ships in 3-6 days

0

28

MTD 747-0708

Deck Control Rod

$

$

Not available

29

MTD 720-0165

Knob Blade Clutch
(Superseded to 920-0232)

$10.99

$

In Stock, Qty 10

0

30

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

31

MTD 726-0106

Push Cap

$3.99

$

Usually ships in 3-6 days

0

32

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

33

MTD 747-0513

PTO Lever

$

$

Not available

34

MTD 13950A

Deck Clutch Cont. Brkt.

$

$

Not available

35

MTD 710-0106

Hex Bolt 1/4-20 x 1.25" Lg.

$3.99

$

In Stock, Qty 12

0

36

MTD 712-0287

Hex Nut 1/4-20 Thd.
(Superseded to 912-0287)

$4.99

$

In Stock, only 1 left!

0

37

MTD 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 9

0

38

MTD 735-0126

Rubber Washer
(Superseded to 735-0126A)

$

$

Not available

39

MTD 710-0946

Truss Mach. Scr. 1/4-20 x .621" Lg.

$3.99

$

Usually ships in 3-6 days

0

40

MTD 736-0173

Fl-Wash. .281" I.D. x .73"

$4.49

$

In Stock, Qty 20+

0

41

MTD 712-0324

Hex L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

42

MTD 710-0473

Truss Mach. Scr. #10-24 x .5" Lg.

$4.49

$

In Stock, only 2 left!

0

43

MTD 17425

629 Rear Fender

$

$

Currently unavailable

44

MTD 17223

Light Bracket

Variations

MTD 17223-0637

No Longer Available BRACKET-LI - POWDER BLACK (0637)

$

$

Not available

$

$

45

MTD 710-0167

Carriage Bolt 1/4-20 x .50" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

46

MTD 736-0278

Fl-Wash. .328" I.D. x .68" O.D.

$5.99

$

Usually ships in 3-6 days

0

47

MTD 17401

Transmission Panel

$

$

Not available

48

MTD 725-0465A

Safety Switch
(Superseded to 925-0465A)

$30.99

$

In Stock, only 1 left!

0

49

MTD 712-0121

Hex Nut #10-24 Thd.

$4.49

$

In Stock, Qty 20+

0

50

MTD 17319

Top Heat Shield

$

$

Not available

51

MTD 16934

Front Heat Shield

$

$

Not available

52

MTD 751-0474

Muffler

$

$

Not available

53

MTD 736-0170

L-Wash. 5/16" I.D.

Note: (Special)

$5.99

$

Usually ships in 3-6 days

0

54

MTD 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

55

MTD 17448

Side Cover R.H.

$

$

Not available

MTD 17447

Side Cover L.H.

Note: (Not Shown)

$

$

Not available

56

MTD 710-1034

Double Ended Stud 1/4-20 Thd.

$

$

Not available

57

MTD 731-0511-12

Trim Strip 12" Lg.

$22.99

$

Usually ships in 3-6 days

0

58

MTD 736-0222

Ext. L-Wash. 1/4" I.D.

$5.99

$

In Stock, only 3 left!

0

59

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

62

MTD 731-0948

Lens R.H.
(Superseded to 931-0948)

$36.99

$

In Stock, only 1 left!

0

63

MTD 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

64

MTD 725-0267

Ignition Switch
(Superseded to 925-0267B)

$35.99

$

In Stock, Qty 20+

0

65

MTD 731-0957

Dash Panel

$

$

Not available

66

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

67

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

68

MTD 731-0949

Lens L.H.
(Superseded to 931-0949)

$

$

Not available

69

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

MTD 757-0350

Seat Ass'y.
(Superseded to 957-0350)

$588.99

$

Usually ships in 3-6 days

0

71

MTD 725-3018

Taillight Ass'y.

$

$

Currently unavailable

73

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x .5" Lg.

$4.49

$

In Stock, Qty 12

0

75

MTD 710-0936

Truss Hd. AB-Tap Scr. #6 x .62" Lg.

$4.49

$

Usually ships in 3-6 days

0

77

MTD 710-0642

Hex Wash. Hd. Tap Scr. 1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

88

MTD 15846

Fender Bracket R.H.

Variations

MTD 15846-0637

Fender Brkt. R.H. - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 15847

Fender Bracket L.H.

Variations

MTD 15847-0637

No Longer Available BRACKET-FE - POWDER BLACK (0637)

$

$

Not available

$

$

97

MTD 736-0159

Fl-Wash. .344" I.D.

$4.49

$

In Stock, Qty 20+

0

104

MTD 731-1051

Foot Pad

$

$

Not available

105

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

111

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

114

MTD 725-1426

N Solenoid
(Superseded to 925-1426A)

$26.99

$

In Stock, Qty 20+

0

115

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 19

0

116

MTD 710-0289

Hex Bolt 1/4-20 x .5" Lg.
(Superseded to 910-0289)

$3.99

$

In Stock, only 3 left!

0

MTD 731-0954

Steering Bellow
(Superseded to 931-0954)

Note: (Not Shown)

$21.99

$

Usually ships in 3-6 days

0
