13YX79KT211 - Troy-Bilt Horse XP Lawn Tractor (2016) Fuel Tank Parts Diagram

Horse XP Lawn Tractor

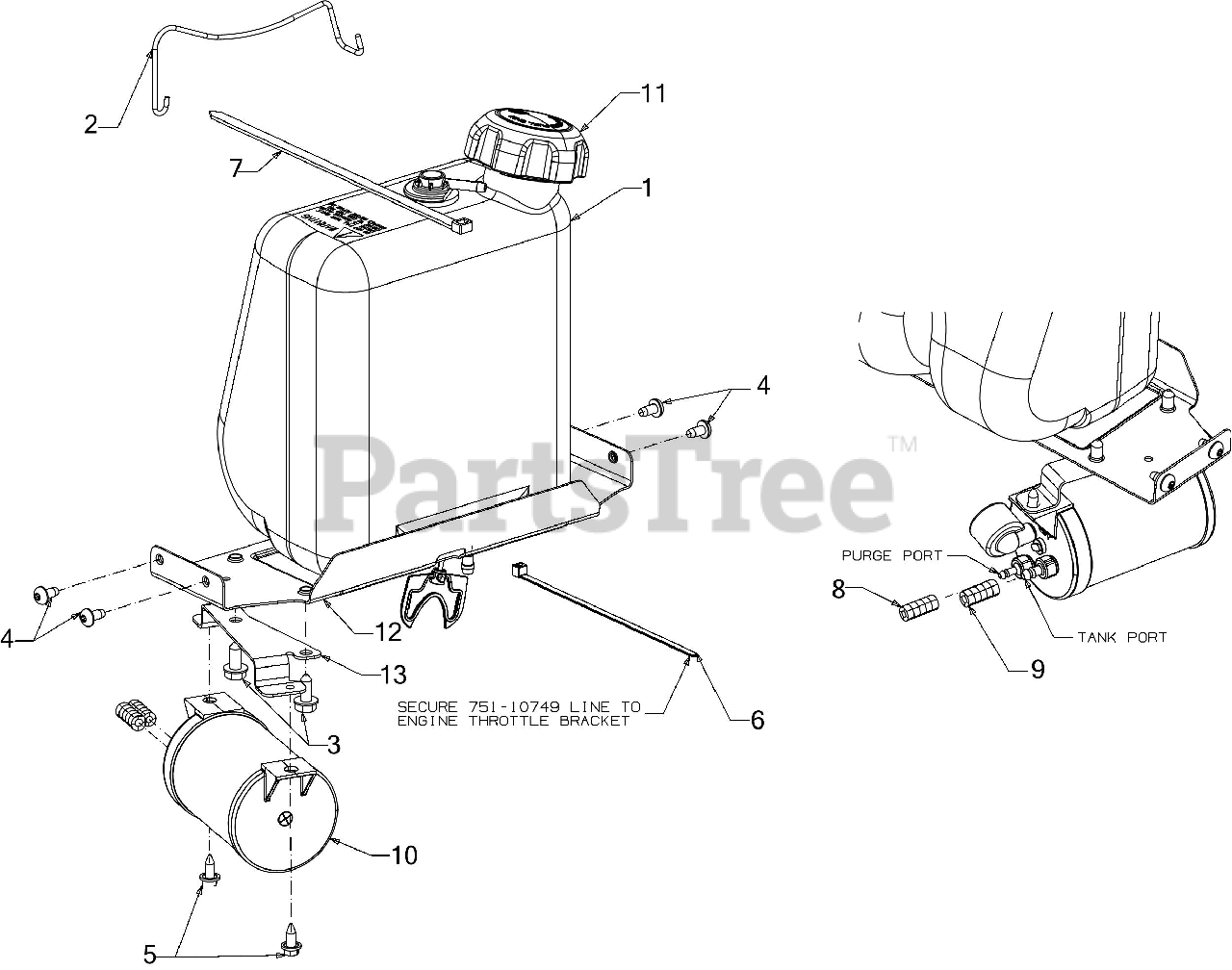

Fuel Tank Parts Diagram

  • Title

1

Troy-Bilt 951-04304

FUEL TANK ASSEMBLY
(Superseded to 951-04304B)

$111.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 735-04081

RUBBER GROMMET 23.0 ID x 35.5 OD

Note: Not Shown

$4.99

$

In Stock, Qty 20+

0

1

Troy-Bilt 951-04304

FUEL TANK ASSEMBLY
(Superseded to 951-04304B)

Note: Not Shown

$111.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 751-12118

ROLLOVER FUEL VALVE

Note: Not Shown

$35.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 683-04448-0637

BATTERY ROD ASSEMBLY

$10.99

$

In Stock, Qty 13

0

3

Troy-Bilt 710-04484

SCREW 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-05070A

SCREW 1/4-20 x .5

$6.99

$

In Stock, Qty 7

0

5

Troy-Bilt 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 725-0157

7" CABLE TIE

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 726-0230

CABLE TIE 36"

$27.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 751-10749-30

FUEL HOSE LOW PERMEATION

$36.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 751-10750-28

FUEL HOSE LOW PERMEATION

$

$

Not available

10

Troy-Bilt 951-12372

CARBON CANISTER
(Superseded to 951-12372A)

$71.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 951-12426

FUEL CAP W/TETHER
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-04584B-0637

FUEL TANK SUPPORT BRACKET

$19.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 783-09337

CARBON CANISTER BRACKET

Variations

Troy-Bilt 783-09337-0637

BRKT-CARBON CNSTR - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0
