13YX79KT211 - Troy-Bilt Horse XP Lawn Tractor (2014) Mower Deck Parts Diagram

Horse XP Lawn Tractor

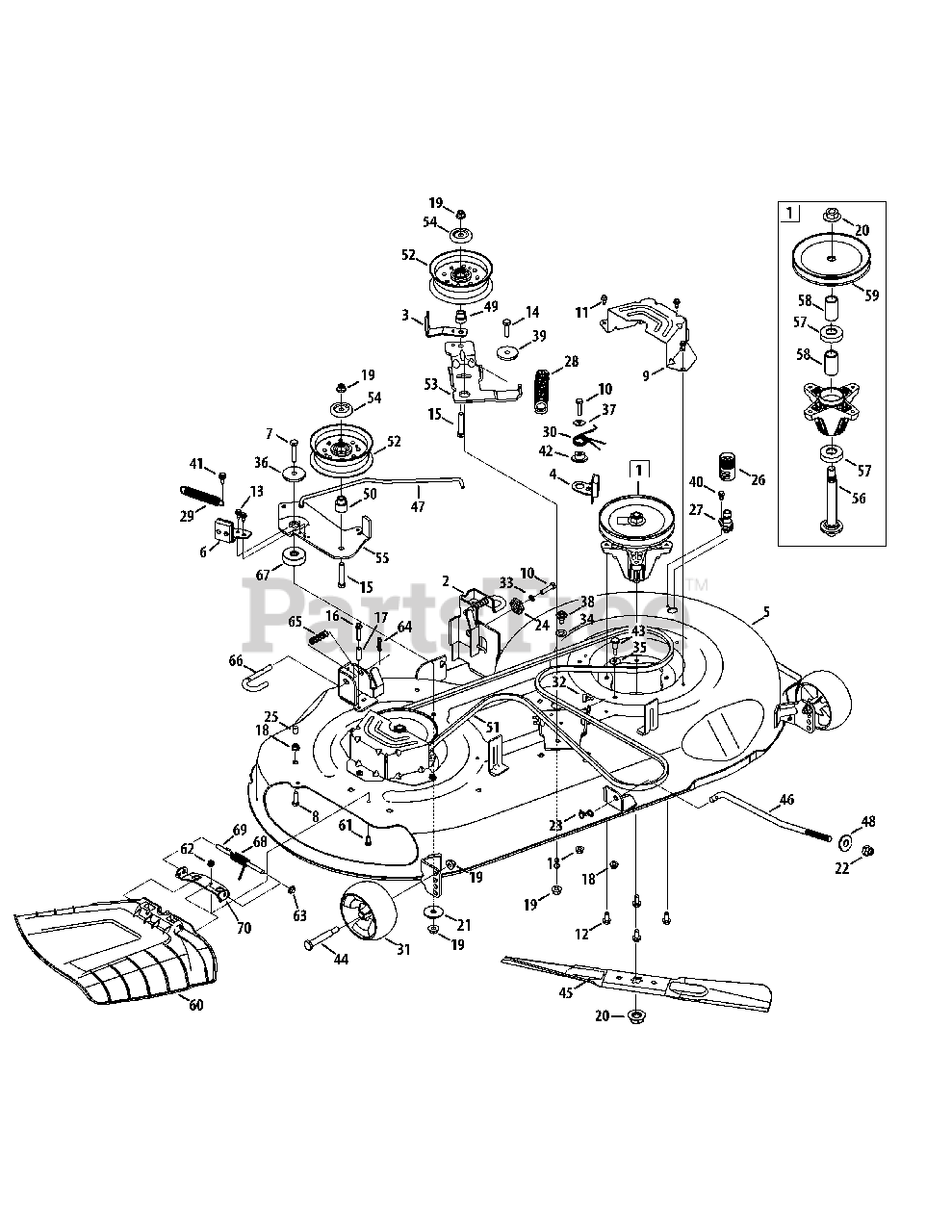

Mower Deck Parts Diagram

  • Title

1

Troy-Bilt 918-06989

Spindle Assembly, Pul 6.74 Dia

$104.99

$

In Stock, only 4 left!

0

2

Troy-Bilt 683-0254B-0637

Bracket Assembly, Deck Hanger, LH
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 783-08690-0637

Belt Keeper
(Superseded to 783-08690A-0637)

$12.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 983-05183

Brake Assembly, Deck, LH
(Superseded to 753-09904A)

$106.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 983-05196-0637

Deck , 46t, 2w
(Superseded to 983-05196A-0637)

$695.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 983-05182

Brake Assembly, Deck, RH
(Superseded to 983-05182B)

$99.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 783-08547-0637

Deck Belt Cover, 46

$14.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 19

0

11

Troy-Bilt 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-1260A

Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 5

0

14

Troy-Bilt 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-3096

Hex Head Screw, 3/8-16 x 2.00

$7.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 710-0809

Screw, 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

17

Troy-Bilt 750-0566A

Spacer, .260 x .375 x 1.030

$9.99

$

In Stock, only 1 left!

0

18

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 936-3039

Flat Washer, .406 x 1.500 x .105
(Superseded to 736-3039)

$

$

Not available

22

Troy-Bilt 712-04243

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 10

0

24

Troy-Bilt 917-04074

Gear, Deck Adjustment

$13.99

$

In Stock, Qty 9

0

25

Troy-Bilt 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0

26

Troy-Bilt 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 731-07487

Deck Wash Nozzle

$4.49

$

In Stock, only 1 left!

0

28

Troy-Bilt 732-04909

Spring, Extension, 1.05 X 6.346

$13.99

$

In Stock, Qty 18

0

29

Troy-Bilt 732-04629

Spring, Extension, .750 x .477

$28.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 732-05151A

Torsion Spring, LH

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 734-04155

Wheel, Deck, 5.0 Dia Ball

$20.99

$

In Stock, Qty 20+

0

32

Troy-Bilt 735-0271A

Bumper, .62 Dia X .3

$8.99

$

In Stock, only 1 left!

0

33

Troy-Bilt 936-0119

Washer, Lock, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 936-0226

Washer, Flat, .474 x .879 x .064

$3.99

$

In Stock, only 2 left!

0

35

Troy-Bilt 736-0371

Washer, Flat, .343 X .880 X .062

$4.49

$

In Stock, only 3 left!

0

36

Troy-Bilt 738-05082

Shoulder Spacer, .970 X .190

$8.49

$

In Stock, only 2 left!

0

37

Troy-Bilt 736-3078

Flat Washer, .344 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 738-04091A

Shoulder Spacer, .43 x .29, 5/16-18

$3.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 738-04162C

Shoulder Spacer, .8840 X .190

$13.99

$

In Stock, Qty 20+

0

40

Troy-Bilt 738-04278

Shoulder Screw, 1/4-20 x 0.50

$6.99

$

In Stock, only 1 left!

0

41

Troy-Bilt 738-04184A

Shoulder Screw, .368 x .113 x 1/4-20

$6.99

$

In Stock, Qty 5

0

42

Troy-Bilt 738-05088

Shoulder Spacer, .75 x .145

$4.49

$

Usually ships in 3-6 days

0

43

Troy-Bilt 738-0754

Shoulder Screw, .437 Dia. X .54

$4.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

45

Troy-Bilt 942-04290

Blade, Cut, 23.25" 2-In-1
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 747-05141A

Rod, Lift, Deck, Medium
(Superseded to 747-05141B)

$22.99

$

In Stock, Qty 14

0

47

Troy-Bilt 747-06538

Brake Rod

$14.99

$

In Stock, Qty 11

0

48

Troy-Bilt 748-04069

Pivot Cup, Deck List
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 10

0

49

Troy-Bilt 748-05029A

Shoulder Spacer, Idler

$4.99

$

In Stock, Qty 20+

0

50

Troy-Bilt 748-05037A

Shoulder Spacer, Pivot Idler
(Superseded to 748-05037B)

$5.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 954-04219

Belt, V-Typ, A Sec

$50.99

$

In Stock, Qty 20+

0

52

Troy-Bilt 756-05034

Pulley, Idler, 4.50"Dia
(Superseded to 756-05034A)

$45.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 783-08618

Bracket, Idler, 46" Lh

$25.99

$

In Stock, only 4 left!

0

54

Troy-Bilt 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

55

Troy-Bilt 783-08654B

Deck Idler Bracket
(Superseded to 783-08654C)

$71.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 738-1186A

Spindle Shaft, 6.05 LG.

$49.99

$

In Stock, Qty 14

0

57

Troy-Bilt 941-0919B

Ball Bearing, .787ID X 1.85 ODX.551

$21.99

$

In Stock, Qty 20+

0

58

Troy-Bilt 750-04936

Spacer, .792 X 1.060 X 1.860 LG

$6.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 756-05030

Deck Pulley, 6.74 DIA

$25.99

$

In Stock, Qty 6

0

60

Troy-Bilt 631-04354B

Chute Deflector Assembly
(Superseded to 631-04354C)

$43.99

$

In Stock, Qty 20+

0

61

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

63

Troy-Bilt 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 2 left!

0

64

Troy-Bilt 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

65

Troy-Bilt 732-04652

Spring, Compression, .535 x 1.751

$6.99

$

In Stock, only 2 left!

0

66

Troy-Bilt 747-1116

Rod, Deck Release

$12.99

$

In Stock, Qty 6

0

67

Troy-Bilt 750-06184

Spacer, .385 ID x 1.75 OD x .585

$11.99

$

In Stock, only 1 left!

0

68

Troy-Bilt 732-05261

Spring, Torsion, .440 ID x 1.75

$5.99

$

In Stock, Qty 20+

0

69

Troy-Bilt 747-06290B

Hinge Pin

$4.49

$

In Stock, Qty 20+

0

70

Troy-Bilt 783-08504A

Bracket, Chute, 42"
(Superseded to 783-08504B)

Variations

Troy-Bilt 783-08504A-0637

Deflector Chute Mounting Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 5

0

$14.99

$

In Stock, Qty 5

0
