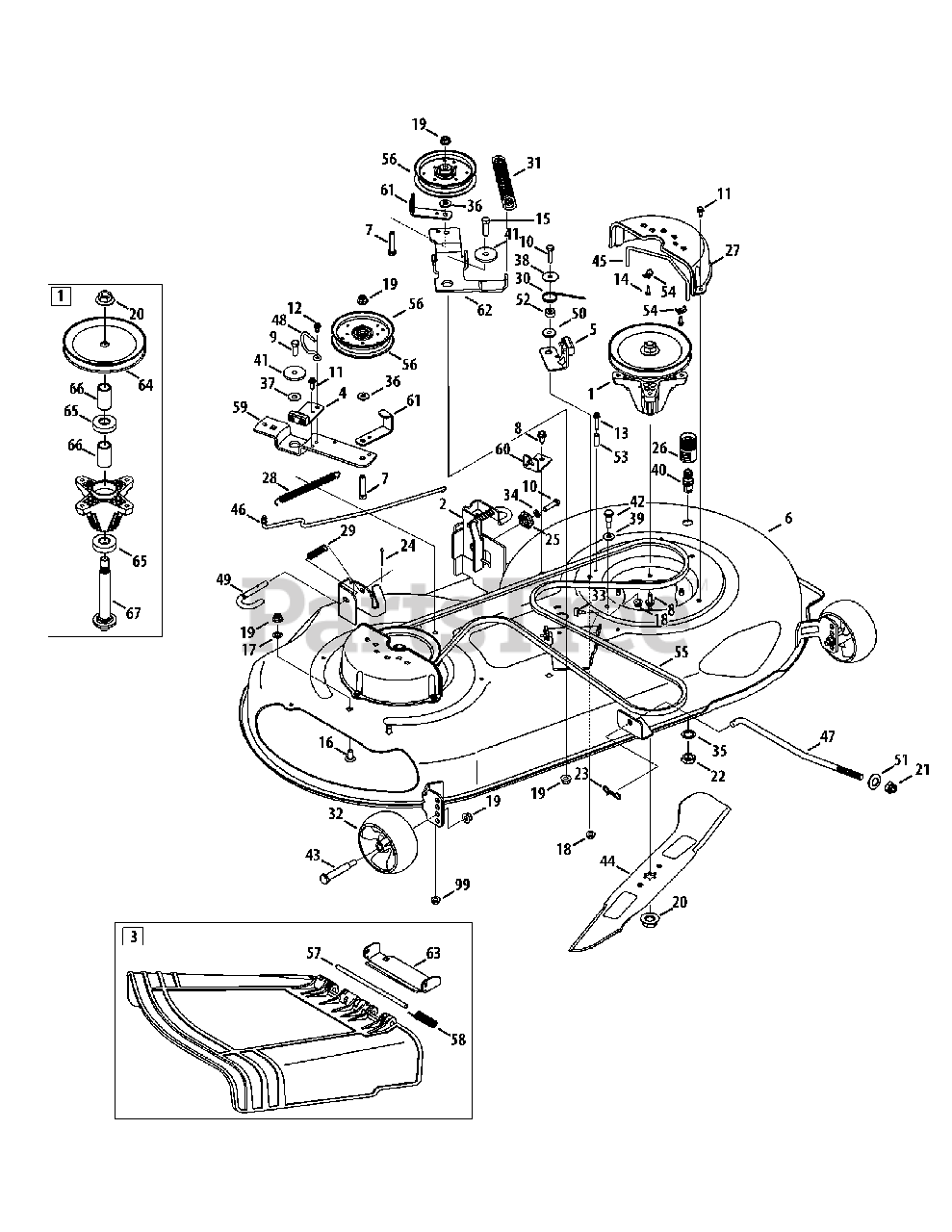

13WX79KT211 - Troy-Bilt Horse XP Lawn Tractor (2011) Mower Deck Parts Diagram

Horse XP Lawn Tractor

Mower Deck Parts Diagram

  • Title

1

Troy-Bilt 918-04865A

Spindle Assembly

$147.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 683-0254B-0637

Deck Hanger Bracket Assembly
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 631-04288

Chute Deflector Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 983-04511

Brake Assembly

$63.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 983-04525

Brake Assembly

$45.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 983-04704-0637

Deck Asm 46t 2w
(Superseded to 753-06766)

$464.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-0347

Screw 3/8-16 1.75 Gr5 Std

$5.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-04484

Tap Screw, Ind. Washer, 5/16-18 .750

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0514

Hex Head Screw, 3/8-16 1.00

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0528

Hex Head Screw, 5/16-18 1.25

$4.49

$

In Stock, Qty 19

0

11

Troy-Bilt 710-0599

Tap Screw, Ind. Washer, 1/4-20 0.500

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0642

Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-0778

Screw, 1/4-20 x 1.50

$4.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 710-1003

Screw, #10-16
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-3005

Screw 3/8-16 1.25 Gr5 Std

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-3178

Carriage Bolt, 3/8-16 0.75

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-0229

Push Nut, 3/8

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-04063

Nut, Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-04065

Flangelock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-0417A

Flange Nut, 5/8-18

$6.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-04243

Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 912-0641

Hex Nut, M16-1.5 DIN 936
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

23

Troy-Bilt 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 12

0

24

Troy-Bilt 914-0470

Cotter Pin, 1/8 X 1.25
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 917-04074

Deck Gear

$13.99

$

In Stock, Qty 9

0

26

Troy-Bilt 921-04041

Water Nozzle Adaptor

$23.99

$

In Stock, Qty 20+

0

26

Troy-Bilt 738-04146

Plug, Deck Wash

$9.49

$

Usually ships in 3-6 days

0

27

Troy-Bilt 731-06496

Belt Cover

$23.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 932-0384

Extension Spring, .62 DIA. X 6.12 LG

$14.99

$

In Stock, Qty 11

0

29

Troy-Bilt 732-04652

Compression Spring, .535 OD X 1.751 LG

$6.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 732-04773

Torsion Spring, .992 x 1.17

$4.49

$

In Stock, Qty 10

0

31

Troy-Bilt 732-04871

Spring, Extn 1.00 X 7.11 75 X .183
(Superseded to 732-04871A)

$19.99

$

Usually ships in 3-6 days

0

32

Troy-Bilt 734-04155

Front Deck Wheel

$20.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 735-0271A

Bumper .62 Dia X .3

$8.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 936-0119

Lock Washer, 5/16

$4.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 736-0225

Lock Washer, 5/8

$4.49

$

In Stock, only 2 left!

0

36

Troy-Bilt 736-0262

Flat Washer, .385 X .870 X .092

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 936-0344

Flat Washer, .385 X 1.0 X .030
(Superseded to 736-0344)

$4.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 736-0362

Flat Washer, .330 X 1.25 X .06

$4.49

$

In Stock, only 4 left!

0

39

Troy-Bilt 736-0371

Washer Flat .343 X .880 X .062

$4.49

$

In Stock, only 3 left!

0

40

Troy-Bilt 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

40

Troy-Bilt 736-0187

Washer,Flat .64 x 1.24 x .06

$4.49

$

In Stock, Qty 20+

0

41

Troy-Bilt 738-04162A

Shoulder Spacer, .8840 X .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 738-0754

Screw Shld .437 Dia. X .54

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 938-3056

Shoulder Bolt, .496 X 2.50 3/8-16

$9.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 942-04290

2-in-1 Cutting Blade
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 747-05011

Belt Keeper Rod

$10.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 747-05052

Brake Rod
(Superseded to 747-05052A)

$16.99

$

In Stock, Qty 14

0

47

Troy-Bilt 747-05141A

Deck Lift Rod
(Superseded to 747-05141B)

$22.99

$

In Stock, Qty 14

0

48

Troy-Bilt 747-05323

Belt Keeper Rod

$14.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 747-1116

Deck Release Handle Rod

$12.99

$

In Stock, Qty 6

0

50

Troy-Bilt 748-0234

Shoulder Spacer

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 748-04069

Deck Lift Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 10

0

52

Troy-Bilt 750-0258

Spacer

$11.99

$

In Stock, only 1 left!

0

53

Troy-Bilt 750-0566A

Spacer, .260 X .375 X 1.030 Lg

$9.99

$

In Stock, only 1 left!

0

54

Troy-Bilt 751B221535

Casing Clamp

$10.99

$

In Stock, Qty 10

0

55

Troy-Bilt 954-04219

V-Belt

$50.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 756-04129B

Idler Pulley, 4.25"DIA
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

57

Troy-Bilt 711-04847B

Hinge Pin

$8.99

$

In Stock, Qty 7

0

58

Troy-Bilt 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 8

0

59

Troy-Bilt 783-05946

Idler Bracket

$38.99

$

In Stock, Qty 9

0

60

Troy-Bilt 783-06243-0637

Deck Engage Cable Bracket

$10.99

$

In Stock, only 2 left!

0

61

Troy-Bilt 783-06368A-0637

4.25 Pulley Belt Guard Bracket

$21.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 783-06981

Bracket Idler 46" LH
(Superseded to 753-06722B)

$53.99

$

In Stock, Qty 6

0

63

Troy-Bilt 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 756-04356

Deck Pulley, 6.93 DIA

$37.99

$

In Stock, only 1 left!

0

65

Troy-Bilt 941-0919

Ball Bearing, .787ID X 1.85 OD X .551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

66

Troy-Bilt 750-04936

Spacer, .792 X 1.060 X 1.860 LG

$6.99

$

In Stock, Qty 20+

0

67

Troy-Bilt 738-1186A

Spindle Shaft, 6.05 LG.

$49.99

$

In Stock, Qty 14
