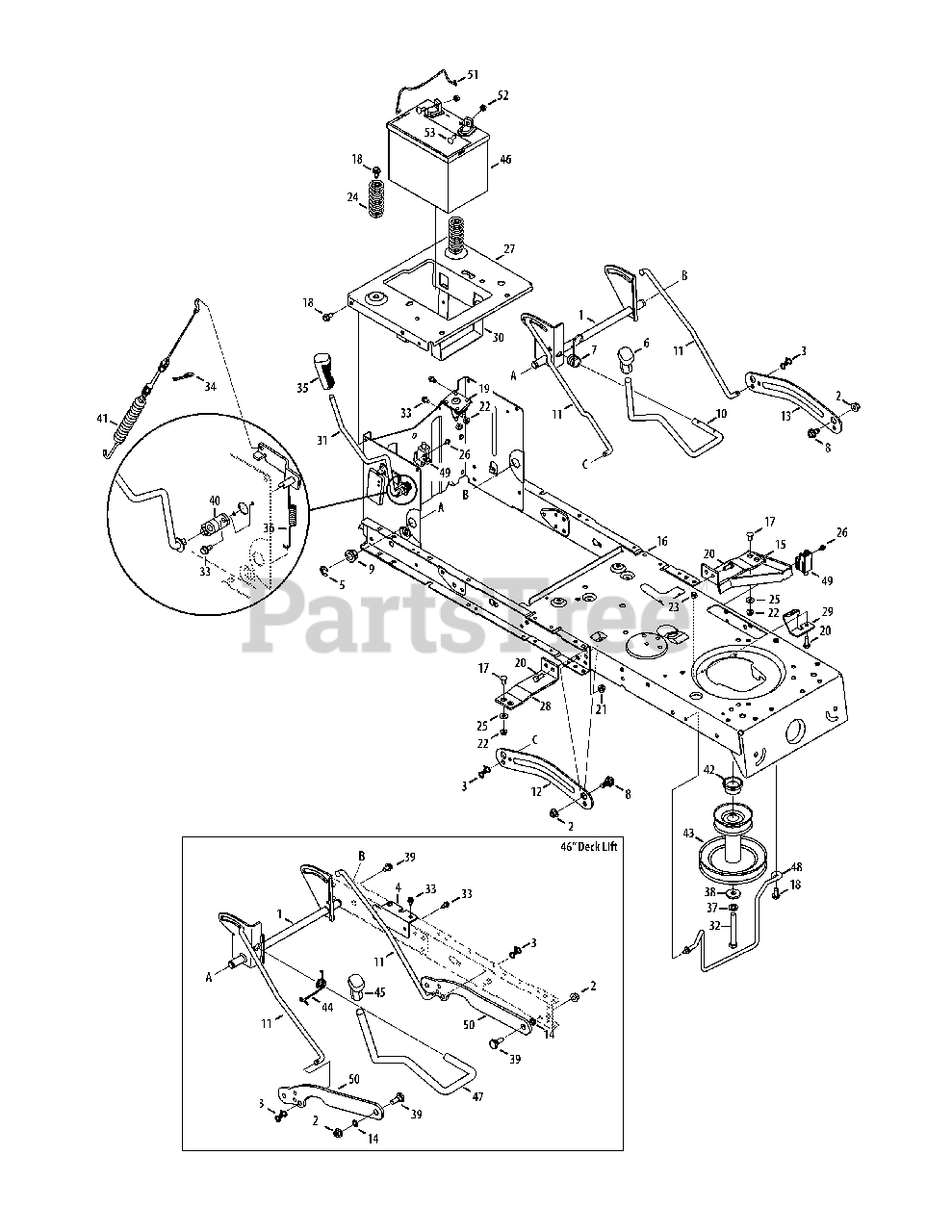

Horse XP Lawn Tractor

Frame & PTO Lift Parts Diagram

  • Title
1

Troy-Bilt 683-04334-0637

Shaft Assembly Lift 46" Deck

$54.99

$

In Stock, only 2 left!

0

2

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, GrF

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 714-04040

Pin, Cotter, Bow Tie

$1.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 783-05389A-0637

Frame Brace Bracket

$8.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 716-0106A

Ring, E-Type, .625 Dia.

$5.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 720-0311

Grip, Handle, 1/2

$15.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 732-04225

Spring, Torsion

$12.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 738-04130

Screw, Shoulder, .625 x .175, 3/8-16
(Superseded to 738-04130A)

$9.49

$

In Stock, Qty 10

0

9

Troy-Bilt 941-0225

Bearing, Hex Flange

$7.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 747-05296

Deck Handle, Lift

$26.99

$

Usually ships in 3-6 days

0

11

$23.99

$

In Stock, Qty 9

0

12

Troy-Bilt 783-04494C-0637

Lift Arm, Deck - RH

$21.99

$

In Stock, Qty 12

0

13

Troy-Bilt 783-04711C-0637

Lift Arm, Deck - LH

$24.99

$

In Stock, Qty 13

0

14

Troy-Bilt 936-0140

Washer, Flat, .385 x .62 x .063
(Superseded to 736-0140)

$

$

Not available

15

Troy-Bilt 683-04195-0637

Support Bracket Assembly

$42.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 683-04649-0637

Frame Assembly
(Superseded to 683-04649B)

$159.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

18

Troy-Bilt 710-04484

Screw, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 725-04439

Solenoid
(Superseded to 725-04439B)

$39.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

22

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, GrF

$3.99

$

In Stock, Qty 20+

0

23

Troy-Bilt 912-0429

Hex Lock Nut, 5/16-18
(Superseded to 712-0429)

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 732-04035

Spring, Compr. , 1.28 OD x 3.125

$10.99

$

In Stock, only 4 left!

0

25

Troy-Bilt 736-0173

Flat Washer, .28 x .74 x .063

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 738-04237A

Shoulder Screw, #10-32 x .500

$6.49

$

In Stock, Qty 7

0

27

Troy-Bilt 783-04548D

Seat Bracket, Frame

Variations

Troy-Bilt 783-04548D-0606

BRACKET-FRAME SEAT - MAJESTIC ORANGE (0606)

$58.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04548D-0637

BRACKET-FRAME SEAT - POWDER BLACK (0637)

$58.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04548D-0638

BRACKET-FRAME SEAT - MTD/TROY-BILT RED (0638)

$54.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04548D-0691

BRACKET-FRAME SEAT - BLACK JACK (0691)

$47.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04548D-0709

BRACKET-FRAME SEAT - MASTERCRAFT GREEN (0709)

$47.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04548D-4062

BRACKET-SEAT FRAME - COOL GRAY (4062)

$47.99

$

Usually ships in 3-6 days

0

$47.99

$

Usually ships in 3-6 days

0

28

Troy-Bilt 783-04637-0637

Bracket, Runing Board

$16.99

$

Usually ships in 3-6 days

0

29

Troy-Bilt 783-04753-0637

Frame Support Bracket

$79.99

$

Usually ships in 3-6 days

0

30

Troy-Bilt 783-04869A-0637

Bracket, Battery

$9.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 647-04096

Handle Assembly, PTO

Variations

Troy-Bilt 647-04096-0637

PTO Handle Assembly, LT - POWDER BLACK (0637)

$41.99

$

In Stock, only 1 left!

0

Troy-Bilt 647-04096-0638

PTO Handle Assembly, LT - MTD/TROY-BILT RED (0638)

$41.99

$

In Stock, only 1 left!

0

Troy-Bilt 647-04096-4008

HANDLE ASM-PTO LT- - WINE RED (4008)

$41.99

$

In Stock, only 1 left!

0

$41.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 710-04608

Screw, 7/16-20, 3.25

$6.99

$

In Stock, Qty 7

0

33

Troy-Bilt 710-0599

Screw, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

34

Troy-Bilt 914-0145

Pin, Click, .092 x 1.64
(Superseded to 714-0145)

$4.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 720-04049A

Grip, Handle, 3/8

$16.99

$

Usually ships in 3-6 days

0

36

Troy-Bilt 732-04276A

Spring, Extension

$9.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 936-0171

Washer, Lock, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

38

Troy-Bilt 736-0322

Washer, Flat, .450 x 1.250 x .164

$9.49

$

In Stock, Qty 7

0

39

Troy-Bilt 938-0380

Bolt, Shldr. .500 x .270 3/8-16
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 741-04119A

Bearing, PTO

$4.99

$

In Stock, Qty 10

0

41

Troy-Bilt 946-04173C

Cable, Deck Engagement
(Superseded to 946-04173E)

$59.99

$

In Stock, Qty 15

0

42

Troy-Bilt 750-0956

Spacer, 1.010 x 1.400 x .825

$19.99

$

In Stock, only 2 left!

0

43

Troy-Bilt 956-04067A

Engine Pulley
(Superseded to 956-04067B)

$81.99

$

In Stock, only 1 left!

0

44

Troy-Bilt 732-04438

Spring, Torsion 46" Deck

$10.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 720-0298

Grip, Handle, 5/8

$43.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 925-1707D

Battery, 155 CCA

$

$

Not available

47

Troy-Bilt 747-04653

Deck Handle, Lift, 46" Deck
(Superseded to 747-04653A)

$45.99

$

In Stock, only 4 left!

0

48

Troy-Bilt 683-04414-0637

Rod, Belt Keeper (46" Deck)

$25.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 725-04363

Switch, Interlock

$15.99

$

In Stock, Qty 13

0

50

Troy-Bilt 783-0678C

Deck Lift Link

Variations

Troy-Bilt 783-0678C-0637

Lift Deck Link - POWDER BLACK (0637)

$29.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0678C-4008

LINK-LIFT DECK - WINE RED (4008)

$29.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-0678C-4044

Lift Deck Link - CRAFTSMAN RED (4044)

$29.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0678C-0606

Lift Deck Link - MAJESTIC ORANGE (0606)

$29.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0678C-0638

LINK-LIFT DECK - MTD/TROY-BILT RED (0638)

$29.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0678C-0691

Lift Deck Link - BLACK JACK (0691)

$29.99

$

In Stock, only 1 left!

0

Troy-Bilt 783-0678C-0709

LINK-LIFT DECK - MASTERCRAFT GREEN (0709)

$29.99

$

In Stock, only 1 left!

0

$24.99

$

Usually ships in 3-6 days

0

51

Troy-Bilt 683-04448-0637

Battery Hold Down Rod

$10.99

$

In Stock, Qty 14

0

52

Troy-Bilt 712-0271

Nut, Sems, 1/4-20

$4.49

$

In Stock, Qty 20+

0

53

Troy-Bilt 710-04666

Screw, Carriage, 1/4-20, .75, Gr5

$6.99

$

In Stock, only 3 left!

0
