13WX79KT066 - Troy-Bilt Horse Lawn Tractor (2012) Mower Deck Parts Diagram

Horse Lawn Tractor

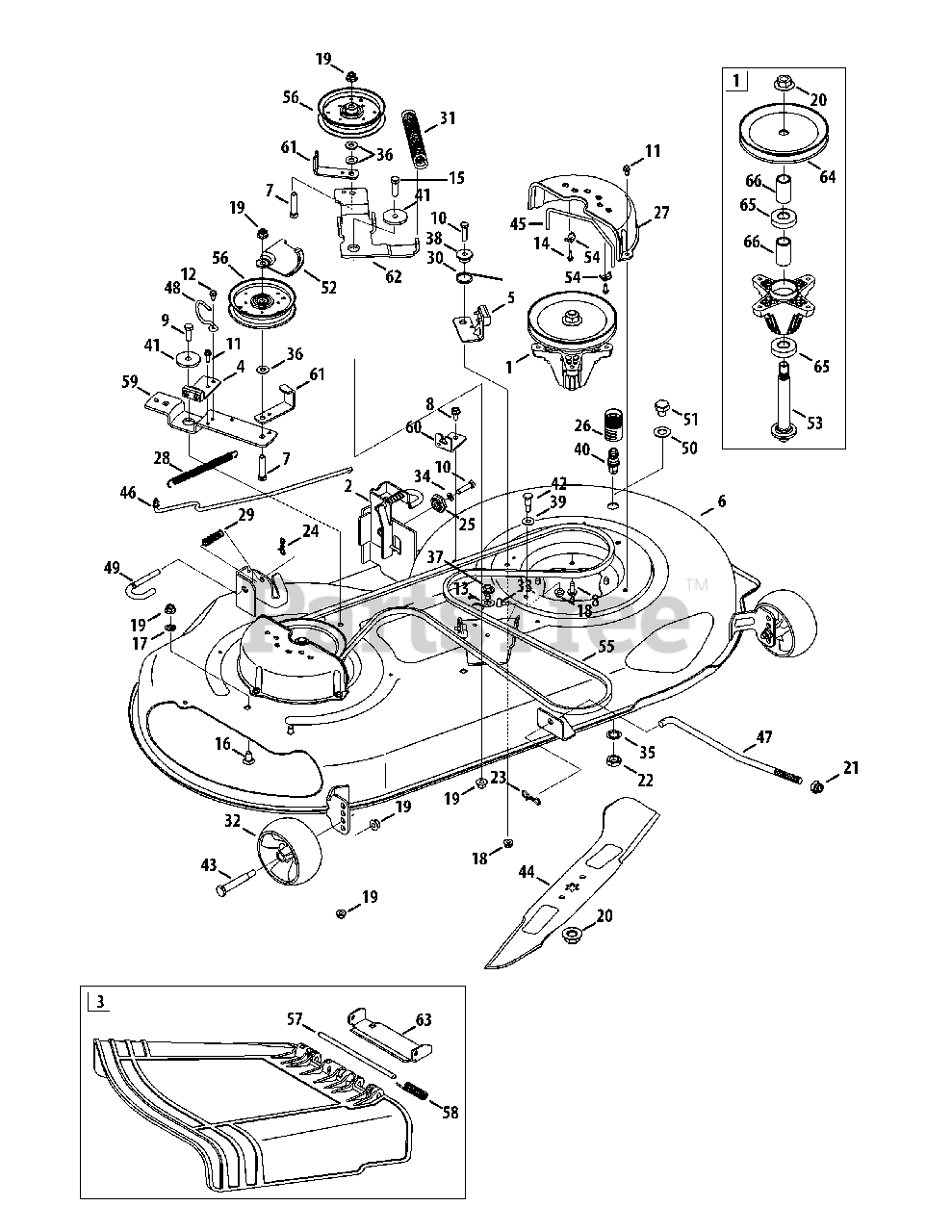

Mower Deck Parts Diagram

  • Title

1

Troy-Bilt 918-04865A

Spindle Assembly, w/Pulley 6.93 Dia

$147.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 683-0254B-0637

Bracket Assembly, Deck Hanger, LH
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 631-04288

Chute Deflector Assembly
(Superseded to 631-05191A)

$56.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 983-04511

Brake Assembly, Deck

$63.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 983-04525

Brake Assembly, Deck

$45.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 753-06766-0637

Deck Assembly, 46"

$574.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-3144

Hex Screw, 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-0514

Hex Screw, 3/8-16, 1.00, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 19

0

11

Troy-Bilt 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-0642

Screw, Self-tapping, 1/4-20, .750

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 936-0226

Washer, Flat, .474 x .879 x .064

$3.99

$

In Stock, only 2 left!

0

14

Troy-Bilt 710-1003

Screw, B, #10-16, 0.625
(Superseded to 710-04669)

$3.49

$

In Stock, Qty 20+

0

15

Troy-Bilt 710-3005

Hex Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-3178

Bolt, Carriage, 3/8-16, 0.75, Gr1

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 712-0229

Nut, Push, 3/8

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Nylon

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Nylon

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 712-04243

Nut, Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 912-0641

Nut, Hex, M16-1.5
(Superseded to 712-0641)

$6.49

$

In Stock, Qty 7

0

23

Troy-Bilt 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 12

0

24

Troy-Bilt 714-04040

Bow-Tie Cotter Pin, 72

$1.49

$

In Stock, Qty 20+

0

25

Troy-Bilt 917-04074

Gear, Deck Adjustment

$13.99

$

In Stock, Qty 9

0

26

Troy-Bilt 921-04041

Water Nozzle Adapter

$23.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 731-06496

Belt Cover, Universal

$23.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 932-0384

Spring, Extension, .62 x 6.12

$14.99

$

In Stock, Qty 11

0

29

Troy-Bilt 732-04652

Spring, Compression, .535 x 1.751

$6.99

$

In Stock, only 2 left!

0

30

Troy-Bilt 732-04840

Spring, Torsion, .992 I.D X 1.17 O.D

$4.49

$

In Stock, Qty 20+

0

31

Troy-Bilt 732-04909

Spring, Extension, 1.05 X 6.346

$13.99

$

In Stock, Qty 18

0

32

Troy-Bilt 734-04155

Wheel, Deck, 5.0 Dia Ball

$20.99

$

In Stock, Qty 20+

0

33

Troy-Bilt 735-0271A

Bumper, .62 Dia X .3

$8.99

$

In Stock, only 1 left!

0

34

Troy-Bilt 936-0119

Washer, Lock, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 736-0225

Washer, Lock, 5/8, Int Tooth

$4.49

$

In Stock, only 2 left!

0

36

Troy-Bilt 736-0262

Washer, Flat, .385 x .870 x .092

$3.99

$

In Stock, Qty 20+

0

37

Troy-Bilt 738-04091A

Shoulder Spacer, .43 x .29, 5/16-18

$3.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 748-04272

Shoulder Spacer, .50 x .145

$7.49

$

In Stock, only 1 left!

0

39

Troy-Bilt 736-0371

Washer, Flat, .343 X .880 X .062

$4.49

$

In Stock, only 3 left!

0

40

Troy-Bilt 737-04003D

Deck Water Nozzle

$23.99

$

In Stock, Qty 6

0

41

Troy-Bilt 738-04162A

Shoulder Spacer, .8840 X .190
(Superseded to 738-04162C)

$13.99

$

In Stock, Qty 20+

0

42

Troy-Bilt 738-0754

Shoulder Screw, .437 Dia. X .54

$4.49

$

In Stock, Qty 20+

0

43

Troy-Bilt 938-3056

Bolt, Shoulder, .496 x 2.50, 3/8-16

$9.49

$

In Stock, Qty 20+

0

44

Troy-Bilt 942-04290

Blade, Cut, 23.25" 2-In-1
(Superseded to 942-04290A)

$34.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 747-05011

Rod, Keeper, Belt

$10.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 747-05052A

Rod, Control, Brake

$16.99

$

In Stock, Qty 14

0

47

Troy-Bilt 747-05141A

Rod, Lift, Deck
(Superseded to 747-05141B)

$22.99

$

In Stock, Qty 14

0

48

Troy-Bilt 747-05323

Rod, Keeper, Belt

$14.99

$

In Stock, only 1 left!

0

49

Troy-Bilt 747-1116

Rod, Deck Release

$12.99

$

In Stock, Qty 6

0

50

Troy-Bilt 736-0187

Washer, Flat, .64 X 1.24 X .06

$4.49

$

In Stock, Qty 20+

0

51

Troy-Bilt 738-04146

Plug, Bolt, M16 X 1.5

$9.49

$

Usually ships in 3-6 days

0

52

Troy-Bilt 783-07183A-0637

Belt Guide

$19.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 738-1186A

Spindle Shaft, 6.05 LG.

$49.99

$

In Stock, Qty 14

0

54

Troy-Bilt 751B221535

Clamp, Casing

$10.99

$

In Stock, Qty 10

0

55

Troy-Bilt 954-04219

Belt, V-Typ, A Sec

$50.99

$

In Stock, Qty 20+

0

56

Troy-Bilt 756-04129B

Pulley, Idler, 4.25"Dia
(Superseded to 753-08171)

$35.99

$

In Stock, Qty 20+

0

57

Troy-Bilt 711-04847B

Hinge Pin

$8.99

$

In Stock, Qty 7

0

58

Troy-Bilt 732-04372

Torsion Spring

$10.99

$

In Stock, Qty 8

0

59

Troy-Bilt 783-05946

Bracket, Idler, Pivot

$38.99

$

In Stock, Qty 9

0

60

Troy-Bilt 783-06243-0637

Bracket, Cable, Deck Engagement

$10.99

$

In Stock, only 2 left!

0

61

Troy-Bilt 783-06368A-0637

Bracket, Guard, Belt, 4.25 Pulley

$21.99

$

In Stock, Qty 20+

0

62

Troy-Bilt 783-07234

Bracket, Idler, Lh

$23.99

$

In Stock, only 2 left!

0

63

Troy-Bilt 783-06074A

Chute Bracket

$32.99

$

In Stock, only 1 left!

0

64

Troy-Bilt 756-04356

Deck Pulley, 6.93 DIA

$37.99

$

In Stock, only 1 left!

0

65

Troy-Bilt 941-0919

Ball Bearing, .787ID X 1.85 ODX.551
(Superseded to 941-0919B)

$21.99

$

In Stock, Qty 20+

0

66

Troy-Bilt 750-04936

Spacer, .792 X 1.060 X 1.860 LG

$6.99

$

In Stock, Qty 20+

0
