13WX79KT011 - Troy-Bilt Horse XP Lawn Tractor (2011) Hood & Grille Assembly Parts Diagram

Horse XP Lawn Tractor

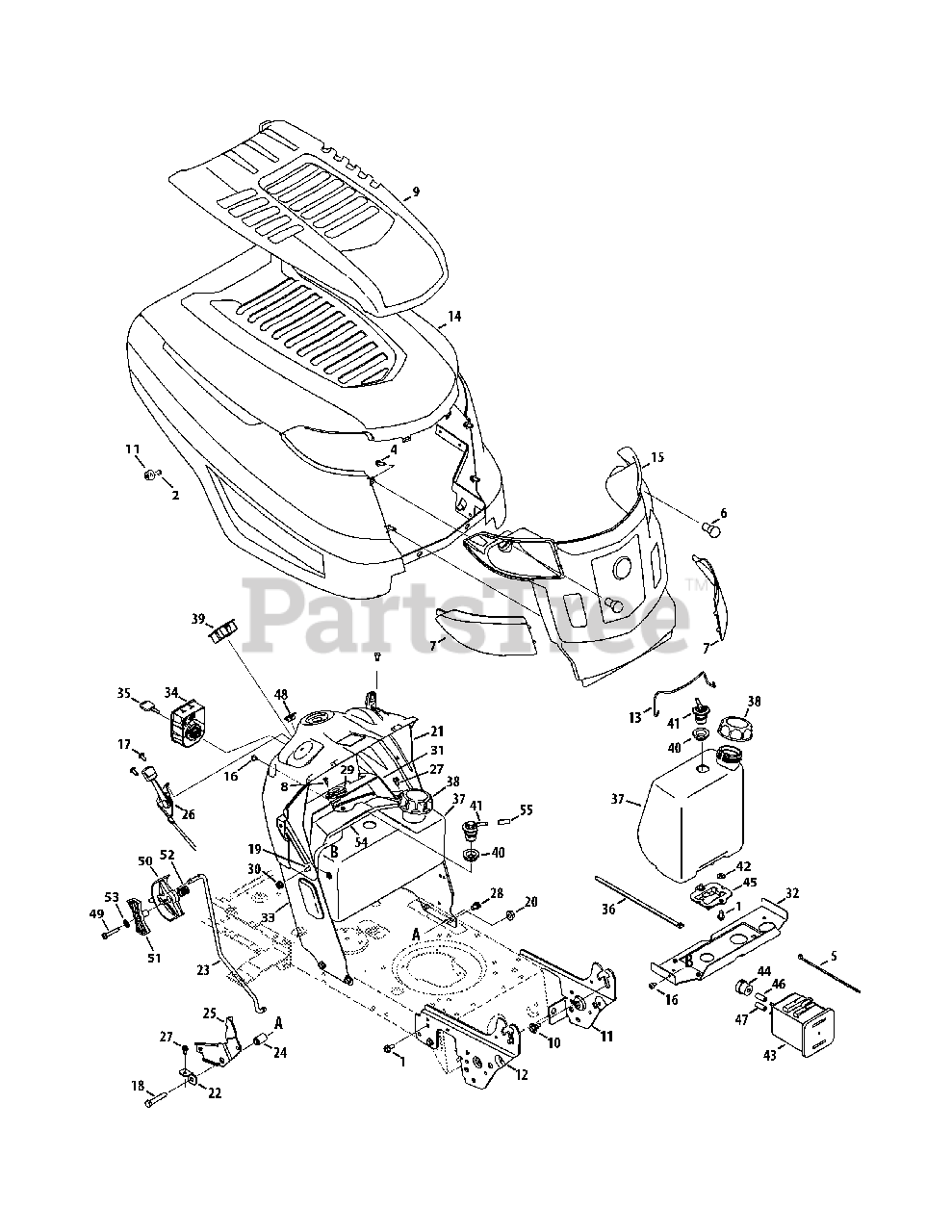

Hood & Grille Assembly Parts Diagram

  • Title

1

Troy-Bilt 710-04484

Screw 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-05281

Screw, #12-16 x 1.25

$3.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 731-06404

K-Style Bumper

$9.49

$

In Stock, only 1 left!

0

4

Troy-Bilt 710-05108

Screw, 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 925-0963

Miniature lamp 12V socket

$7.49

$

In Stock, only 1 left!

0

7

Troy-Bilt 731-06095

Grill Lens - LH

$12.99

$

In Stock, only 1 left!

0

7

Troy-Bilt 731-06096

Grill Lens - RH

$12.99

$

In Stock, only 2 left!

0

8

Troy-Bilt 910-0224

Screw, #10-16 x .500

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 731-06194A

Hood Scoop
(Superseded to 731-06194B)

$56.99

$

Usually ships in 3-6 days

0

10

Troy-Bilt 738-04091A

Shoulder Screw .43 x .29

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 783-05327B-0637

Suppport Bracket LH

$40.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 783-05328A-0637

Suppport Bracket RH
(Superseded to 783-05328B-0637)

$42.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 683-04448-0637

Battery Rod

$10.99

$

In Stock, Qty 14

0

14

Troy-Bilt 683-04441-4033

Hood
(Superseded to 683-04441A-4033)

$332.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 631-04272

Grill

$70.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 710-05070

Screw, 1/4-20 x .500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

17

Troy-Bilt 710-04483

Screw 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-3144

Hex Screw 3/8-16 x 2.00

$4.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 710-3025

Hex Screw, 5/16-18 x .625

$3.99

$

In Stock, Qty 8

0

20

Troy-Bilt 712-04065

Flange Lock Nut 3/8-16

$3.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 931-07770

Dash, Upper
(Superseded to 931-07770A)

$45.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 783-06823

Speed Latch Tab

$17.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 747-05398

Speed Control Rod

$11.99

$

In Stock, only 1 left!

0

24

Troy-Bilt 750-04465B

Flange Spacer .39 x .671 x 1.095

$4.49

$

In Stock, only 2 left!

0

25

MTD 783-04862

Transmission Speed Latch

$

$

Not available

26

Troy-Bilt 746-04364

Throttle/Choke Control Cable

$48.99

$

In Stock, only 3 left!

0

27

Troy-Bilt 710-0599

Hex Screw Washer 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

28

Troy-Bilt 710-0604A

Screw 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 741-0587

Bearing, .628 ID x 1.36

$4.49

$

In Stock, Qty 10

0

30

Troy-Bilt 712-04063

Flange lock Nut 5/16-18

$3.99

$

In Stock, Qty 5

0

31

Troy-Bilt 783-06785-0637

Bracket, Steering Support
(Superseded to 783-06785C-0637)

$9.99

$

In Stock, only 1 left!

0

32

Troy-Bilt 783-04584B-0637

Gas Tank Support Bracket

$19.99

$

Usually ships in 3-6 days

0

33

Troy-Bilt 783-06656-0637

Dash, Lower
(Superseded to 783-06656D-0637)

$61.99

$

Usually ships in 3-6 days

0

34

Troy-Bilt 925-04227B

Key Switch Module
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

35

Troy-Bilt 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

36

Troy-Bilt 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

37

Troy-Bilt 951-04295

Fuel Tank, 2 Gallons, EPA
(Superseded to 951-04295A)

Note: (13WX79KT011 Models)

$186.99

$

Usually ships in 3-6 days

0

37

Troy-Bilt 951-04304

Fuel Tank, 1.36 Gallon, CARB
(Superseded to 951-04304B)

Note: (13WX79KT211 Models)

$111.99

$

In Stock, only 1 left!

0

38

Troy-Bilt 951-12179

Fuel Cap
(Superseded to 951-12179C)

Note: (13WX79KT011 Models)

$38.99

$

In Stock, only 2 left!

0

38

Troy-Bilt 951-10947

Fuel Cap, CARB
(Superseded to 951-12426B)

Note: (13WX79KT211 Models)

$41.99

$

Usually ships in 3-6 days

0

39

Troy-Bilt 925-04156

Ammeter Monitor Indicator

$29.99

$

In Stock, only 1 left!

0

40

Troy-Bilt 735-04081

Rubber Grommet

Note: (13WX79KT211 Models)

$4.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 751-12118

Rollover Valve

Note: (13WX79KT211 Models)

$35.99

$

In Stock, only 2 left!

0

42

Troy-Bilt 936-3008

Washer, Flat, .344 x .750 x .120

Note: (13WX79KT211 Models)

$6.99

$

Usually ships in 3-6 days

0

43

Troy-Bilt 951-10589

Canister, Carbon, 5 Gallon

Note: (13WX79KT211 Models)

$72.99

$

Usually ships in 3-6 days

0

44

Troy-Bilt 951-10590

Filter, Vent, Canister

Note: (13WX79KT211 Models)

$15.99

$

Usually ships in 3-6 days

0

45

Troy-Bilt 951-10610

Bracket., Adapter, Canister

Note: (13WX79KT211 Models)

$23.99

$

Usually ships in 3-6 days

0

46

Troy-Bilt 751-10749

Hose, Fuel, Low Perm., White

Note: (13WX79KT211 Models)

$0.99

$

Usually ships in 3-6 days

0

47

Troy-Bilt 751-10750

Hose, Fuel, Low Perm., Yellow

Note: (13WX79KT211 Models)

$1.49

$

Usually ships in 3-6 days

0

48

Troy-Bilt 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

49

Troy-Bilt 710-0778

Hex Washer Screw, 1/4-20 x 1.50

$4.49

$

In Stock, only 1 left!

0

50

Troy-Bilt 731-07885

Shift Lever
(Superseded to 731-07885B)

$11.99

$

In Stock, only 3 left!

0

51

Troy-Bilt 731-07966

Index Control
(Superseded to 731-07966A)

$6.49

$

In Stock, only 1 left!

0

52

Troy-Bilt 732-04800

Compr. Spring, .72 OD x .78

$3.99

$

Usually ships in 3-6 days

0

53

Troy-Bilt 736-3006

Lock Washer, 1/4

$6.49

$

Usually ships in 3-6 days

0

54

Troy-Bilt 747-05373

Fuel Tank Clamp Rod

$11.99

$

Usually ships in 3-6 days

0

55

Troy-Bilt 751-12089-28

Hose Vent, 3/16 EPA

$8.99

$

In Stock, only 1 left!

0

Troy-Bilt 925-04085

Harness, LT-5, RMC,Dual
(Superseded to 925-04432M)

Note: (Not shown)

$143.99

$

Usually ships in 3-6 days

0

Troy-Bilt 725-04469

Harness, Jumper., Amtr.

Note: (Not shown)

$18.99

$

Usually ships in 3-6 days

0
