13WX78KS066 - Troy-Bilt Bronco Lawn Tractor (2012) Seat & Fender Parts Diagram

Bronco Lawn Tractor

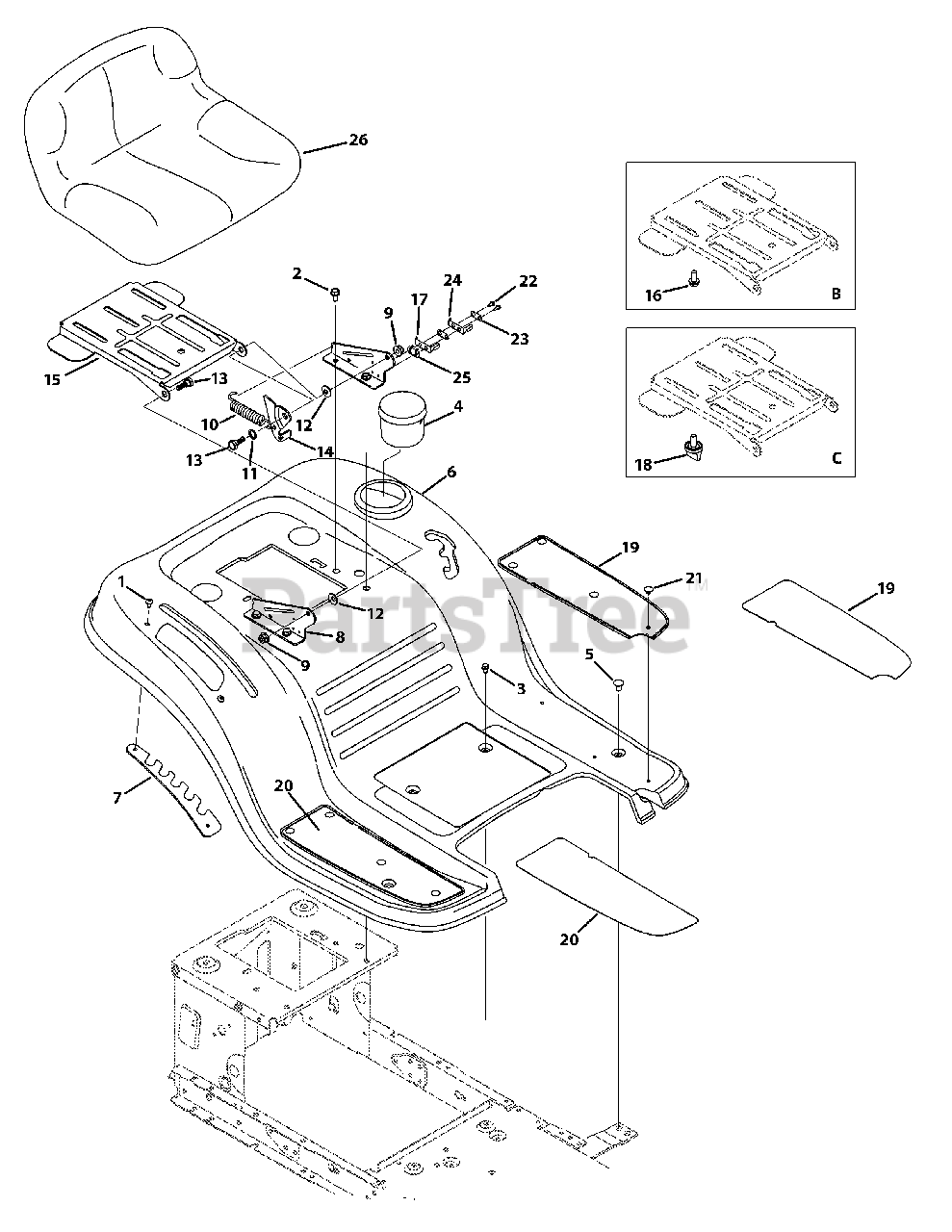

Seat & Fender Parts Diagram

  • Title

1

Troy-Bilt 710-05070

Screw, 1/4-20 x .500
(Superseded to 710-05070A)

$6.99

$

In Stock, Qty 7

0

2

Troy-Bilt 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-0599

Screw Pan Torx Head, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 731-04591A

Cup Holder

$15.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 710-0134

Screw Carriage, 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 783-04587D

Fender - Red

Variations

Troy-Bilt 783-04587D-0638

FENDER-TRANS LT-5 - MTD/TROY-BILT RED (0638)

$421.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-0606

FENDER-TRANS LT-5 - MAJESTIC ORANGE (0606)

$421.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-0637

FENDER-TRANS LT-5 - POWDER BLACK (0637)

$421.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-0650

FENDER-TRANS LT-5 - RED METALLIC (0650)

$421.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-0662

FENDER-TRANS LT-5 - OYSTER GRAY (0662)

$341.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-0665

FENDER-TRANS LT-5 - YARDMAN GREEN (0665)

$366.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-0691

FENDER-TRANS LT-5 - BLACK JACK (0691)

$421.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-0709

FENDER-TRANS LT-5 - MASTERCRAFT GREEN (0709)

$341.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-4021

FENDER-TRANS LT-5 - CUB YELLOW 2 (4021)

$385.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-4038

FENDER-TRANS LT-5 - DAY ORANGE (4038)

$311.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-4043

FENDER-TRANS LT-5 - CRAFTSMAN METALLIC GRAY (4043)

$392.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-4044

FENDER-TRANS LT-5 - CRAFTSMAN RED (4044)

$421.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-4062

FENDER-TRANS LT-5 - COOL GRAY (4062)

$341.99

$

Usually ships in 3-6 days

0

Troy-Bilt 783-04587D-0729

FENDER-TRANS LT-5 - STORM GRAY (0729)

$

$

Not available

$334.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 783-04843-0637

Lift Adjuster Bracket - Powder Black

$37.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 783-1489D-0637

Seat Mount Bracket - Powder Black

$23.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 732-1184

Extension Springing

$11.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 936-0108

Flat Washerer, .510x .750 x .033

$6.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 736-0242

Bell Washerer, .340 x .872 x .060

$4.49

$

In Stock, Qty 20+

0

13

Troy-Bilt 938-0296

Shoulder Screw, 5/16-18 x .437 x .268
(Superseded to 738-0296)

$4.49

$

In Stock, Qty 20+

0

14

MTD 783-0212A-0638

Lift Seat Bracket

$

$

Not available

15

Troy-Bilt 783-04081D-0637

Pivot Seat Manual Adjust Bracket

$41.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 710-04482

Hex Head Flange, 3/8-16 x .875

$4.49

$

In Stock, Qty 20+

0

17

Troy-Bilt 725-1439

Inner Seat Springing

$8.49

$

In Stock, Qty 10

0

18

Troy-Bilt 720-04061

Knob, 3/8-16 x .875

$5.49

$

In Stock, Qty 20+

0

19

Troy-Bilt 735-04047

Foot Pad, LH

$18.99

$

In Stock, only 1 left!

0

19

Troy-Bilt 723-04026

Foot Pad, Abrasive, LH

$33.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 735-04048

Foot Pad, RH

$19.99

$

In Stock, only 3 left!

0

20

Troy-Bilt 723-04025

Foot Pad, Abrasive, RH

$33.99

$

In Stock, only 1 left!

0

21

Troy-Bilt 726-3046

Ratchet Clip, .250 x .500

$3.99

$

In Stock, Qty 16

0

22

Troy-Bilt 710-0227

Screw, 8-18 x .500

$4.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 726-0279

Insulator Plate

$3.99

$

In Stock, Qty 8

0

24

Troy-Bilt 925-1303

Outer Seat Springing

$6.49

$

In Stock, Qty 7

0

25

Troy-Bilt 726-0278

Insulator Boss Plate

$6.99

$

In Stock, Qty 10

0

26

Troy-Bilt 757-04083

Med Back Seat, Black, Set-up B or C
(Superseded to 757-05229)

$231.99

$

Usually ships in 3-6 days

0
