13WQA2KW011 - Troy-Bilt Super Bronco 54" Lawn Tractor (2015) Front Axle Parts Diagram

Super Bronco 54" Lawn Tractor

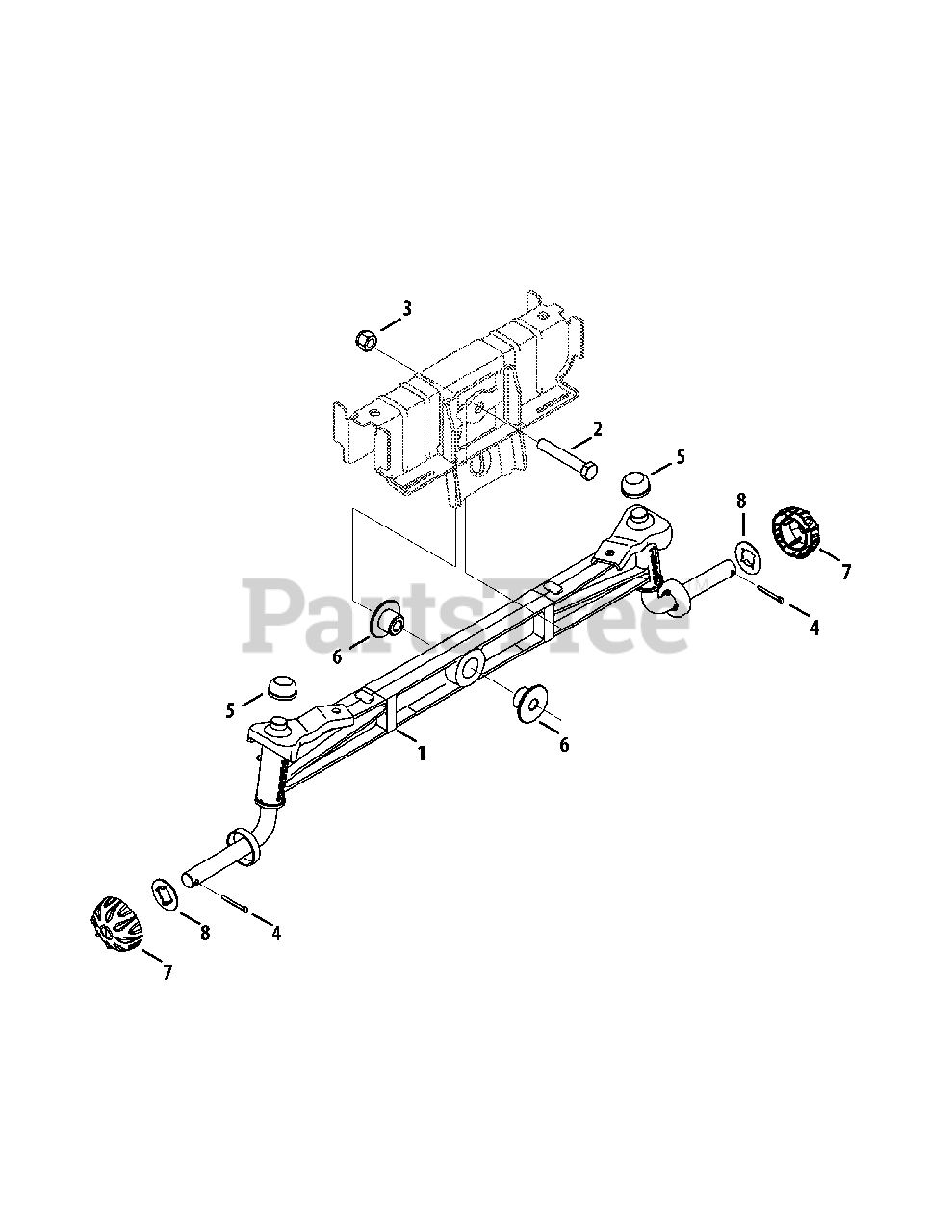

Front Axle Parts Diagram

  • Title
1

Troy-Bilt 983-05145

Front Axle Assembly

$315.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 710-0182

Hex Cap Screw, 1/2-13 x 3.00
(Superseded to 710-0182A)

$7.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 712-3083

Nut, Hex Lock, 1/2-13

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 714-0162

Pin, Cotter, 5/32, 1.25

$4.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 726-0341

Push Cap, 3/4

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 738-05056

Shoulder Spacer, 1.00 x .515 x .760

$8.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 736-04228A

Washer, Flat, .350 x 1.559 x .062
(Superseded to 736-04228B)

$5.49

$

In Stock, Qty 20+

0
