13WQA2KQ011 - Troy-Bilt Super Bronco 50" Lawn Tractor (2015) Steering Parts Diagram

Super Bronco 50" Lawn Tractor

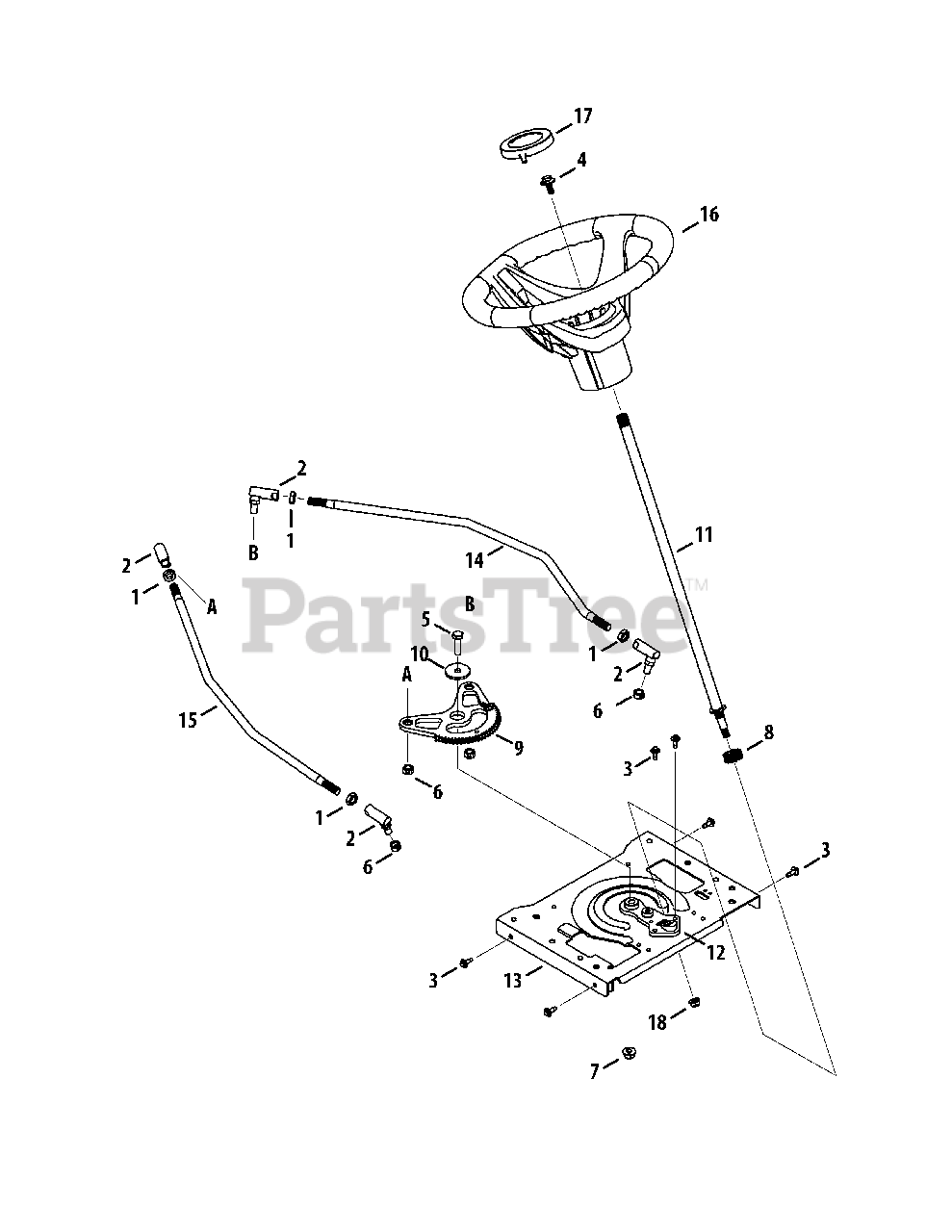

Steering Parts Diagram

  • Title

1

Troy-Bilt 712-05093

Jam Nut, 7/16-20

$4.49

$

In Stock, Qty 12

0

2

Troy-Bilt 723-05009

Ball Joint, 7/16-20, Lock

$20.99

$

In Stock, only 2 left!

0

3

Troy-Bilt 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 10

0

4

Troy-Bilt 710-06154A

Screw, 5/16-24 x .850
(Superseded to 710-06154B)

$4.49

$

In Stock, Qty 9

0

5

Troy-Bilt 710-3005

Hex Cap Screw, 3/8-16 x 1.25

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 912-0214

Nut, Hex Lock, 3/8-24, Grb
(Superseded to 712-0214)

$6.49

$

In Stock, only 2 left!

0

7

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Grf,

$3.99

$

In Stock, Qty 20+

0

8

Troy-Bilt 717-05193A

Pinion Gear, 13T
(Superseded to 717-05193B)

$11.99

$

In Stock, only 4 left!

0

9

Troy-Bilt 717-05225

Steering Gear
(Superseded to 717-05225C)

$72.99

$

In Stock, Qty 6

0

10

Troy-Bilt 736-04294

Flat Washer, .390 x 2.490 x .119

$7.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 738-05043

Shaft, Steering, .625 OD x 20

$55.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 748-05071

Steering Support
(Superseded to 748-05071B)

$63.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 783-08386

Steering Mounting Plate
(Superseded to 783-08386B)

Variations

Troy-Bilt 783-08386-0637

Steering Mounting Plate - POWDER BLACK (0637)

$39.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 747-06456

Steering Rod, LH

$33.99

$

In Stock, only 1 left!

0

15

Troy-Bilt 747-06457

Steering Rod, RH

$33.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 631-05102

Steering Wheel
(Superseded to 631-05102A)

$91.99

$

In Stock, only 1 left!

0

17

Troy-Bilt 731-11014

Cap, Steering Wheel
(Superseded to 731-11094)

$11.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0
