13WM77KS011 - Troy-Bilt Pony Lawn Tractor (2015) Mower Deck 42-Inch Parts Diagram

Pony Lawn Tractor

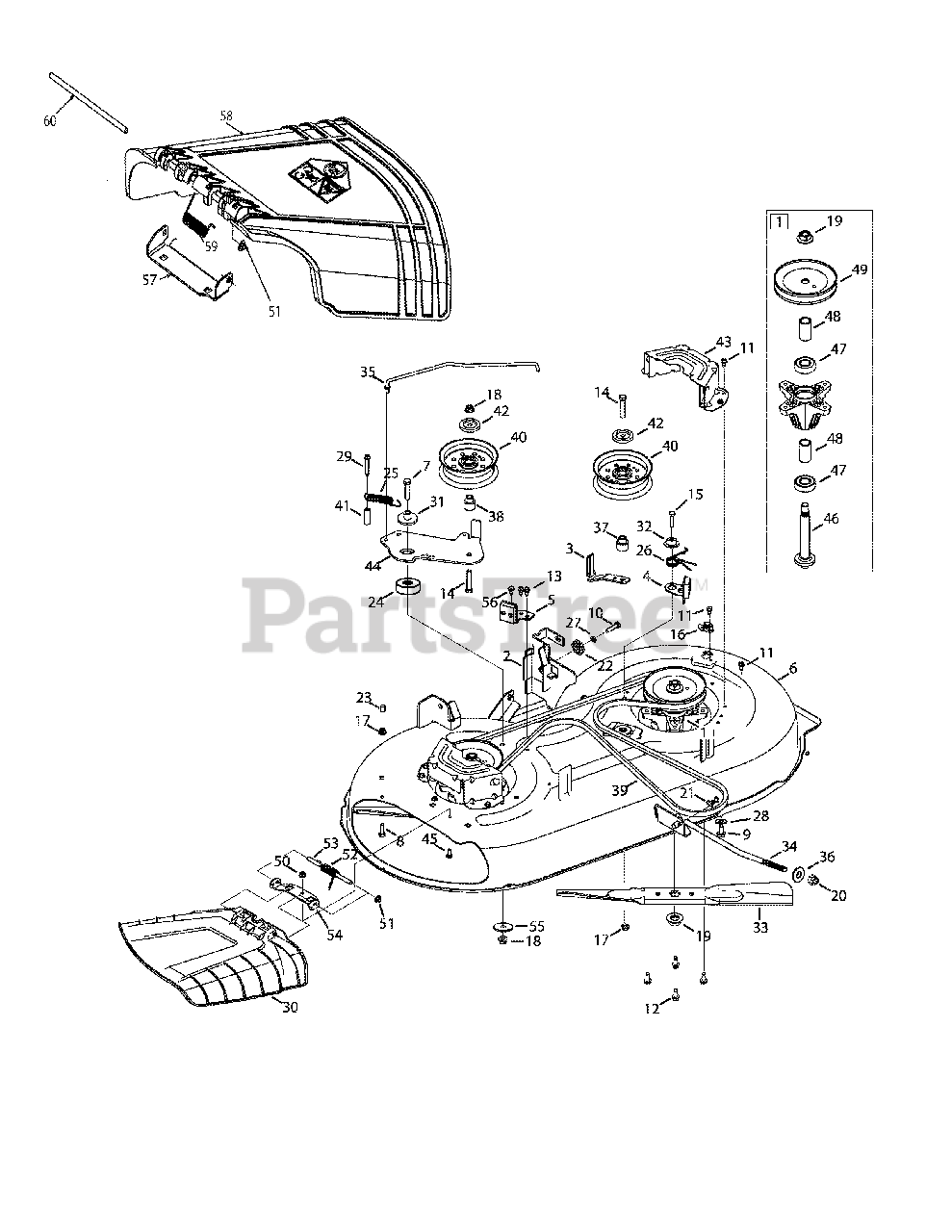

Mower Deck 42-Inch Parts Diagram

  • Title

1

Troy-Bilt 918-06991

Spindle Ass’y, Pulley, 6.2 Dia

$103.99

$

In Stock, only 1 left!

0

2

Troy-Bilt 683-0254B-0638

Bracket Ass’y, Deck, Hanger LH
(Superseded to 683-06474-0637)

$36.99

$

In Stock, only 1 left!

0

3

Troy-Bilt 783-08690-0637

Belt Keeper
(Superseded to 783-08690A-0637)

$12.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 983-05183

Brake Assembly, Deck, LH
(Superseded to 753-09904A)

$106.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 983-05182

Brake Assembly, Deck, RH
(Superseded to 983-05182B)

$99.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 983-05185-0638

Deck, 42"
(Superseded to 983-05185C-0638)

Note: (use with chute 631-04354A)

$506.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 983-05136-0638

Deck, 42"
(Superseded to 983-05136-0637)

Note: (use with chute 631-05191A)

$478.99

$

Usually ships in 3-6 days

0

7

Troy-Bilt 710-0347

Hex Screw, 3/8-16 x 1.75

$5.49

$

In Stock, Qty 20+

0

8

Troy-Bilt 710-0376

Hex Cap Screw, 5/16-18 x 1.00

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 710-04484

Screw, Self-tapping, 5/16-18, .750

$3.99

$

In Stock, Qty 20+

0

10

Troy-Bilt 710-0528

Hex Screw, 5/16-18, 1.25, Gr5, Std

$4.49

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0599

Screw, Self-tapping, 1/4-20, 0.500

$4.49

$

In Stock, Qty 20+

0

12

Troy-Bilt 710-1260A

Screw, 5/16-18 x 0.750

$3.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 8

0

14

Troy-Bilt 710-3096

Hex Screw, 3/8-16, 2.00, Gr8, Std

$7.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 710-06213

Hex cap Screw, 5/16-18 x 1.25

$6.49

$

In Stock, only 3 left!

0

16

Troy-Bilt 783-06464

Deck Wash Plug

$4.49

$

In Stock, Qty 14

0

17

Troy-Bilt 712-04063

Nut, Flange Lock, 5/16-18, Grf

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 712-04065

Nut, Flange Lock, 3/8-16, Grf

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-0417A

Nut, Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 712-04243

Flange Lock Nut, 1/2-13

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 714-04043

Bow-Tie Cotter Pin

$4.99

$

In Stock, Qty 18

0

22

Troy-Bilt 917-04074

Gear, Deck, Adjustment

$13.99

$

In Stock, Qty 16

0

23

Troy-Bilt 720-05010

Cap, .290 x .500

$4.49

$

In Stock, Qty 7

0

24

Troy-Bilt 750-06184

Spacer, .385 x 1.75 x .585

$11.99

$

In Stock, only 1 left!

0

25

Troy-Bilt 732-04629

Extension Spring, .750 X 4.77

$28.99

$

In Stock, Qty 5

0

26

Troy-Bilt 732-05151A

Torsion Spring, LH

$4.49

$

In Stock, Qty 20+

0

27

Troy-Bilt 936-0119

Washer, Lock, 5/16, Regular Duty

$4.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 936-0300

Flat Washer, .406 x .875 x .059
(Superseded to 736-0300)

$4.49

$

In Stock, Qty 20+

0

29

Troy-Bilt 710-0778

Screw, Self Tapping, 1/4-20, 1.50

$4.49

$

In Stock, Qty 20+

0

30

Troy-Bilt 631-04354A

Chute Deflector Assembly
(Superseded to 631-04354C)

Note: (use with 983-05185-0638 deck)

$43.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 738-05082

Shoulder Spacer, .970 x .190

$8.49

$

In Stock, only 2 left!

0

32

Troy-Bilt 738-05088

Shoulder Spacer, .75 x .145

$4.49

$

In Stock, only 1 left!

0

33

Troy-Bilt 942-04308

Blade, Cut, 21.23" 2-In-1
(Superseded to 942-04308A)

$31.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 747-05141A

Rod, Lift, Deck, Frt, 12.7
(Superseded to 747-05141B)

$22.99

$

In Stock, Qty 15

0

35

Troy-Bilt 747-06538

Brake Rod

$14.99

$

In Stock, Qty 11

0

36

Troy-Bilt 748-04069

Deck Lift Pivot Cup
(Superseded to 748-04069A)

$5.99

$

In Stock, Qty 11

0

37

Troy-Bilt 748-05029A

Shoulder Spacer, Idler

$4.99

$

In Stock, Qty 20+

0

38

Troy-Bilt 748-05037A

Shoulder Spacer, Pivot Idler
(Superseded to 748-05037B)

$5.49

$

In Stock, Qty 20+

0

39

Troy-Bilt 954-04060C

Belt, V Type, A Sec X 96.5

$50.99

$

In Stock, Qty 10

0

40

Troy-Bilt 756-05034

Pulley, Idler, 4.50"Dia
(Superseded to 756-05034A)

$45.99

$

In Stock, Qty 20+

0

41

Troy-Bilt 750-0566A

Spacer, .260 x .375 x 1.030

$9.99

$

In Stock, only 1 left!

0

42

Troy-Bilt 783-08389

Pulley Cap

$5.99

$

In Stock, Qty 20+

0

43

Troy-Bilt 783-08510-0638

Deck Belt Cover, 42
(Superseded to 783-08510A-0638)

$13.99

$

In Stock, Qty 20+

0

44

Troy-Bilt 783-08654B

Deck Idler Bracket
(Superseded to 783-08654C)

$71.99

$

In Stock, Qty 20+

0

45

Troy-Bilt 710-0751

Hex Cap Screw, 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

46

Troy-Bilt 738-1186A

Shift, Spindle, 6.11.

$49.99

$

In Stock, Qty 14

0

47

Troy-Bilt 941-0919B

Bearing, Ball, .787id x 1.85 Odx.551

$21.99

$

In Stock, Qty 20+

0

48

Troy-Bilt 750-04936

Spacer, .792 x 1.060 x 1.860

$6.99

$

In Stock, Qty 20+

0

49

Troy-Bilt 756-05031

Pulley, Deck, 5.4 Dia

$23.99

$

In Stock, Qty 5

0

50

Troy-Bilt 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

51

Troy-Bilt 726-04009

Push Cap
(Superseded to 726-04009A)

$7.49

$

In Stock, only 2 left!

0

52

Troy-Bilt 732-05261

Spring, Torsion, .440 ID x 1.75

Note: (use with 983-05185-0638 deck)

$5.99

$

In Stock, Qty 20+

0

53

Troy-Bilt 747-06290B

Hinge Pin

Note: (use with 983-05185-0638 deck)

$4.49

$

In Stock, Qty 20+

0

54

Troy-Bilt 783-08504A

Bracket, Chute, 42"
(Superseded to 783-08504B)

Note: (use with 983-05185-0638 deck)

Variations

Troy-Bilt 783-08504A-0637

Deflector Chute Mounting Bracket - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 7

0

$14.99

$

In Stock, Qty 7

0

55

Troy-Bilt 936-3039

Flat Washer, .406 x 1.50 x .105
(Superseded to 736-3039)

$

$

Not available

56

Troy-Bilt 738-04184A

Shoulder Screw, 1/4-20

$6.99

$

In Stock, Qty 11

0

57

Troy-Bilt 783-06074A

Bracket, Chute, 42"

Note: (use with 983-05136-0638 deck)

$32.99

$

In Stock, only 1 left!

0

58

Troy-Bilt 631-05191A

Chute Deflector Assembly

Note: (use with 983-05136-0638 deck)

$56.99

$

In Stock, Qty 20+

0

59

Troy-Bilt 732-04372

Spring, Torsion

Note: (use with 983-05136-0638 deck)

$10.99

$

In Stock, Qty 9

0

60

Troy-Bilt 711-04847B

Hinge Pin

Note: (use with 983-05136-0638 deck)

$8.99

$

In Stock, Qty 8

0
