13U232-0029-01 - Briggs & Stratton Horizontal Engine Air Cleaner Group Parts Diagram

Horizontal Engine

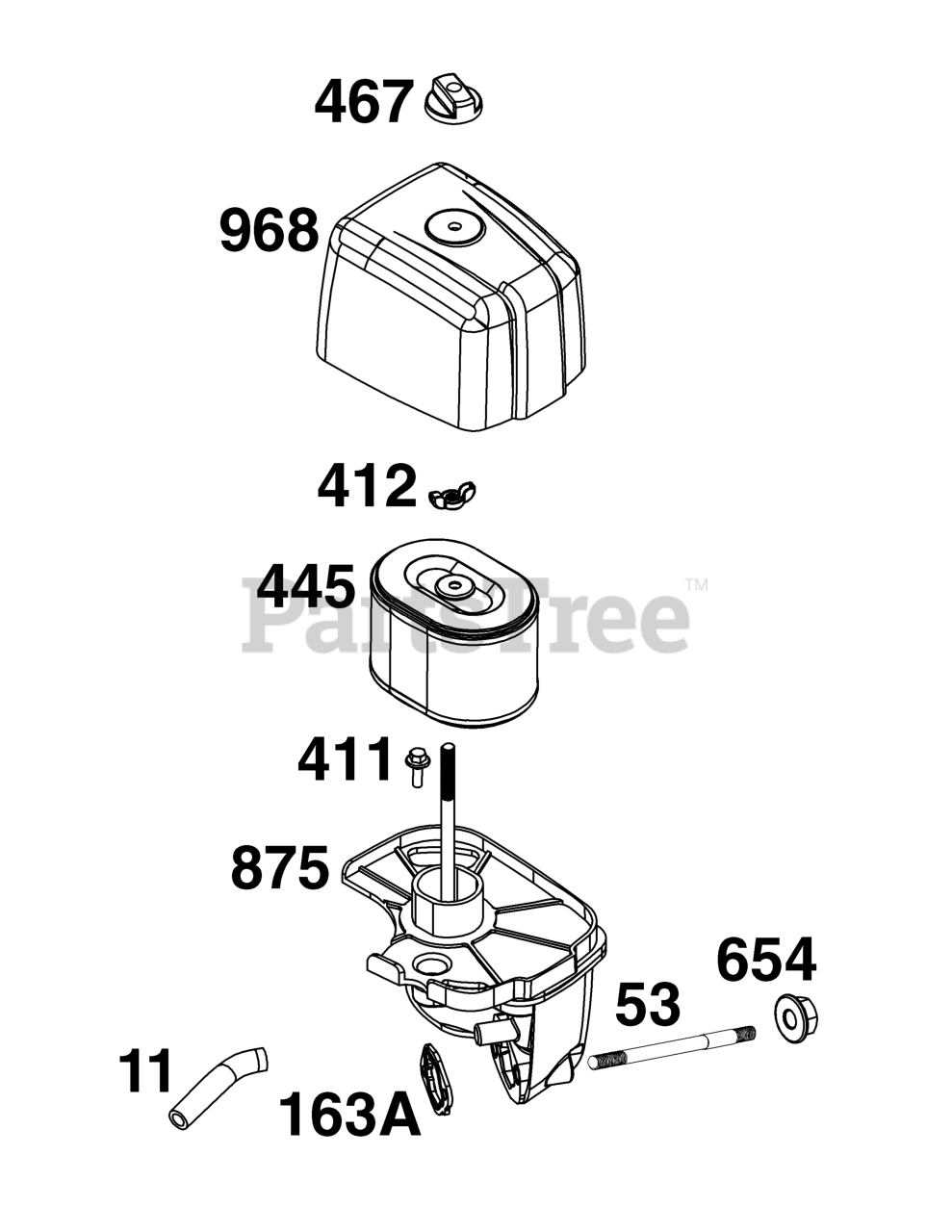

Air Cleaner Group Parts Diagram

  • Title

11

Briggs & Stratton 797262

TUBE, Breather

$5.99

$

Usually ships in 2-12 days

0

53

STUD

Note: (Part information located in Carburetor Group.)

$

$

Not available

163A

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

411

Briggs & Stratton 797686

SCREW

Note: (Air Cleaner Base to Air Cleaner Bracket)

$4.99

$

Usually ships in 2-12 days

0

412

Briggs & Stratton 799830

NUT

Note: (Air Cleaner Cover)

$4.99

$

Usually ships in 2-12 days

0

445

Briggs & Stratton 594146

FILTER, A/C Cartridge

$9.49

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 691985

KNOB, Air Cleaner Cover

$7.99

$

In Stock, Qty 11

0

654

NUT

Note: (Part information located in Carburetor Group.)

$

$

Not available

875

Briggs & Stratton 596293

BASE, Air Cleaner

$20.99

$

In Stock, only 1 left!

0

968

Briggs & Stratton 596292

COVER, Air Cleaner

$25.99

$

Usually ships in 2-12 days

0
