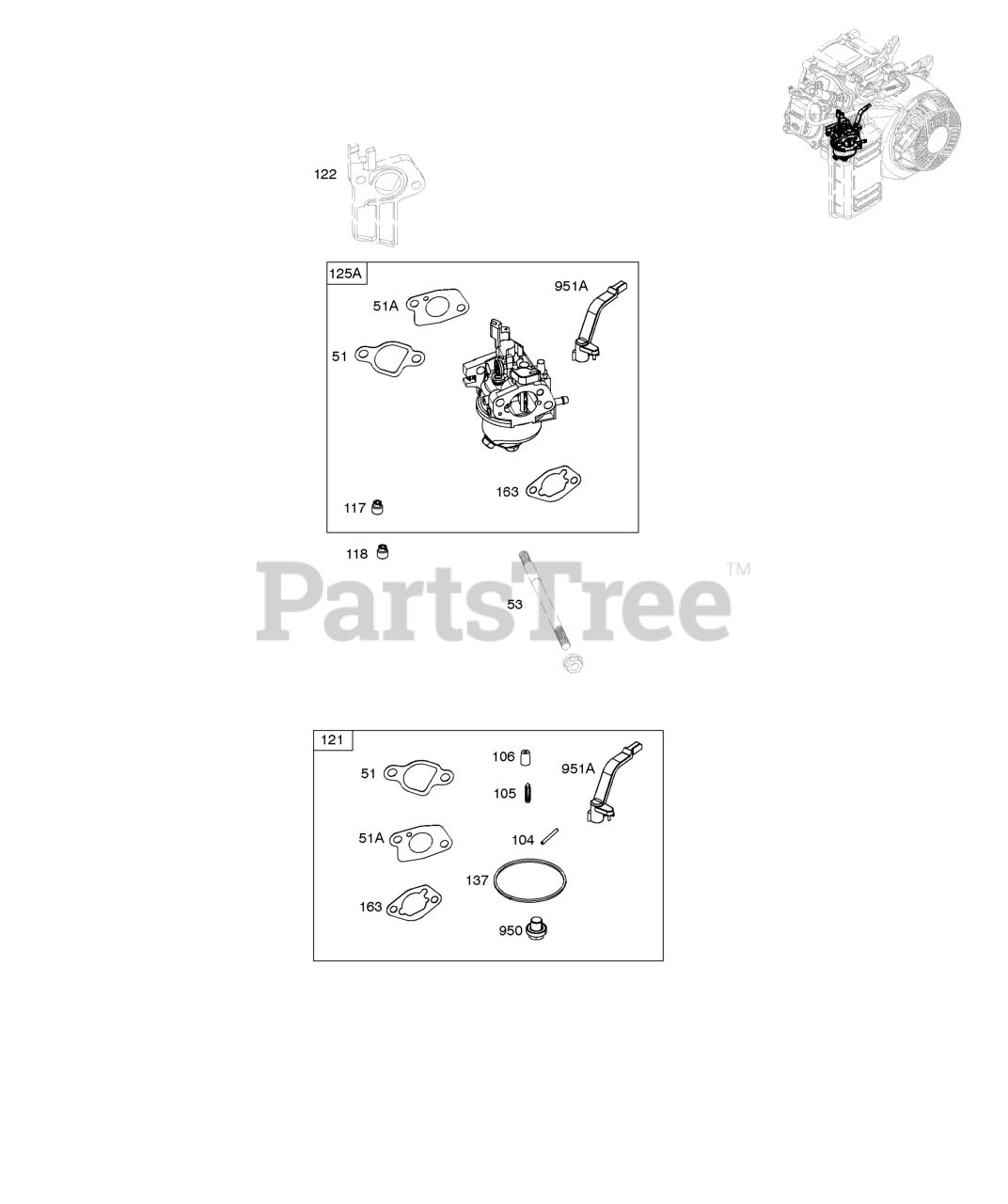

13U132-0001-G1 - Briggs & Stratton Horizontal Engine Carburetor Parts Diagram

Horizontal Engine

Carburetor Parts Diagram

  • Title

51

Briggs & Stratton XXXXX

Gasket-Air Cleaner

Note: (Not Available Individually) (See Reference 121, 125A & 358 ForReplacement)

$

$

Not available

51A

Gasket-Intake

Note: (Not Available Individually) (See Reference 121, 125A & 358 ForReplacement)

$

$

Not available

53

Stud

Note: (Carburetor) (Currently Not Available)

$

$

Not available

104

Pin-Float Hinge

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

105

Valve-Float Needle

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

106

Seat-Inlet

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

117

Briggs & Stratton 595842

Jet-Main

Note: (Standard) (Used Before Code Date 16120500)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 595843

Jet-Main

Note: (High Altitude) (Used Before Code Date 16120500)

$17.99

$

Usually ships in 2-12 days

0

121

Briggs & Stratton 594133

Kit-Carburetor Overhaul

$20.99

$

Usually ships in 2-12 days

0

122

Spacer-Carburetor

Note: (Currently Not Available)

$

$

Not available

125A

Briggs & Stratton 595848

Carburetor
(Superseded to 597779)

Note: (Used Before Code Date 16120500)

$61.99

$

Usually ships in 2-12 days

0

137

Gasket-Float Bowl

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

163

Gasket-Air Cleaner

Note: (Not Available Individually) (See Reference 121, 125A & 358 ForReplacement)

$

$

Not available

950

Screw-Float Bowl

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

951A

Lever-Choke

Note: (Not Available Individually) (See Reference 121 & 125A For Replacement)

$

$

Not available
