13RT61RH044 (LX 466) - Toro Lawn Tractor (SN: 1L137H10100 & Above) (2008) TRANSMISSION, BELT, TRACTION AND BRAKE PEDAL ASSEMBLY Parts Diagram

Lawn Tractor

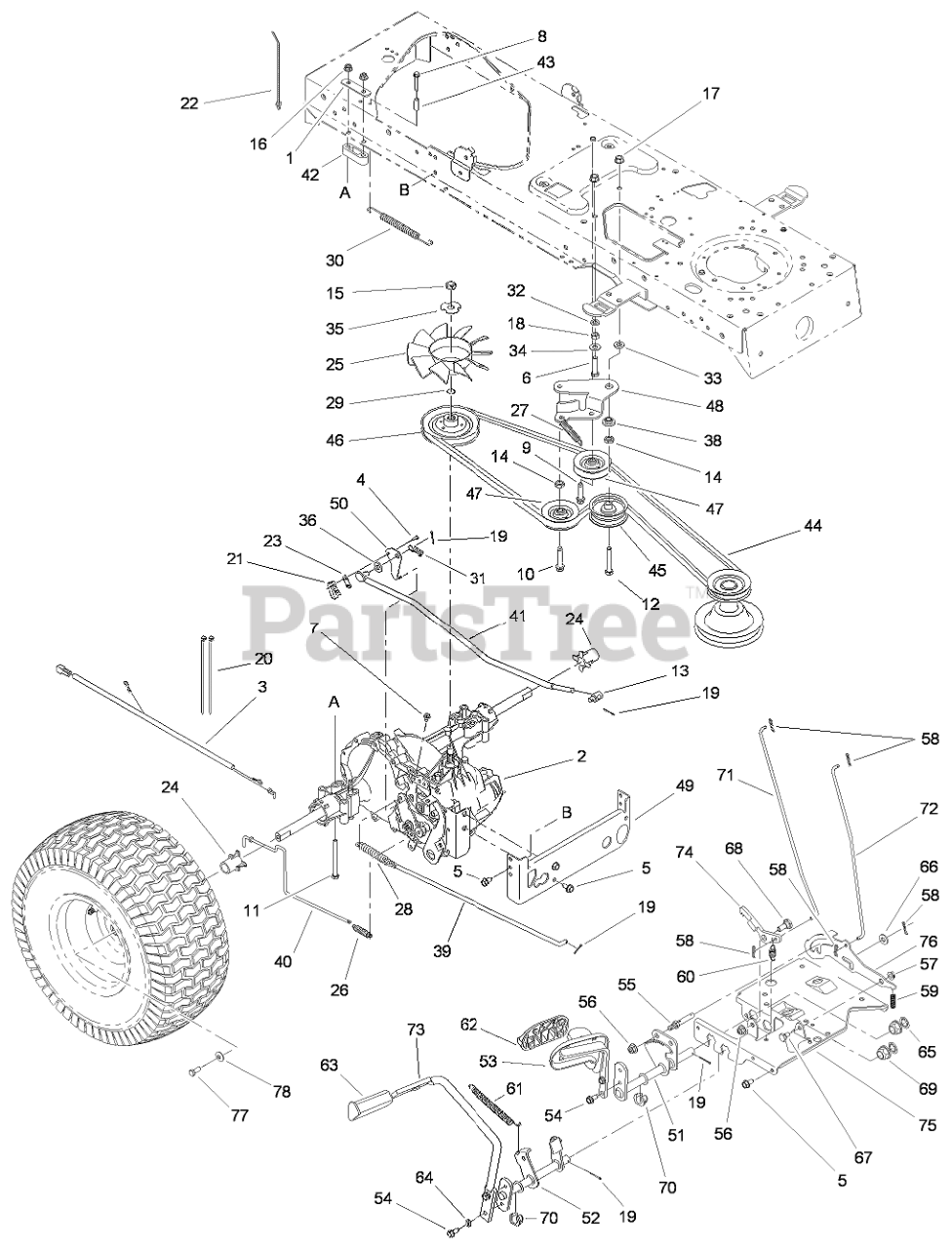

TRANSMISSION, BELT, TRACTION AND BRAKE PEDAL ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0628

BRACKET-MOUNTING, TRANSMISSION

$

$

Not available

2

Toro 112-6019

HYDRO TRANSMISSION ASM

$2975.99

$

Usually ships in 3-6 days

0

3

Toro 112-6020

HARNESS ASM

$72.99

$

Usually ships in 3-6 days

0

4

Toro 112-0626

SCREW-HWHTF

$7.49

$

In Stock, only 3 left!

0

5

Toro 112-6070

SCREW-TAP

$6.99

$

Usually ships in 3-6 days

0

6

Toro 112-0578

SCREW-HH

$7.49

$

In Stock, only 3 left!

0

7

Toro 112-6022

SCREW-TAP

$7.49

$

Usually ships in 3-6 days

0

8

Toro 112-0843

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

9

Toro 112-0469

SCREW-TAP

$

$

Not available

10

Toro 112-6143

SCREW-TAP

$

$

Not available

11

Toro 112-0667

SCREW-HH

$

$

Not available

12

Toro 112-6009

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

13

Toro 112-0908

FERRULE

$

$

Not available

14

Toro 112-0493

NUT-JAM

$7.49

$

In Stock, only 4 left!

0

15

Toro 112-6144

NUT-JAM

$7.99

$

In Stock, only 1 left!

0

16

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

17

Toro 112-0385

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 7

0

18

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

19

Toro 112-0568

PIN-COTTER

$7.99

$

In Stock, only 2 left!

0

20

Toro 112-0527

TIE-CABLE

$7.49

$

Usually ships in 3-6 days

0

21

Toro 112-0602

SWITCH-SPRING, SHORT

$14.99

$

Usually ships in 3-6 days

0

22

Toro 112-0866

TIE-CABLE

$7.49

$

Usually ships in 3-6 days

0

23

Toro 112-0625

PLATE-INSULATOR

$8.49

$

Usually ships in 3-6 days

0

24

Toro 112-6025

SLEEVE

$7.49

$

Usually ships in 3-6 days

0

25

$32.99

$

In Stock, only 1 left!

0

26

Toro 112-6027

SPRING-EXTENSION

$12.99

$

Usually ships in 3-6 days

0

27

Toro 112-0873

SPRING-EXTENSION

$20.99

$

Usually ships in 3-6 days

0

28

Toro 112-0350

SPRING-EXTENSION

$23.99

$

In Stock, only 1 left!

0

29

Toro 112-6028

RING-WIRE

$7.99

$

Usually ships in 3-6 days

0

30

Toro 112-6029

SPRING-EXTENSION

$18.99

$

Usually ships in 3-6 days

0

31

Toro 112-0875

SPRING-EXTENSION

$16.99

$

Usually ships in 3-6 days

0

32

Toro 112-0415

WASHER-LOCK

$

$

Not available

33

Toro 112-0920

WASHER-FLAT

$7.49

$

Usually ships in 3-6 days

0

34

Toro 112-0572

WASHER-FLAT

$

$

Not available

35

Toro 112-6146

WASHER-LOCK

$8.49

$

Usually ships in 3-6 days

0

36

Toro 112-0544

WASHER-FLAT

$7.49

$

In Stock, Qty 6

0

38

Toro 112-0345

SPACER-SHOULDER

$16.99

$

In Stock, only 1 left!

0

39

Toro 112-6030

ROD-BRAKE

$34.99

$

Usually ships in 3-6 days

0

40

Toro 112-6031

ROD-HYDRO

$

$

Not available

41

Toro 112-6032

ROD-CONTROL

$

$

Not available

42

Toro 112-0673

SPACER-TRANSAXLE

$

$

Not available

43

Toro 112-0644

SPACER

$

$

Not available

44

Toro 112-6147

BELT-V

$84.99

$

In Stock, only 3 left!

0

45

Toro 112-0313

PULLEY-IDLER, FLAT

$55.99

$

Usually ships in 3-6 days

0

46

Toro 112-6148

PULLEY-INPUT

$

$

Not available

47

Toro 112-6149

PULLEY-IDLER, Y TYPE

$50.99

$

In Stock, only 4 left!

0

48

Toro 112-0525

BRACKET-IDLER, CENTER DOUBLE

$59.99

$

In Stock, only 1 left!

0

49

Toro 112-6034

BRACKET-TORQ, TRANSMISSION

$

$

Not available

50

Toro 112-6035

BRACKET-ACTUATOR

$18.99

$

Usually ships in 3-6 days

0

51

Toro 112-0850

CONTROL ASM

$

$

Not available

52

Toro 112-5998

SPEED CONTROL ASM

$58.99

$

Usually ships in 3-6 days

0

53

Toro 112-0851

CONTROL PEDAL ASM

$

$

Not available

54

Toro 112-0395

SCREW-HWH

$14.99

$

In Stock, Qty 19

0

55

$

$

Not available

56

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

57

Toro 112-0511

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

58

Toro 112-0459

PIN-COTTER

$

$

Not available

59

Toro 112-0506

SPRING

$

$

Not available

60

Toro 112-0510

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

61

Toro 112-0348

SPRING-EXTENSION

$16.99

$

In Stock, only 3 left!

0

62

Toro 112-0543

PAD-PEDAL

$

$

Not available

63

Toro 112-6001

PAD-BRAKE

$

$

Not available

64

Toro 112-0366

WASHER-LOCK

$

$

Not available

65

Toro 112-0339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

66

Toro 112-0541

Washer-Flat

$7.49

$

Usually ships in 3-6 days

0

67

Toro 112-0542

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

68

Toro 112-0442

BOLT-SHOULDER

$

$

Not available

69

Toro 112-0347

BEARING-FLANGE

$16.99

$

Usually ships in 3-6 days

0

70

Toro 112-0387

BEARING-FLANGE, HEX (SPLIT)

$12.99

$

In Stock, only 3 left!

0

71

Toro 112-6150

ROD-BRAKE, LOCK

$41.99

$

Usually ships in 3-6 days

0

72

Toro 112-0662

ROD-CONTROL, CRUISE

$

$

Not available

73

Toro 112-6005

PEDAL-BRAKE

$56.99

$

Usually ships in 3-6 days

0

74

Toro 112-6004

LATCH-CRUISE

$

$

Not available

75

Toro 112-0681

BRACKET-SUPPORT, STEERING

$89.99

$

In Stock, only 3 left!

0

76

Toro 112-5812

BRACKET-LOCKOUT

$

$

Not available

77

Toro 112-0551

SCREW-HH

$7.49

$

In Stock, Qty 6

0

78

Toro 112-0435

WASHER-BELL

$

$

Not available
