13RT61RH044 (LX 466) - Toro Lawn Tractor (SN: 1L137H10100 & Above) (2008) CRANKCASE COVER AND SUMP ASSEMBLY Parts Diagram

Lawn Tractor

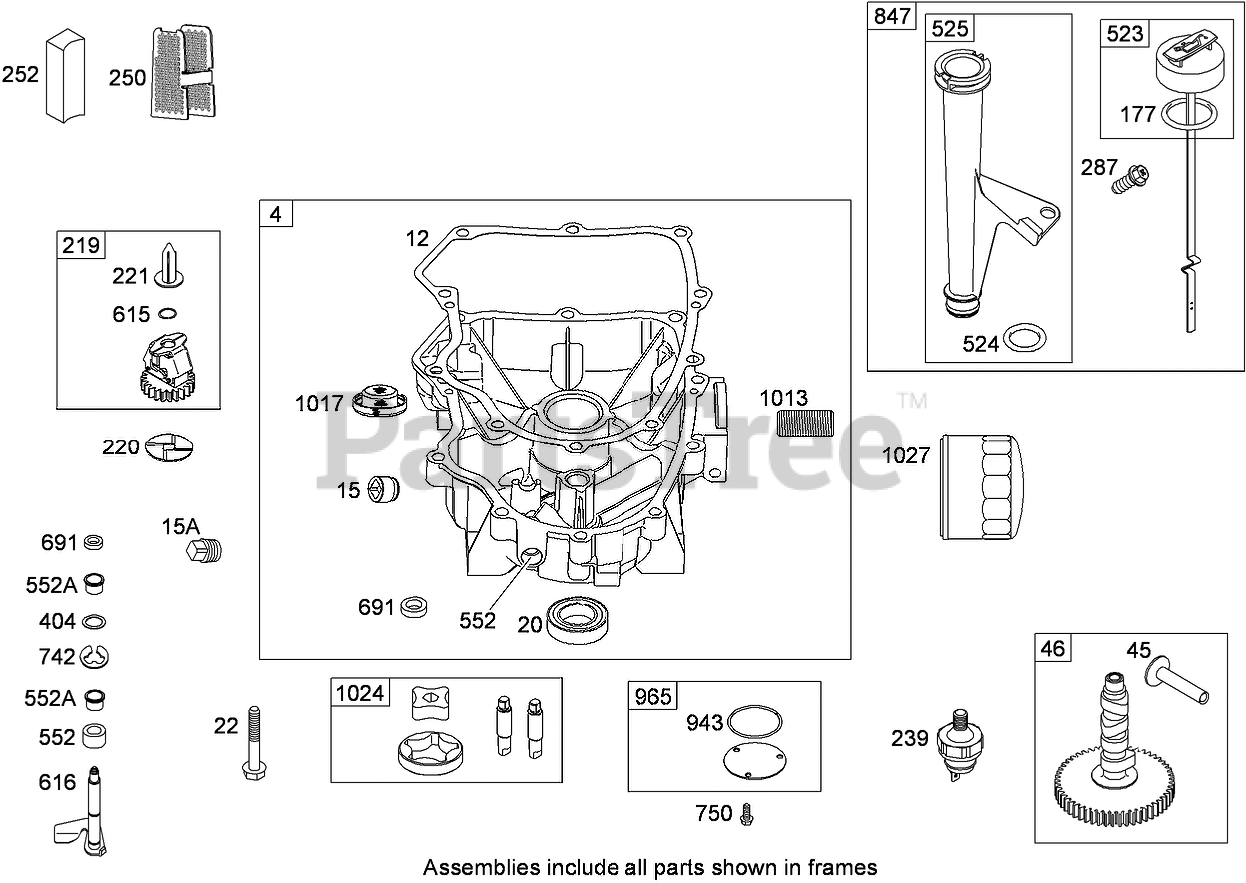

CRANKCASE COVER AND SUMP ASSEMBLY Parts Diagram

  • Title

4

Briggs & Stratton 699747

Sump-Engine
(Superseded to 796307)

Note: Obtain parts from www.briggsandstratton.com

$278.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 697227

Gasket-Crankcase
(Superseded to 594195)

Note: Included in Engine Gasket Set (Ref. No. 358)

$37.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 691680

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 1 left!

0

15A

Briggs & Stratton 690946

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 14

0

20

Briggs & Stratton 795387

Seal-Oil (PTO Side)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 795387

Seal-Oil (PTO Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 694966

Screw (Engine Sump)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 690977

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 792555

Camshaft
(Superseded to 797242)

Note: Obtain parts from www.briggsandstratton.com

$122.99

$

In Stock, Qty 15

0

177

Briggs & Stratton 691031

Screw (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, Qty 20+

0

177

Briggs & Stratton 691031

Screw (Dipstick Tube)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.49

$

In Stock, Qty 20+

0

219

Briggs & Stratton 793338

Gear-Governor

Note: Obtain parts from www.briggsandstratton.com

$27.99

$

In Stock, Qty 20+

0

220

Briggs & Stratton 690412

Washer (Governor Gear)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

221

Briggs & Stratton 841026

Cup-Governor

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, only 1 left!

0

239

Briggs & Stratton 792028

Switch-Pressure, Oil

Note: Obtain parts from www.briggsandstratton.com

$28.99

$

In Stock, only 1 left!

0

250

Briggs & Stratton 690957

Retainer-Breather

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

252

Briggs & Stratton 794389

Collector-Oil

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 1 left!

0

287

Briggs & Stratton 691108

Screw (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

404

Briggs & Stratton 690442

Washer (Governor Crank)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 5

0

523

Briggs & Stratton 691036

Dipstick
(Superseded to 594528)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 1 left!

0

524

Briggs & Stratton 691032

Seal-O Ring (Dipstick Tube)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

524

Briggs & Stratton 691032

Seal-O Ring (Dipstick Tube)

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

Usually ships in 2-12 days

0

525

Briggs & Stratton 691037

Tube-Dipstick
(Superseded to 597129)

Note: Obtain parts from www.briggsandstratton.com

$21.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 690552

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 9

0

552A

Briggs & Stratton 690553

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 9

0

615

Briggs & Stratton 698290

Retainer-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 9

0

616

Briggs & Stratton 691045

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 790574

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

691

Briggs & Stratton 790574

Seal-Shaft, Governor

Note: Included in Engine Gasket Set (Ref. No. 358)

$5.99

$

In Stock, Qty 20+

0

742

Briggs & Stratton 690328

Retainer-E Ring

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 6

0

750

Briggs & Stratton 696999

Screw (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

$29.99

$

Usually ships in 2-12 days

0

847

Briggs & Stratton 499602

Dipstick and Tube ASM
(Superseded to 594609)

Note: Obtain parts from www.briggsandstratton.com

$47.99

$

In Stock, only 2 left!

0

943

Briggs & Stratton 690589

Seal-O Ring (Oil Pump Cover)

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.99

$

In Stock, Qty 20+

0

943

Briggs & Stratton 690589

Seal-O Ring (Oil Pump Cover)

Note: Obtain parts from www.briggsandstratton.com

$8.99

$

In Stock, Qty 20+

0

965

Briggs & Stratton 499613

Cover-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, Qty 9

0

1013

Briggs & Stratton 690954

Nipple-Filter, Oil

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 5

0

1017

Briggs & Stratton 690770

Screen-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1024

Briggs & Stratton 794644

Pump-Oil

Note: Obtain parts from www.briggsandstratton.com

$35.99

$

In Stock, only 1 left!

0

1027

Toro 492632s

Filter-Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
