13RN772G055 - Yard-Man Lawn Tractor (2009) (Walmart) Hood Style 2 Parts Diagram

Lawn Tractor

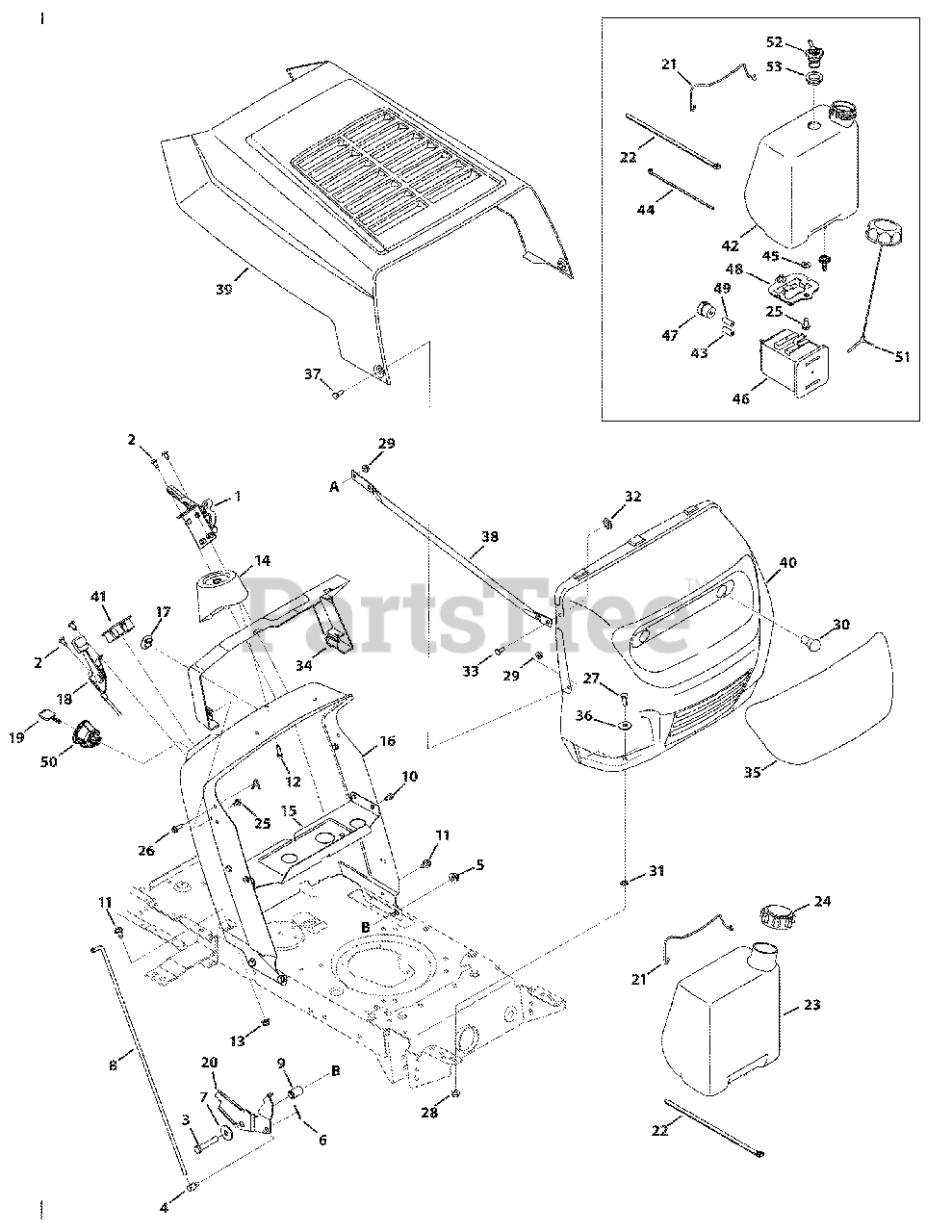

Hood Style 2 Parts Diagram

  • Title

1

MTD 983-04216

7-Speed Control Assembly

Note: Yard-Man & Yard Machines Models

$21.99

$

In Stock, only 2 left!

0

1

MTD 983-04225

6-Speed Control Assembly

Note: Yard Machines Home Depot & Walmart Models

$

$

Not available

2

MTD 710-04483

Screw, 1/4-20 x .500

$6.99

$

Usually ships in 3-6 days

0

3

MTD 710-3144

Hex Screw, 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

4

MTD 711-0736

Ferrule, 1/4-20 x 1.00

$13.99

$

In Stock, only 2 left!

0

5

MTD 710-04065

Flangelock Nut, 3/8-16

$6.49

$

In Stock, Qty 20+

0

6

MTD 914-0111

Cotter Pin, 3/32 x 1.0
(Superseded to 714-0111)

$4.99

$

In Stock, Qty 13

0

7

MTD 936-0133

Flat Washer, .411 x 1.25 x .100
(Superseded to 736-0133)

$

$

Not available

8

MTD 747-04430

Speed Selector

$21.99

$

Usually ships in 3-6 days

0

9

MTD 750-04465

Flange Spacer, .390 x .671 x 1.095
(Superseded to 750-04465B)

$4.49

$

In Stock, only 2 left!

0

10

MTD 710-0599

Hex Washer Screw, 1/4-20 x .500

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-0604A

Screw, 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

12

MTD 710-0895

Screw, 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

13

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

MTD 731-04945

Steering Support

$18.99

$

In Stock, only 1 left!

0

15

MTD 783-04584A-0637

Gas Tank Support Bracket
(Superseded to 783-04584B-0637)

$19.99

$

Usually ships in 3-6 days

0

16

MTD 983-04889A-0637

Dash, RMC
(Superseded to 983-04889C-0637)

$103.99

$

Usually ships in 3-6 days

0

16

MTD 783-04873A-0637

Dash, No RMC - Powder Black
(Superseded to 783-04873B-0637)

$214.99

$

Usually ships in 3-6 days

0

16

MTD 783-04873A-0665

Dash, No RMC - Green
(Superseded to 783-04873B-0665)

$214.99

$

Usually ships in 3-6 days

0

17

MTD 731-05265

Choke Plug

$5.99

$

Usually ships in 3-6 days

0

18

MTD 746-04364

Throttle/Choke Cable

$48.99

$

In Stock, only 3 left!

0

19

MTD 925-1745A

Key

$17.99

$

In Stock, Qty 20+

0

20

MTD 783-04862

Speed Latch. RMC

$

$

Not available

20

MTD 783-04903

Speed Latch, No RMC

Variations

MTD 783-04903-0637

Latch Speed Bracket - POWDER BLACK (0637)

$9.49

$

Usually ships in 3-6 days

0

$8.99

$

Usually ships in 3-6 days

0

21

MTD 683-04448-0637

Battery Assembly Rod

$10.99

$

In Stock, Qty 14

0

22

MTD 726-0230

Cable Tie

$27.99

$

In Stock, only 1 left!

0

23

MTD 751-0555B

1.5 Gallon Fuel Tank
(Superseded to 751-0555D)

$89.99

$

In Stock, only 1 left!

0

24

MTD 751-0603A

Fuel Cap
(Superseded to 751-0603B)

$23.99

$

Usually ships in 3-6 days

0

25

MTD 710-04484

Screw, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

26

MTD 710-0642

Screw, 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

27

MTD 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

28

MTD 712-04063

Flangelock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

29

MTD 712-04064

Flangelock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

30

MTD 925-0963

Miniature Lamp 12V Socket

$7.49

$

In Stock, only 1 left!

0

31

MTD 726-0201

Speed Nut, .3125

$6.99

$

In Stock, only 2 left!

0

32

MTD 926-04012

Push-On Nut, .25
(Superseded to 726-04012)

$

$

Not available

33

MTD 728-0162

Flat Head Rivet, 1/4"

$4.99

$

Usually ships in 3-6 days

0

34

MTD 731-05012B

Dash

$17.99

$

Usually ships in 3-6 days

0

35

MTD 731-06042

Lens

$34.99

$

Usually ships in 3-6 days

0

36

MTD 736-3078

Flat Washer, .344 x 1.0 x .063

$4.49

$

In Stock, Qty 20+

0

37

MTD 938-0952A

Shoulder Bolt, 1/4-20 x .375 x .125

$7.49

$

In Stock, Qty 10

0

38

MTD 749-04220-0637

Grill Support Rod

$26.99

$

Usually ships in 3-6 days

0

39

MTD 783-04608-0638

Hood - Red

$274.99

$

Usually ships in 3-6 days

0

39

MTD 783-04608-0674

Hood - Yellow

$255.99

$

Usually ships in 3-6 days

0

40

MTD 783-05656-0638

Grill - Red
(Superseded to 783-05656A-0638)

$112.99

$

Usually ships in 3-6 days

0

40

MTD 783-05656-0674

Grill - Yellow

$104.99

$

Usually ships in 3-6 days

0

41

MTD 925-04156

Ammeter

$29.99

$

In Stock, only 1 left!

0

42

MTD 751-10782

Fuel Tank, 1.36 Gallons
(Superseded to 951-04304B)

$111.99

$

In Stock, only 1 left!

0

43

MTD 751-10750

Fuel Hose, Yellow

$1.49

$

Usually ships in 3-6 days

0

44

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

45

MTD 936-3008

Flat Washer, .344 x .750 x .120

$6.99

$

Usually ships in 3-6 days

0

46

MTD 951-10589

5 Gallon Carbon Canister

$72.99

$

Usually ships in 3-6 days

0

47

MTD 951-10590

Vent Filter Canister

$15.99

$

Usually ships in 3-6 days

0

48

MTD 951-10610

Canister Adaptor Bracket

$23.99

$

Usually ships in 3-6 days

0

49

MTD 751-10749-30

Fuel Hose, White

$36.99

$

Usually ships in 3-6 days

0

50

MTD 925-04659

Key Switch

$44.99

$

In Stock, Qty 20+

0

51

MTD 951-10947

Fuel Cap, 2.25"
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0

52

MTD 751-10441

Rollover Valve
(Superseded to 751-12118)

$35.99

$

In Stock, only 1 left!

0

53

MTD 735-04081

Rubber Grommet, 23 x 3.55

$4.99

$

In Stock, Qty 20+

0
