13RL60RG244 (LX 426) - Toro Lawn Tractor (SN: 1L107H10100 & Above) (2008) TRANSMISSION, BRAKE AND TRACTION PEDAL ASSEMBLY Parts Diagram

Lawn Tractor

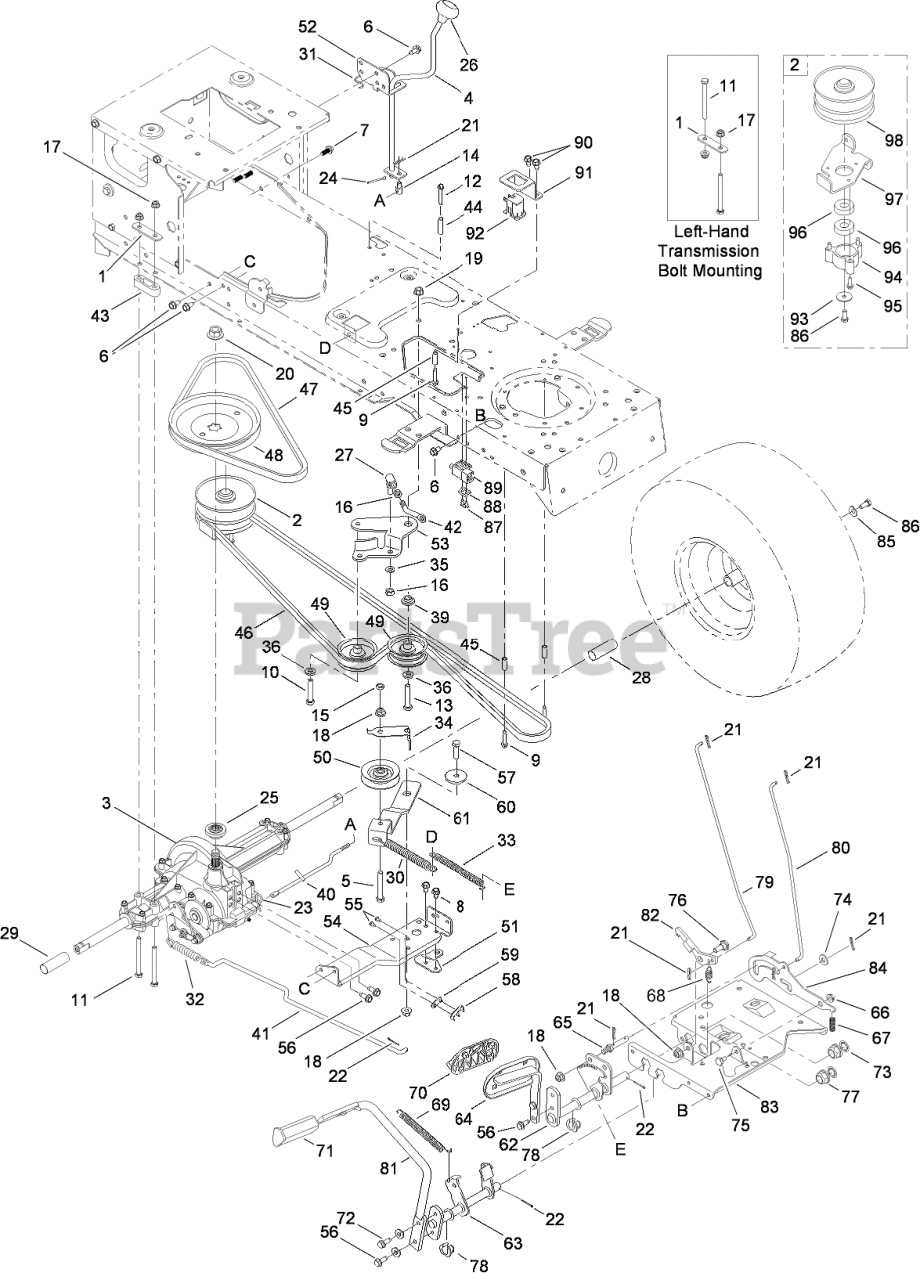

TRANSMISSION, BRAKE AND TRACTION PEDAL ASSEMBLY Parts Diagram

  • Title

1

Toro 112-0628

BRACKET-MOUNTING, TRANSMISSION

$

$

Not available

2

Toro 112-6129

PULLEY ASM

$334.99

$

Usually ships in 3-6 days

0

3

Toro 112-6083

SINGLE SPEED TRANSAXLE ASM

$1184.99

$

Usually ships in 3-6 days

0

4

Toro 112-0627

SHIFT LEVER ASM

$

$

Not available

5

Toro 112-6130

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

6

Toro 112-6070

SCREW-TAP

$6.49

$

In Stock, Qty 6

0

7

Toro 112-6131

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

8

Toro 112-0676

SCREW-TAP

$

$

Not available

9

Toro 112-0603

SCREW-HH

$11.99

$

Usually ships in 3-6 days

0

10

Toro 112-0469

SCREW-TAP

$

$

Not available

11

Toro 112-0667

SCREW-HH

$8.99

$

Usually ships in 3-6 days

0

12

Toro 112-0839

SCREW-TAP

$5.49

$

In Stock, only 2 left!

0

13

Toro 112-0421

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

14

Toro 112-0592

FERRULE-ADJUSTABLE

$23.99

$

In Stock, only 1 left!

0

15

Toro 112-6132

NUT-JAM, LOCK

$

$

Not available

16

Toro 112-0343

NUT-HEX

$5.49

$

Usually ships in 3-6 days

0

17

Toro 112-0650

NUT-LOCK, FLANGE

$6.99

$

In Stock, only 3 left!

0

18

Toro 112-0668

NUT-LOCK, FLANGE

$6.49

$

In Stock, Qty 5

0

19

Toro 112-0385

NUT-LOCK, FLANGE

$6.99

$

In Stock, Qty 7

0

20

Toro 112-0451

NUT-FLANGE

$13.99

$

Usually ships in 3-6 days

0

21

Toro 112-0459

PIN-COTTER

$

$

Not available

22

Toro 112-0568

PIN-COTTER

$7.49

$

In Stock, only 2 left!

0

23

Toro 112-0639

PIN-HAIR

$6.49

$

Usually ships in 3-6 days

0

24

Toro 112-0412

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

25

Toro 112-0450

HUB-PULLEY

$

$

Not available

26

Toro 112-0514

KNOB-SHIFT

$16.99

$

Usually ships in 3-6 days

0

27

Toro 112-0306

BALL JOINT ASM

$

$

Not available

28

Toro 112-0670

SLEEVE

$8.99

$

Usually ships in 3-6 days

0

29

Toro 112-0683

SLEEVE

$6.99

$

Usually ships in 3-6 days

0

30

Toro 112-5991

SPRING-EXTENSION

$19.99

$

In Stock, only 1 left!

0

31

Toro 112-0357

CLIP-SPRING, SHIFTER

$11.99

$

In Stock, only 4 left!

0

32

Toro 112-0350

SPRING-EXTENSION

$20.99

$

In Stock, only 1 left!

0

33

Toro 112-0348

SPRING-EXTENSION

$15.99

$

In Stock, only 1 left!

0

34

Toro 112-5883

GUIDE-BELT, TRACTION

$16.99

$

In Stock, only 2 left!

0

35

Toro 112-0415

WASHER-LOCK

$4.99

$

Usually ships in 3-6 days

0

36

Toro 112-0544

WASHER-FLAT

$6.99

$

In Stock, Qty 6

0

39

Toro 112-0345

SPACER-SHOULDER

$15.99

$

In Stock, only 1 left!

0

40

Toro 112-5992

ROD-SHIFT

$35.99

$

In Stock, only 1 left!

0

41

Toro 112-0655

ROD-BRAKE

$

$

Not available

42

Toro 112-0538

ROD-ADJUSTMENT, IDLER

$41.99

$

Usually ships in 3-6 days

0

43

Toro 112-0673

SPACER-TRANSAXLE

$

$

Not available

44

Toro 112-5831

SPACER

$7.99

$

In Stock, only 4 left!

0

45

Toro 112-0644

SPACER

$

$

Not available

46

Toro 112-0301

BELT-DRIVE, VARIABLE SPEED

$50.99

$

In Stock, Qty 20+

0

47

Toro 112-0305

BELT-DRIVE, TRANSMISSION

$30.99

$

In Stock, Qty 16

0

48

Toro 112-0379

PULLEY-V (W/HUB)

$59.99

$

In Stock, only 1 left!

0

49

Toro 112-0313

PULLEY-IDLER, FLAT

$50.99

$

Usually ships in 3-6 days

0

50

Toro 112-6133

PULLEY-IDLER, V-TYPE

$36.99

$

In Stock, Qty 7

0

51

Toro 112-0701

BRACKET-SHIFT

$

$

Not available

52

Toro 112-0638

BRACKET-SHIFT

$

$

Not available

53

Toro 112-0525

BRACKET-IDLER, CENTER DOUBLE

$53.99

$

In Stock, only 1 left!

0

54

Toro 112-6134

BRACKET ASM

$

$

Not available

55

Toro 112-0626

SCREW-HWHTF

$6.99

$

In Stock, only 3 left!

0

56

Toro 112-0395

SCREW-HWH

$10.99

$

In Stock, Qty 19

0

57

Toro 112-0557

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

58

Toro 112-0602

SWITCH-SPRING, SHORT

$12.99

$

Usually ships in 3-6 days

0

59

Toro 112-0625

PLATE-INSULATOR

$7.49

$

Usually ships in 3-6 days

0

60

Toro 112-0584

SPACER-SHOULDER

$39.99

$

In Stock, only 2 left!

0

61

Toro 112-6135

BRACKET-IDLER

$

$

Not available

62

Toro 112-0539

SPEED CONTROL ASM

$

$

Not available

63

Toro 112-5998

SPEED CONTROL ASM

$46.99

$

Usually ships in 3-6 days

0

64

Toro 112-0680

PEDAL ASM

$

$

Not available

65

Toro 112-0599

PIN

$11.99

$

Usually ships in 3-6 days

0

66

Toro 112-0511

NUT-LOCK, FLANGE

$6.49

$

In Stock, only 3 left!

0

67

Toro 112-0506

SPRING

$

$

Not available

68

Toro 112-0510

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

69

Toro 112-0348

SPRING-EXTENSION

$15.99

$

In Stock, only 1 left!

0

70

Toro 112-0543

PAD-PEDAL

$

$

Not available

71

Toro 112-6001

PAD-BRAKE

$

$

Not available

72

Toro 112-0366

WASHER-LOCK

$

$

Not available

73

Toro 112-0339

WASHER-FLAT

$5.49

$

Usually ships in 3-6 days

0

74

Toro 112-0541

Washer-Flat

$6.99

$

Usually ships in 3-6 days

0

75

Toro 112-0542

BOLT-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

76

Toro 112-0442

BOLT-SHOULDER

$

$

Not available

77

Toro 112-0347

BEARING-FLANGE

$15.99

$

Usually ships in 3-6 days

0

78

Toro 112-0387

BEARING-FLANGE, HEX (SPLIT)

$11.99

$

In Stock, only 1 left!

0

79

Toro 112-0675

ROD-BRAKE, LOCK CONTROL
(Superseded to 112-6150)

$39.99

$

Usually ships in 3-6 days

0

80

Toro 112-0662

ROD-CONTROL, CRUISE

$21.99

$

Usually ships in 3-6 days

0

81

Toro 112-6005

PEDAL-BRAKE

$45.99

$

Usually ships in 3-6 days

0

82

Toro 112-6004

LATCH-CRUISE

$

$

Not available

83

Toro 112-0681

BRACKET-SUPPORT, STEERING

$89.99

$

In Stock, only 3 left!

0

84

Toro 112-0679

BRACKET-LOCKOUT

$31.99

$

Usually ships in 3-6 days

0

85

Toro 112-0435

WASHER-BELL

$5.49

$

Usually ships in 3-6 days

0

86

Toro 112-0551

SCREW-HH

$6.99

$

In Stock, Qty 6

0

87

Toro 112-0651

SCREW-TAP

$4.99

$

Usually ships in 3-6 days

0

88

Toro 112-0671

PLATE-SWITCH

$

$

Not available

89

Toro 112-0455

SWITCH-INTERLOCK

$41.99

$

Usually ships in 3-6 days

0

90

Toro 112-0524

SCREW-HWHTF

$6.99

$

In Stock, Qty 5

0

91

Toro 112-3737

BRACKET-SWITCH, PARKING BRAKE

$

$

Not available

92

Toro 112-0441

SWITCH-MOUNT, SNAP

$

$

Not available

93

Toro 112-0500

WASHER-FLAT

$6.99

$

In Stock, only 4 left!

0

94

Toro 112-5996

CUP-BEARING

$

$

Not available

95

Toro 112-0843

SCREW-HWH

$6.99

$

Usually ships in 3-6 days

0

96

Toro 112-0928

BEARING-BALL

$37.99

$

Usually ships in 3-6 days

0

97

Toro 112-5995

BRACKET-PULLEY

$

$

Not available

98

Toro 112-6129

PULLEY ASM

$334.99

$

Usually ships in 3-6 days

0
