13RL60RG244 (LX 426) - Toro Lawn Tractor (SN: 1L107H10100 & Above) (2008) DECK ASSEMBLY Parts Diagram

Lawn Tractor

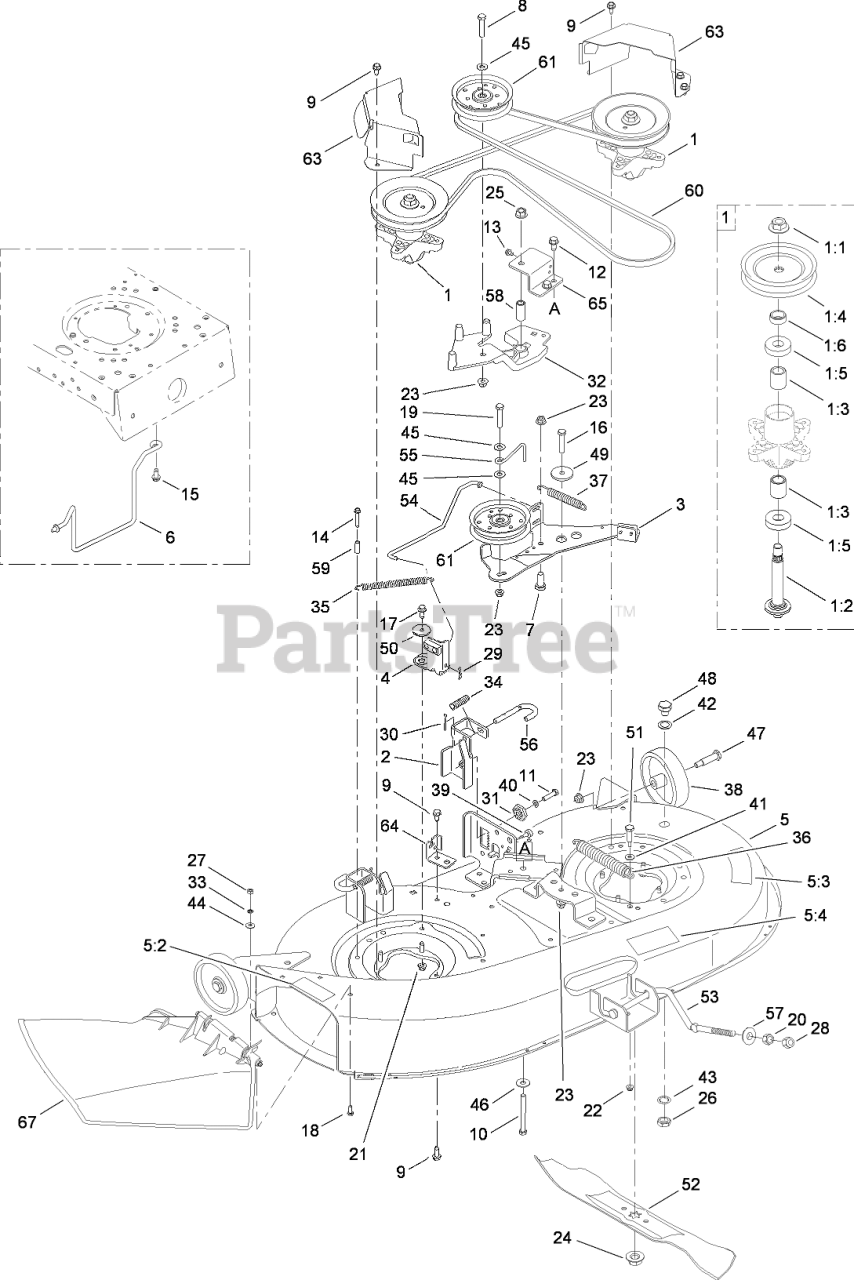

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 112-6063

SPINDLE ASM

$219.99

$

In Stock, only 2 left!

0

1:1

Toro 112-0330

NUT-LOCK, FLANGE

$11.99

$

In Stock, Qty 9

0

1:2

Toro 112-6062

SHAFT-SPINDLE

$69.99

$

In Stock, only 4 left!

0

1:3

Toro 112-0389

SPACER

$7.49

$

Usually ships in 3-6 days

0

1:4

Toro 112-0613

PULLEY-DECK

$58.99

$

In Stock, only 1 left!

0

1:5

Toro 112-0377

BEARING-BALL

$33.99

$

In Stock, only 3 left!

0

1:6

Toro 112-6061

SPACER

$20.99

$

Usually ships in 3-6 days

0

2

Toro 112-0413

LH HANGER BRACKET ASM

$81.99

$

In Stock, only 3 left!

0

3

Toro 112-0606

DECK BRAKE ASM

$

$

Not available

4

Toro 112-3742

BRAKE ASM

$90.99

$

Usually ships in 3-6 days

0

5

Toro 112-5857

DECK AND DECAL ASM

$

$

Not available

5:2

Toro 112-1267

DECAL-DANGER

$

$

Not available

5:3

Toro 112-1265

DECAL-DANGER

$

$

Not available

5:4

Toro 112-1270

DECAL-ROUTING, BELT

$

$

Not available

6

Toro 112-6071

ROD-KEEPER, BELT

$38.99

$

In Stock, only 1 left!

0

7

Toro 112-0855

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

8

Toro 112-0513

SCREW-HH

$7.49

$

In Stock, only 1 left!

0

9

Toro 112-6070

SCREW-TAP

$6.99

$

In Stock, Qty 6

0

10

Toro 112-3745

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

11

Toro 112-0373

SCREW-HH

$7.49

$

In Stock, only 4 left!

0

12

Toro 112-0906

SCREW-HWHTF

$6.99

$

Usually ships in 3-6 days

0

13

Toro 112-6022

SCREW-TAP

$7.49

$

Usually ships in 3-6 days

0

14

Toro 112-0843

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

15

Toro 112-0395

SCREW-HWH

$14.99

$

In Stock, Qty 19

0

16

Toro 112-0557

SCREW-HH

$7.49

$

In Stock, only 1 left!

0

17

Toro 112-1090

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

18

Toro 112-0499

SCREW-HH

$

$

Not available

19

Toro 112-0421

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

20

Toro 112-0458

NUT-HEX

$

$

Not available

21

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

22

Toro 112-0636

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 1 left!

0

23

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 5

0

24

Toro 112-0330

NUT-LOCK, FLANGE

$11.99

$

In Stock, Qty 9

0

25

Toro 112-0859

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 2 left!

0

26

Toro 112-0351

NUT-HEX

$10.99

$

Usually ships in 3-6 days

0

27

Toro 112-0522

NUT-HEX

$

$

Not available

28

Toro 112-0476

NUT-LOCK, HEX (NYLON)

$7.49

$

In Stock, only 2 left!

0

29

Toro 112-0459

PIN-COTTER

$

$

Not available

30

Toro 112-0412

PIN-COTTER

$7.49

$

Usually ships in 3-6 days

0

31

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$25.99

$

In Stock, only 1 left!

0

32

Toro 112-6069

BRACKET-IDLER

$117.99

$

Usually ships in 3-6 days

0

33

Toro 112-0623

RETAINER-BOLT

$

$

Not available

34

Toro 112-0406

SPRING-COMPRESSION

$12.99

$

In Stock, only 1 left!

0

35

Toro 112-0528

SPRING-EXTENSION

$27.99

$

In Stock, only 1 left!

0

36

Toro 112-6043

SPRING-EXTENSION

$32.99

$

Usually ships in 3-6 days

0

37

Toro 112-3746

SPRING-EXTENSION

$18.99

$

In Stock, Qty 5

0

38

Toro 112-0337

WHEEL-DECK, REAR

$18.99

$

In Stock, only 2 left!

0

39

Toro 112-1016

BUMPER

$11.99

$

Usually ships in 3-6 days

0

40

Toro 112-0366

WASHER-LOCK

$

$

Not available

41

Toro 112-3695

WASHER-FLAT
(Superseded to 112-5989)

$7.49

$

Usually ships in 3-6 days

0

42

Toro 112-0339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

43

Toro 112-0643

WASHER-LOCK

$6.99

$

Usually ships in 3-6 days

0

44

Toro 112-0485

WASHER-SPRING

$7.49

$

In Stock, only 1 left!

0

45

Toro 112-0572

WASHER-FLAT

$

$

Not available

46

Toro 112-0380

WASHER-FLAT

$16.99

$

Usually ships in 3-6 days

0

47

Toro 112-0334

BOLT-SHOULDER

$15.99

$

In Stock, Qty 11

0

48

Toro 112-0577

PLUG

$

$

Not available

49

Toro 112-0584

SPACER-SHOULDER

$43.99

$

In Stock, only 2 left!

0

50

Toro 112-3747

SPACER-SHOULDER

$7.99

$

Usually ships in 3-6 days

0

51

Toro 112-6068

BOLT-SHOULDER

$5.99

$

Usually ships in 3-6 days

0

52

Toro 112-0315

BLADE

$31.99

$

In Stock, Qty 20+

0

53

Toro 112-0607

ROD-DECK, FRONT ADJUSTMENT

$51.99

$

In Stock, only 3 left!

0

54

Toro 112-3748

ROD-BRAKE

$33.99

$

In Stock, only 1 left!

0

55

Toro 112-5879

ROD-KEEPER, BELT

$10.99

$

In Stock, only 1 left!

0

56

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$23.99

$

In Stock, only 2 left!

0

57

Toro 112-0641

CUP-PIVOT, LIFT

$9.49

$

In Stock, only 2 left!

0

58

Toro 112-3749

SPACER

$19.99

$

Usually ships in 3-6 days

0

59

Toro 112-0644

SPACER

$

$

Not available

60

Toro 112-5800

BELT-V TYPE

$84.99

$

In Stock, only 1 left!

0

61

Toro 112-0314

PULLEY-IDLER

$63.99

$

In Stock, only 2 left!

0

63

Toro 112-6067

COVER-BELT

$42.99

$

Usually ships in 3-6 days

0

64

Toro 112-0718

BRACKET-CABLE, DECK
(Superseded to 119-8462)

$

$

Not available

65

Toro 112-6066

SUPPORT-BRACKET, PIVOT

$

$

Not available

67

Toro 112-0353

DISCHARGE CHUTE ASM

$182.99

$

In Stock, only 1 left!

0
