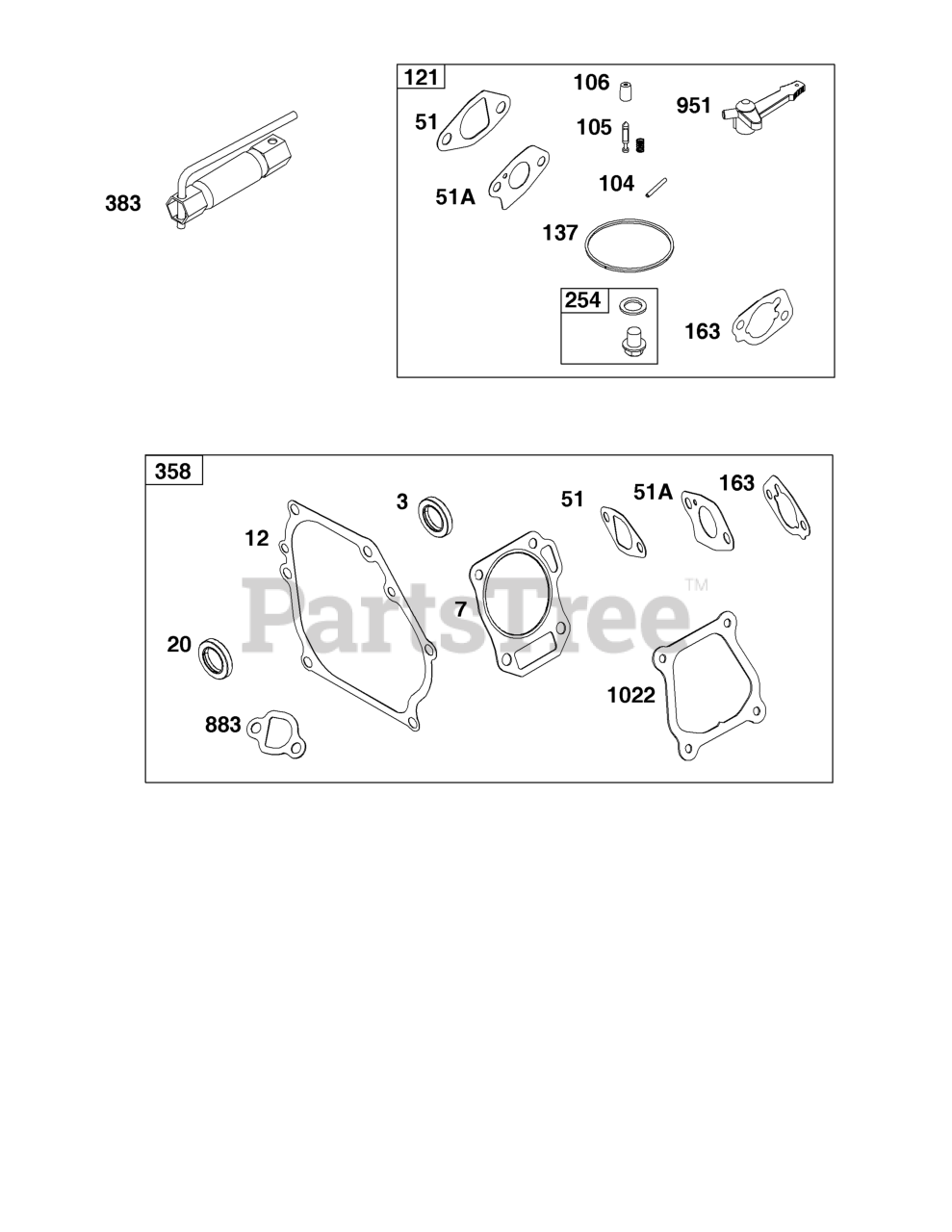

13R232-0003-F1 - Briggs & Stratton Horizontal Engine Service Parts and Tools Group Parts Diagram

Horizontal Engine

Service Parts and Tools Group Parts Diagram

  • Title

3

Briggs & Stratton 590712

SEAL, Oil

$12.99

$

In Stock, only 2 left!

0

7

Briggs & Stratton 591445

GASKET, Cylinder Head

$13.99

$

In Stock, Qty 13

0

12

Briggs & Stratton 590608

GASKET, Crankcase

$10.99

$

In Stock, Qty 18

0

20

Briggs & Stratton 590712

SEAL, Oil

Note: (PTO Side)

$12.99

$

In Stock, only 2 left!

0

51

Briggs & Stratton 590612

GASKET, Intake

$4.49

$

In Stock, Qty 12

0

51A

Briggs & Stratton 590613

GASKET, Intake

$4.49

$

In Stock, Qty 7

0

104

Briggs & Stratton 592486

PIN, Float Hinge

$4.99

$

Usually ships in 2-12 days

0

105

VALVE, Inlet

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

106

SEAT, Inlet

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

121

Briggs & Stratton 594958

Kit-Carburetor Overhaul

Note: (Service Kits may include extra parts not specific to this engine.)

$31.99

$

In Stock, Qty 5

0

137

GASKET, Float Bowl

Note: (Not Available Individually) (See Reference 121 For Replacement)

$

$

Not available

163

Briggs & Stratton 590605

GASKET, Air Cleaner

$5.99

$

In Stock, Qty 20+

0

254

Briggs & Stratton 592493

DRAIN, Carburetor Bowl

$4.49

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 594951

GASKET SET, Engine

Note: (Service Kits may include extra parts not specific to this engine.)

$63.99

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 590721

WRENCH, Spark Plug

$6.99

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 591156

GASKET, Exhaust

$4.99

$

In Stock, only 4 left!

0

951

Briggs & Stratton 590614

LEVER, Choke

$11.99

$

Usually ships in 2-12 days

0
