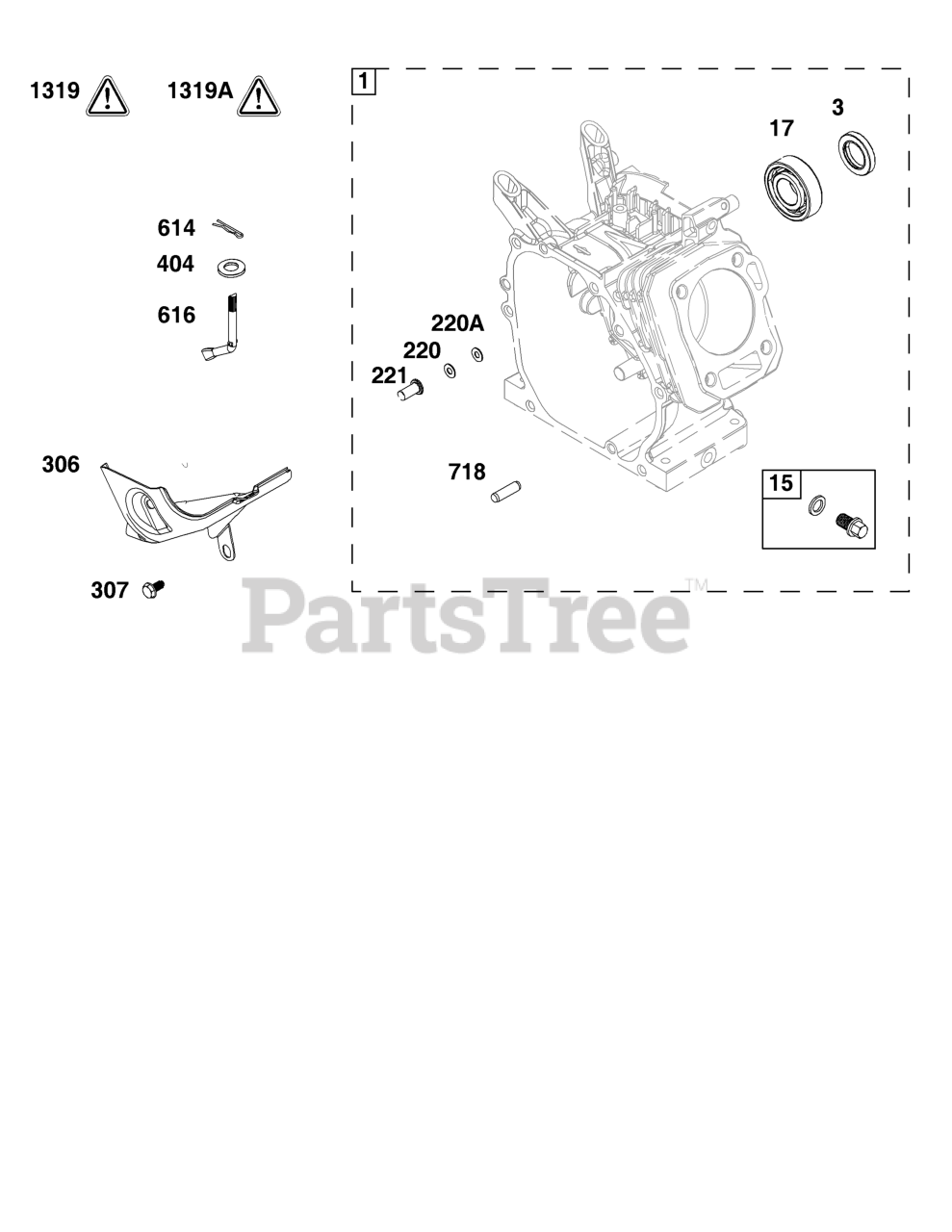

13R232-0003-F1 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Cylinder Assembly

Note: (Currently Not Available)

$

$

Not available

3

Briggs & Stratton 590712

SEAL, Oil

Note: (Magneto Side)

$12.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 590678

PLUG, Oil Drain

$5.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 590715

BEARING, Ball

$13.99

$

In Stock, only 1 left!

0

220

Briggs & Stratton 590677

WASHER

Note: (Governor Gear)

$3.49

$

Usually ships in 2-12 days

0

220A

Briggs & Stratton 590675

WASHER

Note: (Governor Gear)

$3.99

$

Usually ships in 2-12 days

0

221

Briggs & Stratton 590676

CUP, Governor

$8.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 590636

SHIELD, Cylinder

$21.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 590683

SCREW

Note: (Cylinder Shield)

$3.99

$

In Stock, Qty 20+

0

404

Briggs & Stratton 590669

WASHER

Note: (Governor Crank)

$3.49

$

In Stock, only 3 left!

0

614

Briggs & Stratton 590670

PIN, Cotter

$3.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 590668

CRANK, Governor

$13.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 590713

PIN, Locating

$6.99

$

Usually ships in 2-12 days

0

1319

Briggs & Stratton 794467

LABEL, Warning

$20.99

$

Usually ships in 2-12 days

0

1319A

Briggs & Stratton 797669

LABEL, Warning

$18.99

$

Usually ships in 2-12 days

0
