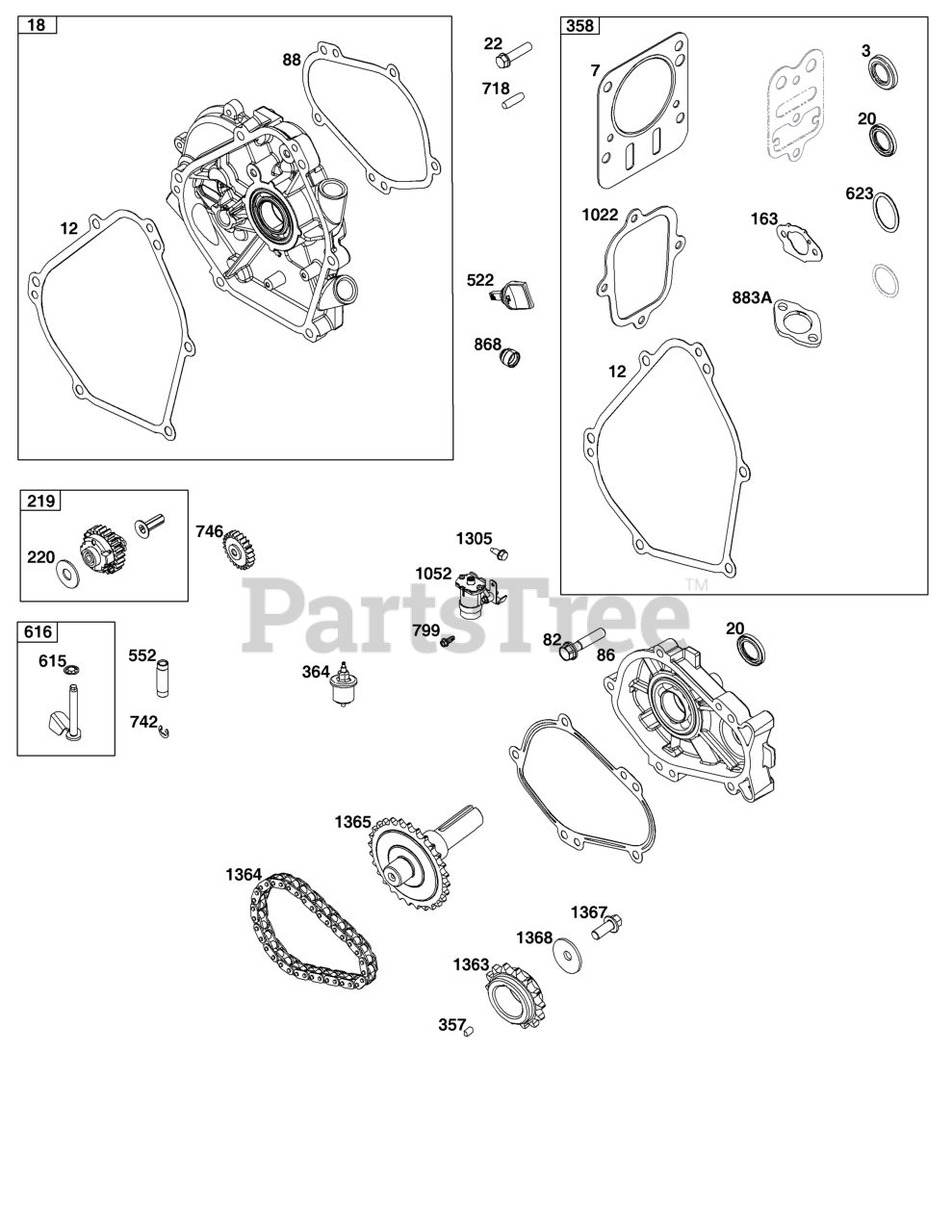

13L362-0052-F8 - Briggs & Stratton Horizontal Engine Crankcase Cover/Sump and Lubrication Group Parts Diagram

Horizontal Engine

Crankcase Cover/Sump and Lubrication Group Parts Diagram

  • Title

3

SEAL, Oil

Note: (Part information located in Cylinder Group.)

$

$

Not available

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

Briggs & Stratton 798462

GASKET, Crankcase

$13.99

$

Usually ships in 2-12 days

0

18

Briggs & Stratton 84001045

COVER, Crankcase

$142.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 692550

SEAL, Oil

Note: (PTO Side)

$8.99

$

Usually ships in 2-12 days

0

22

Briggs & Stratton 594761

SCREW

Note: (Crankcase Cover/Sump)

$4.99

$

Usually ships in 2-12 days

0

82

Briggs & Stratton 807421

SCREW

Note: (Gear Reduction Case)

$3.49

$

Usually ships in 2-12 days

0

86

Briggs & Stratton 790332

COVER, Gear

$55.99

$

Usually ships in 2-12 days

0

88

Briggs & Stratton 790333

GASKET, Gear Cover/Housing

$9.99

$

Usually ships in 2-12 days

0

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

219

Briggs & Stratton 693578

GEAR, Governor

$26.99

$

In Stock, only 2 left!

0

219

Briggs & Stratton 693578

GEAR, Governor

$26.99

$

In Stock, only 2 left!

0

220

Briggs & Stratton 691724

WASHER

Note: (Governor Gear)

$5.49

$

In Stock, only 2 left!

0

357

Briggs & Stratton 790943

KEY, Woodruff

$6.49

$

Usually ships in 2-12 days

0

358

GASKET SET, Engine

Note: (Part information located in Cylinder Group.)

$

$

Not available

364

Briggs & Stratton 695693

TERMINAL, Oil Plug

$13.99

$

Usually ships in 2-12 days

0

522

Briggs & Stratton 798503

PLUG, Dipstick/Fill

$8.99

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 798500

BUSHING, Governor Crank

$8.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 692576

RETAINER, Governor Shaft

$4.99

$

Usually ships in 2-12 days

0

616

Briggs & Stratton 798501

CRANK, Governor

$11.99

$

Usually ships in 2-12 days

0

623

SEAL, O-Ring

Note: (Part information located in Carburetor Group.)

$

$

Not available

718

Briggs & Stratton 592860

PIN, Locating

$4.99

$

Usually ships in 2-12 days

0

742

Briggs & Stratton 692564

RETAINER, E Ring

$4.49

$

In Stock, only 2 left!

0

746

Briggs & Stratton 790278

GEAR, Idler

$17.99

$

Usually ships in 2-12 days

0

799

Briggs & Stratton 699202

SCREW

Note: (Oil Sensor)

$3.99

$

Usually ships in 2-12 days

0

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883A

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

1052

Briggs & Stratton 790141

SENSOR, Oil

$61.99

$

Usually ships in 2-12 days

0

1305

Briggs & Stratton 699691

SCREW

Note: (Oil Sensor Module)

$3.99

$

Usually ships in 2-12 days

0

1363

Briggs & Stratton 790334

SPROCKET, Gear Reduction

$23.99

$

Usually ships in 2-12 days

0

1364

Briggs & Stratton 790335

CHAIN, Gear Reduction

$70.99

$

Usually ships in 2-12 days

0

1365

Briggs & Stratton 790336

SHAFT, Output Gear Reduction

$46.99

$

Usually ships in 2-12 days

0

1367

Briggs & Stratton 690936

SCREW

Note: (Gear Reduction Sprocket)

$6.99

$

Usually ships in 2-12 days

0

1368

Briggs & Stratton 690301

WASHER

Note: (Gear Reduction Sprocket)

$5.99

$

Usually ships in 2-12 days

0
