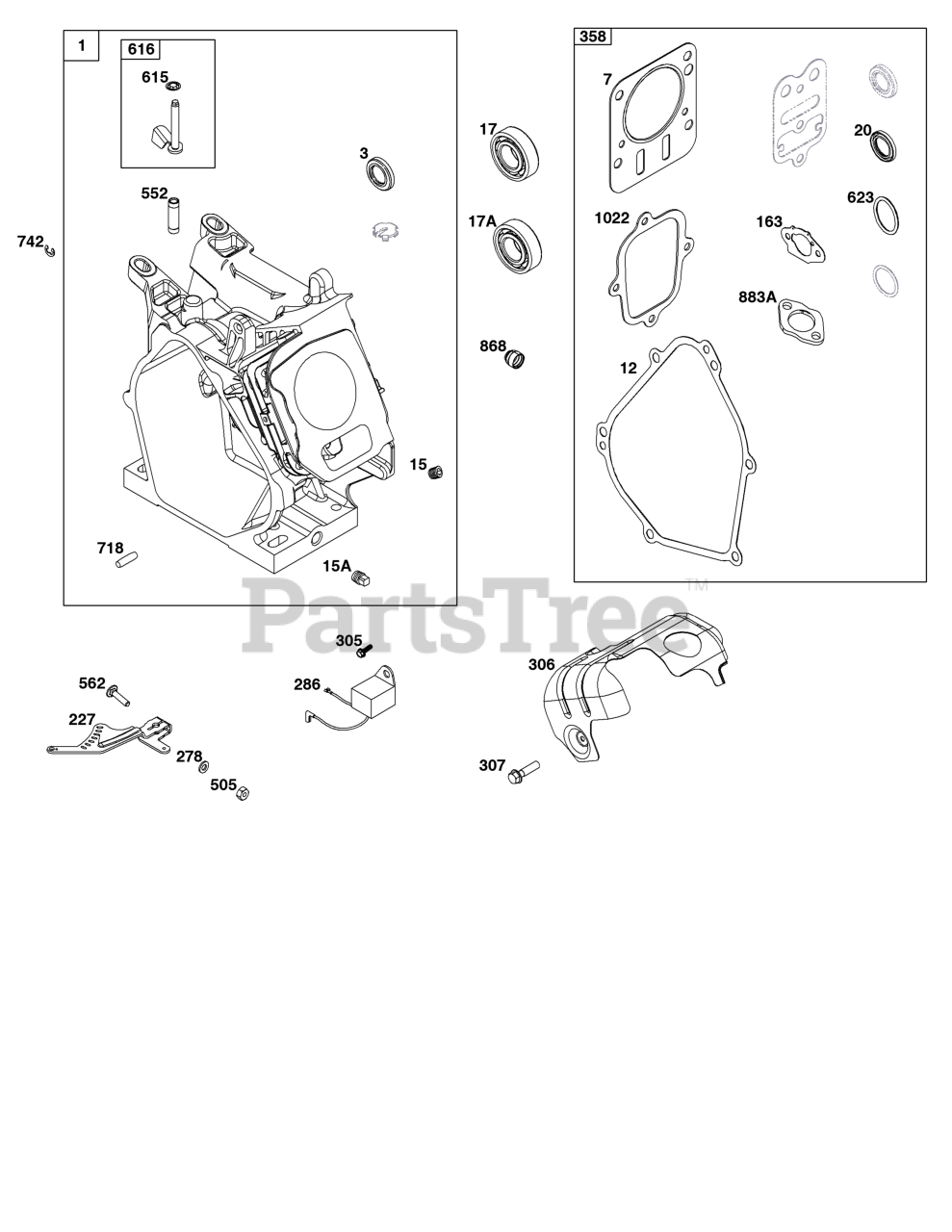

13L332-0313-F8 - Briggs & Stratton Horizontal Engine Cylinder Group Parts Diagram

Horizontal Engine

Cylinder Group Parts Diagram

  • Title

1

Briggs & Stratton 593004

CYLINDER ASSEMBLY

$207.99

$

Usually ships in 2-12 days

0

3

Briggs & Stratton 299819S

SEAL, Oil

Note: (Magneto Side)

$5.49

$

In Stock, Qty 16

0

7

GASKET, Cylinder Head

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

12

GASKET, Crankcase

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

15

Briggs & Stratton 555578

PLUG, Oil Drain

$3.49

$

Usually ships in 2-12 days

0

15A

Briggs & Stratton 691686

PLUG, Oil Drain

$5.49

$

In Stock, only 2 left!

0

17

Briggs & Stratton 798531

BEARING, Ball

Note: (Cylinder)

$29.99

$

Usually ships in 2-12 days

0

17A

Briggs & Stratton 798538

BEARING, Ball

Note: (Cylinder)

$31.99

$

Usually ships in 2-12 days

0

20

SEAL, Oil

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

163

GASKET, Air Cleaner

Note: (Part information located in Carburetor Group.)

$

$

Not available

227

LEVER, Governor Control

Note: (Part information located in Controls Group.)

$

$

Not available

278

WASHER

Note: (Part information located in Controls Group.)

$

$

Not available

286

MODULE, Oil Sensor

Note: (Part information located in Controls Group.)

$

$

Not available

305

SCREW

Note: (Part information located in Blower Housing Group.)

$

$

Not available

306

Briggs & Stratton 594762

SHIELD, Cylinder

$19.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 794822

SCREW

Note: (Cylinder Shield)

$3.99

$

Usually ships in 2-12 days

0

358

Briggs & Stratton 798540

GASKET SET, Engine

Note: (Service Kits may include extra parts not specific to this engine.)

$64.99

$

In Stock, only 1 left!

0

505

NUT

Note: (Part information located in Controls Group.)

$

$

Not available

552

BUSHING, Governor Crank

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

562

BOLT

Note: (Part information located in Controls Group.)

$

$

Not available

615

RETAINER, Governor Shaft

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

616

CRANK, Governor

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

623

SEAL, O-Ring

Note: (Part information located in Carburetor Group.)

$

$

Not available

718

PIN, Locating

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

742

RETAINER, E Ring

Note: (Part information located in Crankcase Cover/Sump and Lubrication Group.)

$

$

Not available

868

SEAL, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

883A

GASKET, Exhaust

Note: (Part information located in Exhaust Group.)

$

$

Not available

1022

GASKET, Rocker Cover

Note: (Part information located in Cylinder Head Group.)

$

$

Not available
