13L332-0313-F8 - Briggs & Stratton Horizontal Engine Crankshaft Group Parts Diagram

Horizontal Engine

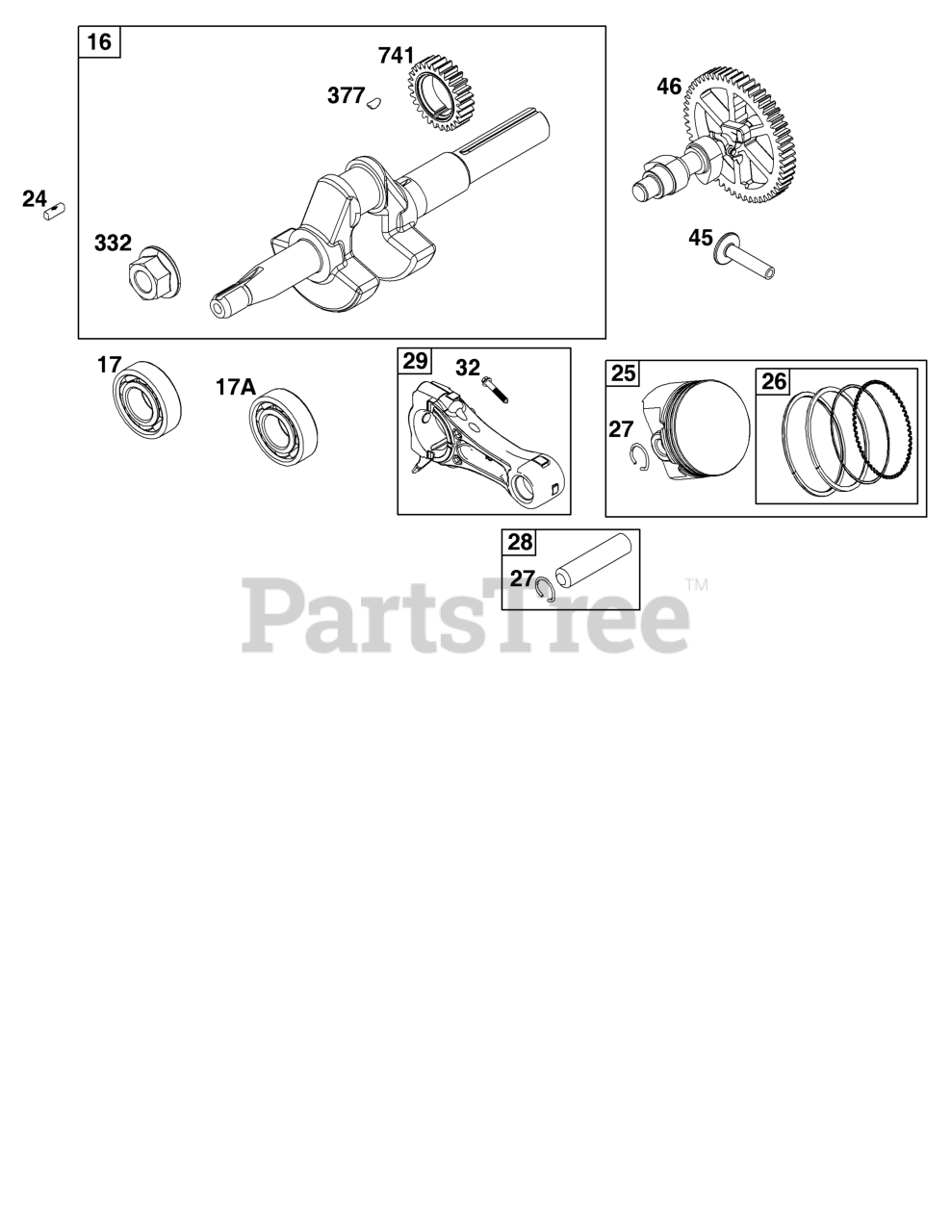

Crankshaft Group Parts Diagram

  • Title

16

Briggs & Stratton 798547

CRANKSHAFT

$185.99

$

Usually ships in 2-12 days

0

17

BEARING, Ball

Note: (Part information located in Cylinder Group.)

$

$

Not available

17A

BEARING, Ball

Note: (Part information located in Cylinder Group.)

$

$

Not available

24

Briggs & Stratton 796335

KEY, Flywheel

$5.49

$

In Stock, Qty 20+

0

25

Briggs & Stratton 799063

PISTON ASSEMBLY

Note: (Standard)

$91.99

$

In Stock, only 4 left!

0

25

Briggs & Stratton 799064

PISTON ASSEMBLY

Note: (.020 Oversize)

$120.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 791969

SET, Ring

Note: (Standard)

$38.99

$

In Stock, Qty 12

0

26

Briggs & Stratton 793001

SET, Ring

Note: (.020 Oversize)

$40.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 691866

LOCK, Piston Pin

$4.49

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

PIN, Piston

Note: (Standard)

$9.49

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 798813

ROD, Connecting

$43.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 797437

SCREW

Note: (Connecting Rod)

$4.99

$

Usually ships in 2-12 days

0

45

TAPPET, Valve

Note: (Part information located in Cylinder Head Group.)

$

$

Not available

46

Briggs & Stratton 696813

CAMSHAFT
(Superseded to 555790)

$69.99

$

Usually ships in 2-12 days

0

332

NUT

Note: (Part information located in Flywheel/Ignition/Starter Group.)

$

$

Not available

377

Briggs & Stratton 690979

KEY, Woodruff

$3.49

$

In Stock, Qty 8

0

741

Briggs & Stratton 695087

GEAR, Timing

$18.99

$

Usually ships in 2-12 days

0
