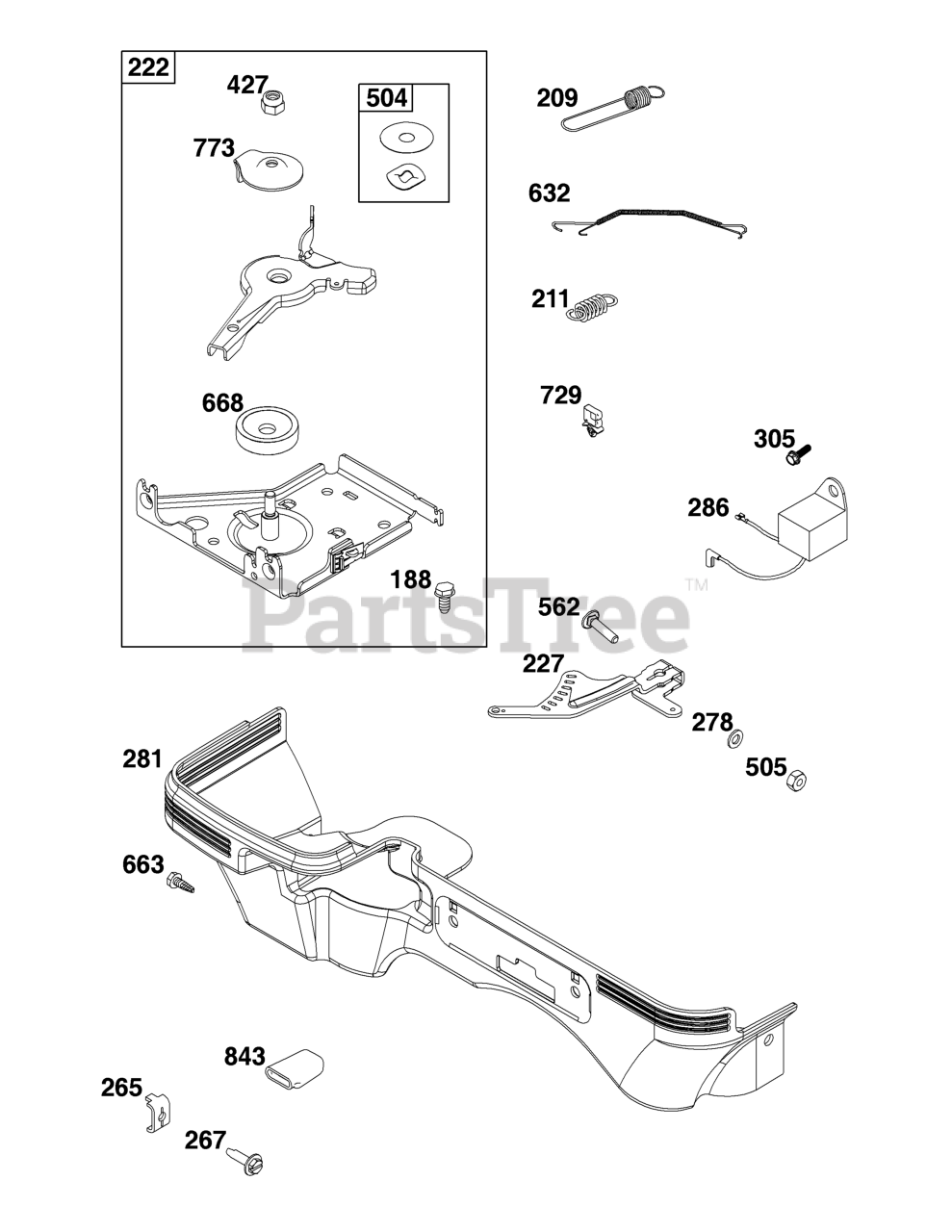

13L332-0313-F8 - Briggs & Stratton Horizontal Engine Controls Group Parts Diagram

Horizontal Engine

Controls Group Parts Diagram

  • Title

188

Briggs & Stratton 699479

SCREW

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

209

Briggs & Stratton 595317

SPRING, Governor

$5.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 595344

SPRING, Governed Idle

$4.49

$

In Stock, only 1 left!

0

222

Briggs & Stratton 798478

BRACKET, Control

$45.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 798465

LEVER, Governor Control

$16.99

$

Usually ships in 2-12 days

0

265

Briggs & Stratton 691024

CLAMP, Casing

$3.99

$

In Stock, Qty 7

0

267

Briggs & Stratton 699492

SCREW

Note: (Casing Clamp)

$3.99

$

In Stock, Qty 12

0

278

Briggs & Stratton 798196

WASHER

Note: (Governor Control Lever)

$3.49

$

Usually ships in 2-12 days

0

281

Briggs & Stratton 798484

PANEL, Control

$23.99

$

In Stock, only 1 left!

0

286

Briggs & Stratton 798470

MODULE, Oil Sensor

$61.99

$

Usually ships in 2-12 days

0

305

SCREW

Note: (Part information located in Blower Housing Group.)

$

$

Not available

427

Briggs & Stratton 798458

NUT

Note: (Control Bracket)

$3.99

$

Usually ships in 2-12 days

0

504

Briggs & Stratton 695383

SET, Friction Washer

$10.99

$

Usually ships in 2-12 days

0

505

Briggs & Stratton 793515

NUT

Note: (Governor Control Lever)

$3.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 798197

BOLT

Note: (Governor Control Lever)

$10.99

$

Usually ships in 2-12 days

0

632

Briggs & Stratton 798464

SPRING/LINK, Mechanical Governor

$8.99

$

In Stock, only 2 left!

0

663

Briggs & Stratton 699206

SCREW

Note: (Control Panel)

$3.99

$

In Stock, only 3 left!

0

668

Briggs & Stratton 694257

SPACER

$4.99

$

In Stock, only 1 left!

0

729

Briggs & Stratton 594752

CLIP, Wire

$

$

Not available

773

Briggs & Stratton 694258

RETAINER

$4.49

$

In Stock, only 1 left!

0

843

Briggs & Stratton 695588

SLEEVE, Lever

$4.99

$

Usually ships in 2-12 days

0
