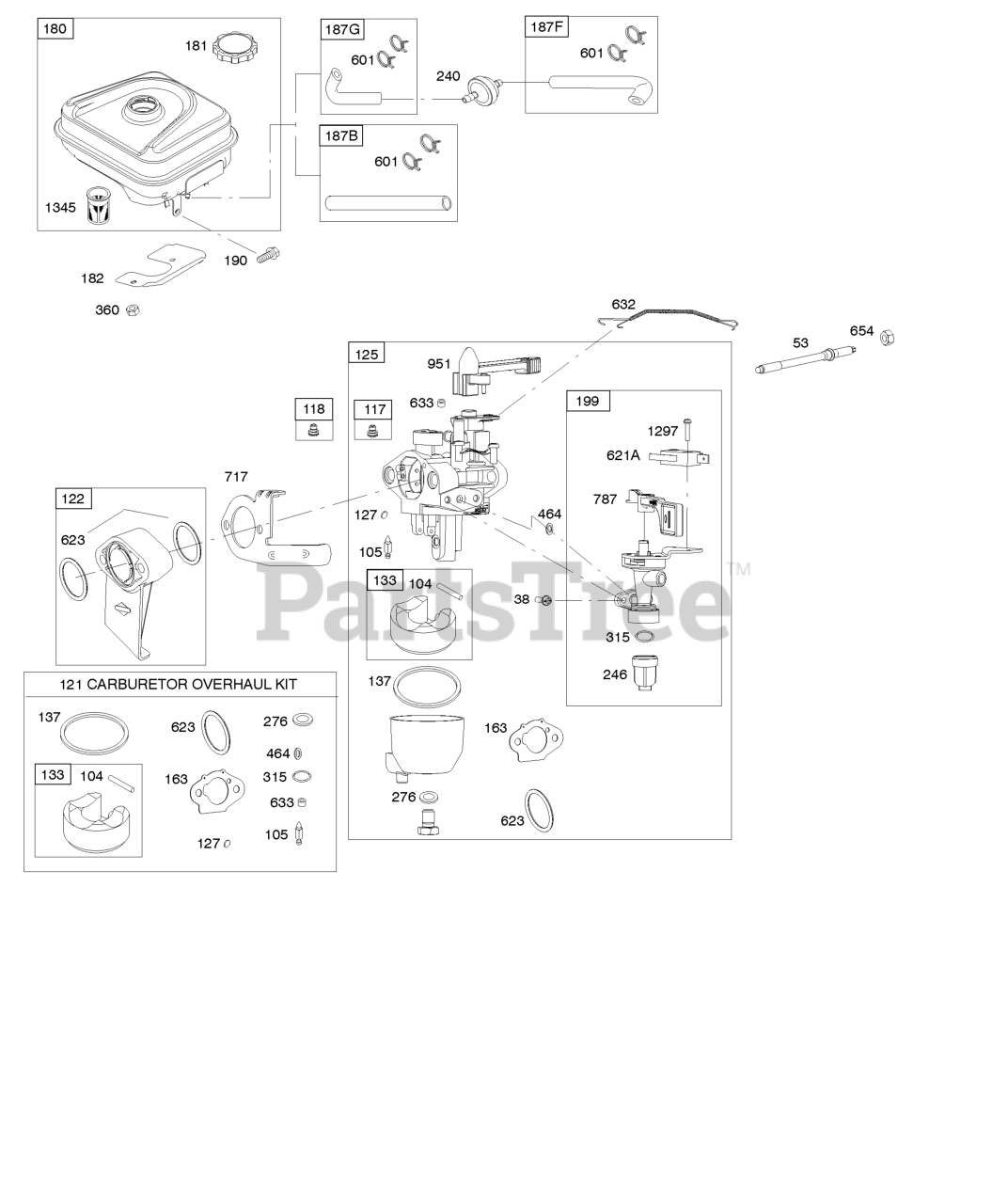

13H332-0158-B8 - Briggs & Stratton Horizontal Engine Carburetor, Carburetor Overhaul Kit, Fuel Supply Parts Diagram

Horizontal Engine

Carburetor, Carburetor Overhaul Kit, Fuel Supply Parts Diagram

  • Title

38

Briggs & Stratton 698557

SCREW

Note: (Fuel Shut Off Valve)

$3.99

$

Usually ships in 2-12 days

0

53

Briggs & Stratton 798524

Stud

Note: (Carburetor)

$7.99

$

In Stock, only 2 left!

0

104

Briggs & Stratton 698536

Pin-Float Hinge

$5.99

$

Usually ships in 2-12 days

0

105

Briggs & Stratton 698537

VALVE, Float Needle

$15.99

$

In Stock, Qty 17

0

117

Briggs & Stratton 690861

Jet-Main

Note: (Standard)

$17.99

$

Usually ships in 2-12 days

0

118

Briggs & Stratton 690741

Jet-Main

Note: (High Altitude)

$17.99

$

In Stock, only 1 left!

0

121

Briggs & Stratton 798521

Kit-Carburetor Overhaul

$78.99

$

Usually ships in 2-12 days

0

122

Briggs & Stratton 798510

Spacer-Carburetor

$13.99

$

Usually ships in 2-12 days

0

125

Briggs & Stratton 798523

Carburetor
(Superseded to 595318)

$83.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 844590

Plug-Welch

$10.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 798529

Float-Carburetor

$28.99

$

Usually ships in 2-12 days

0

137

Briggs & Stratton 798522

Gasket-Float Bowl

$8.49

$

Usually ships in 2-12 days

0

163

Briggs & Stratton 798508

Gasket-Air Cleaner

Note: (Air Cleaner Elbow To Carburetor)

$5.99

$

In Stock, only 1 left!

0

180

Briggs & Stratton 798494

Tank-Fuel

Note: (Metal)

$139.99

$

Usually ships in 2-12 days

0

181

Briggs & Stratton 794641

CAP, Fuel Tank

Note: (Metal)

$20.99

$

In Stock, only 3 left!

0

182

Briggs & Stratton 798495

Bracket-Fuel Tank

$22.99

$

Usually ships in 2-12 days

0

187B

Briggs & Stratton 791766

LINE, Fuel

Note: (15" Long)(Cut to Required Length)

$7.99

$

In Stock, Qty 20+

0

187F

Briggs & Stratton 798822

Line-Fuel

$22.99

$

Usually ships in 2-12 days

0

187G

Briggs & Stratton 798823

Line-Fuel

Note: (Length 2.5 Inches)

$21.99

$

Usually ships in 2-12 days

0

190

Briggs & Stratton 798496

SCREW

Note: (Fuel Tank)

$3.99

$

Usually ships in 2-12 days

0

199

Briggs & Stratton 798634

Valve-Fuel Shut Off

$101.99

$

In Stock, only 1 left!

0

240

Briggs & Stratton 394358S

FILTER, Fuel

Note: (White, 75 Microns)

$5.99

$

In Stock, Qty 20+

0

246

Briggs & Stratton 799008

Bowl-Fuel Filter
(Superseded to 595153)

$13.99

$

Usually ships in 2-12 days

0

276

Briggs & Stratton 690997

Washer-Sealing

$7.99

$

In Stock, Qty 6

0

315

Briggs & Stratton 799035

SEAL, O-Ring
(Superseded to 595153)

Note: (Filter Bowl)

$13.99

$

Usually ships in 2-12 days

0

360

Briggs & Stratton 690941

NUT

Note: (Fuel Tank Bracket)

$4.99

$

In Stock, Qty 7

0

464

Briggs & Stratton 698550

SEAL, O-Ring

Note: (Fuel Shut-off Valve)

$7.49

$

Usually ships in 2-12 days

0

601

Briggs & Stratton 791850

CLAMP, Hose

Note: (Green)

$3.49

$

In Stock, Qty 20+

0

621A

Briggs & Stratton 798636

Switch-Stop
(Superseded to 799073)

$101.99

$

In Stock, only 1 left!

0

623

Briggs & Stratton 798511

Seal-O Ring

Note: (Carburetor Spacer)

$5.49

$

In Stock, only 2 left!

0

632

Briggs & Stratton 798464

Spring/Link-Mechanical Governor

$8.99

$

In Stock, only 2 left!

0

633

Briggs & Stratton 690722

SEAL, Choke/Throttle Shaft

$15.99

$

In Stock, only 4 left!

0

654

Briggs & Stratton 794838

NUT

Note: (Carburetor)

$3.99

$

In Stock, Qty 10

0

717

Briggs & Stratton 798527

Bracket-Air Cleaner

$13.99

$

Usually ships in 2-12 days

0

787

Briggs & Stratton 798635

ARM, Lever

$59.99

$

Usually ships in 2-12 days

0

951

Briggs & Stratton 798528

LEVER, Choke

$26.99

$

Usually ships in 2-12 days

0

1297

Briggs & Stratton 798637

SCREW

$10.99

$

Usually ships in 2-12 days

0

1345

Briggs & Stratton 792917

FILTER, Filler Neck

$5.49

$

In Stock, only 2 left!

0
