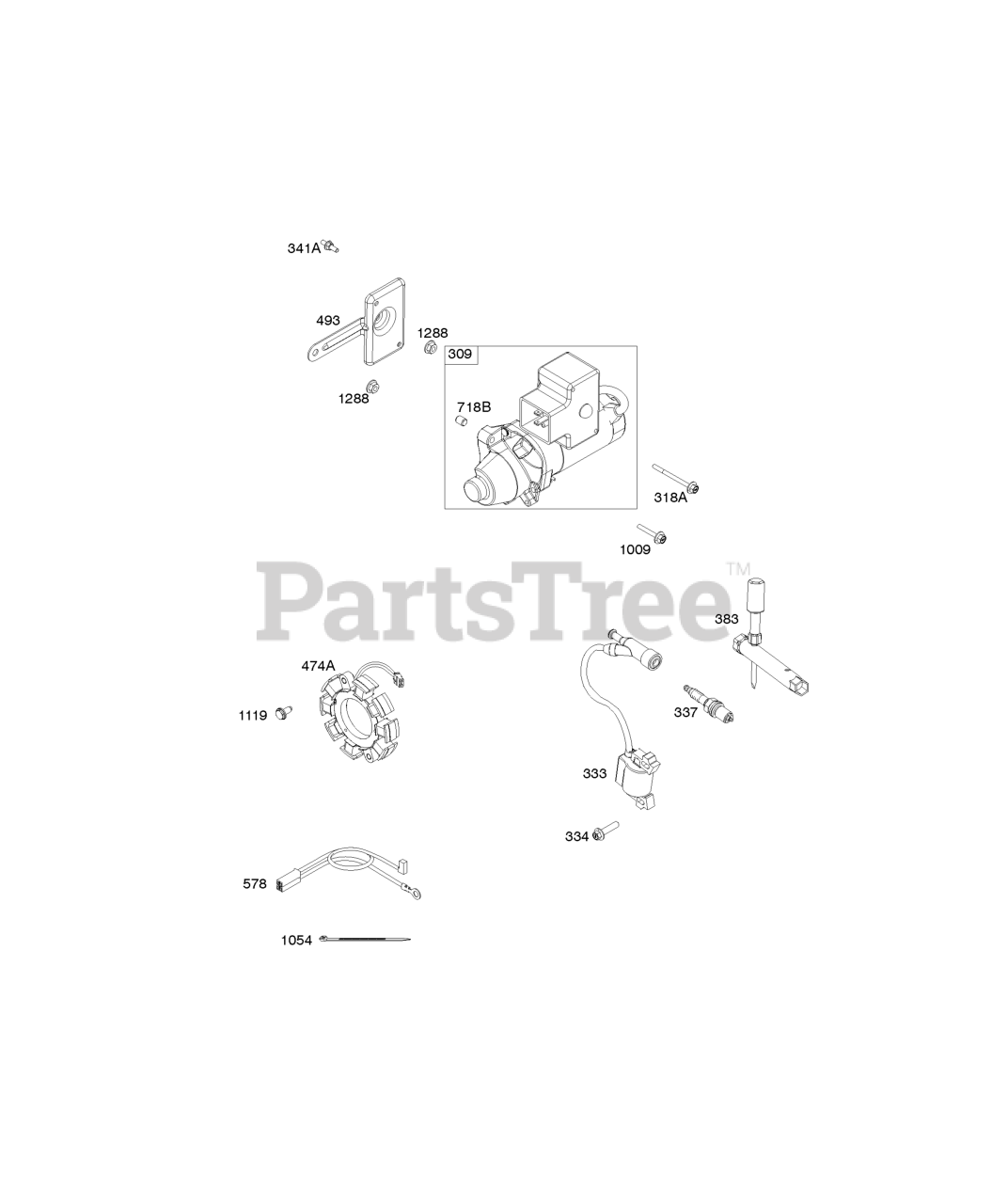

13D136-0022-F1 - Briggs & Stratton Horizontal Engine Alternator, Electric Starter, Ignition Parts Diagram

Horizontal Engine

Alternator, Electric Starter, Ignition Parts Diagram

  • Title

309

Briggs & Stratton 591703

Motor-Starter

$285.99

$

Usually ships in 2-12 days

0

318A

Briggs & Stratton 591522

Screw

Note: (Mounting Bracket)

$3.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 590603

ARMATURE, Magneto

$57.99

$

In Stock, only 1 left!

0

334

Briggs & Stratton 590644

SCREW

Note: (Magneto Armature)

$3.99

$

In Stock, only 2 left!

0

337

Briggs & Stratton 691043

PLUG, Spark

Note: (EMS)

$6.49

$

In Stock, Qty 20+

0

341A

Briggs & Stratton 591509

Stud

Note: (Mounting Bracket) (Fuel Tank)

$4.49

$

Usually ships in 2-12 days

0

383

Briggs & Stratton 590721

WRENCH, Spark Plug

$6.99

$

Usually ships in 2-12 days

0

474A

Briggs & Stratton 595569

Alternator

Note: (60W A/C ONLY)

$70.99

$

Usually ships in 2-12 days

0

493

Briggs & Stratton 591521

Bracket-Mounting

Note: (Starter Motor)

$8.49

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 591523

Wire Assembly

$21.99

$

Usually ships in 2-12 days

0

718B

Briggs & Stratton 591466

PIN, Locating

Note: (Starter Motor)

$5.99

$

Usually ships in 2-12 days

0

1009

Briggs & Stratton 591476

SCREW

Note: (USE REFERENCE 697 ONLY)

$3.99

$

Usually ships in 2-12 days

0

1054

Briggs & Stratton 280275

Tie-Cable

$4.49

$

Usually ships in 2-12 days

0

1119

Briggs & Stratton 590644

SCREW

Note: (Alternator)

$3.99

$

In Stock, only 2 left!

0

1288

Briggs & Stratton 591527

Nut

Note: (Snow Hood)

$3.99

$

In Stock, only 2 left!

0
