13D136-0010-F1 - Briggs & Stratton Horizontal Engine Carburetor, Carburetor Overhaul Kit Parts Diagram

Horizontal Engine

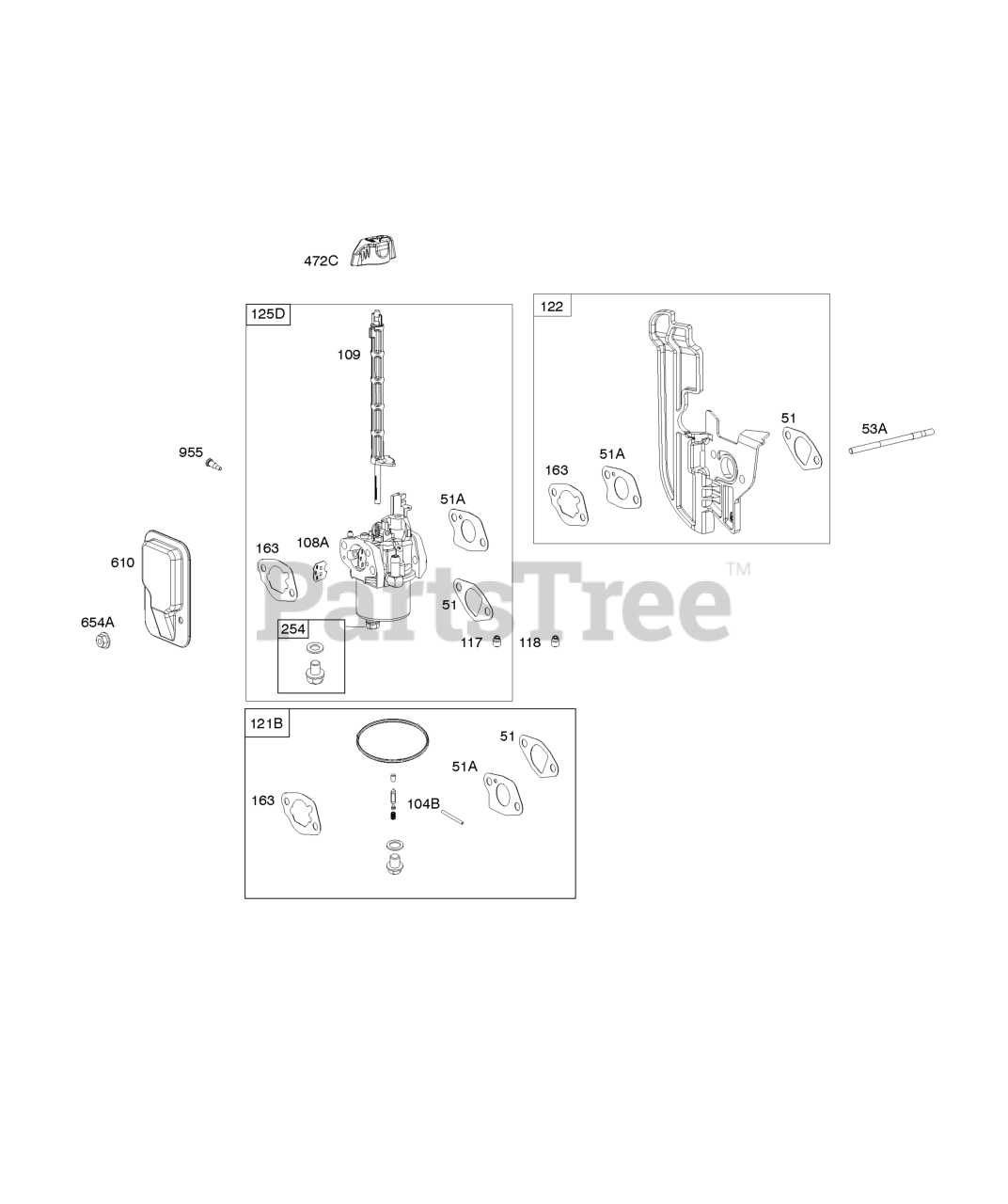

Carburetor, Carburetor Overhaul Kit Parts Diagram

  • Title

51

Briggs & Stratton 590612

GASKET, Intake

$4.49

$

In Stock, only 3 left!

0

51A

Briggs & Stratton 590613

GASKET, Intake

$4.49

$

In Stock, only 3 left!

0

53A

Briggs & Stratton 591455

Stud

Note: (Carburetor)

$6.49

$

Usually ships in 2-12 days

0

104B

Briggs & Stratton 592486

PIN, Float Hinge

$4.99

$

Usually ships in 2-12 days

0

108A

Briggs & Stratton 591860

Valve-Choke

$9.49

$

In Stock, only 1 left!

0

109

Briggs & Stratton 591542

Shaft-Choke

$20.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 591859

Jet-Main

Note: (Standard)

$19.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 591861

JET, Main

Note: (High Altitude)

$19.99

$

In Stock, only 1 left!

0

121B

Briggs & Stratton 591770

KIT, Carburetor Overhaul

$43.99

$

In Stock, Qty 9

0

122

Briggs & Stratton 592550

Spacer-Carburetor

$13.99

$

Usually ships in 2-12 days

0

125D

Briggs & Stratton 592447

Carburetor
(Superseded to 595785)

$103.99

$

In Stock, only 3 left!

0

163

Briggs & Stratton 590605

GASKET, Air Cleaner

$5.99

$

In Stock, Qty 6

0

254

Briggs & Stratton 592493

DRAIN, Carburetor Bowl

$4.49

$

Usually ships in 2-12 days

0

472C

Briggs & Stratton 791948

KNOB, Choke Shaft

$7.99

$

In Stock, Qty 5

0

610

Briggs & Stratton 591153

Arrester-Intake

$20.99

$

Usually ships in 2-12 days

0

654A

Briggs & Stratton 591527

Nut

Note: (Carburetor)

$3.99

$

In Stock, only 2 left!

0

955

Briggs & Stratton 595329

PLUG, Carburetor

$3.99

$

Usually ships in 2-12 days

0
