13CX614G401 - Yard-Man Lawn Tractor (2003) Engine Accessories Parts Diagram

Lawn Tractor

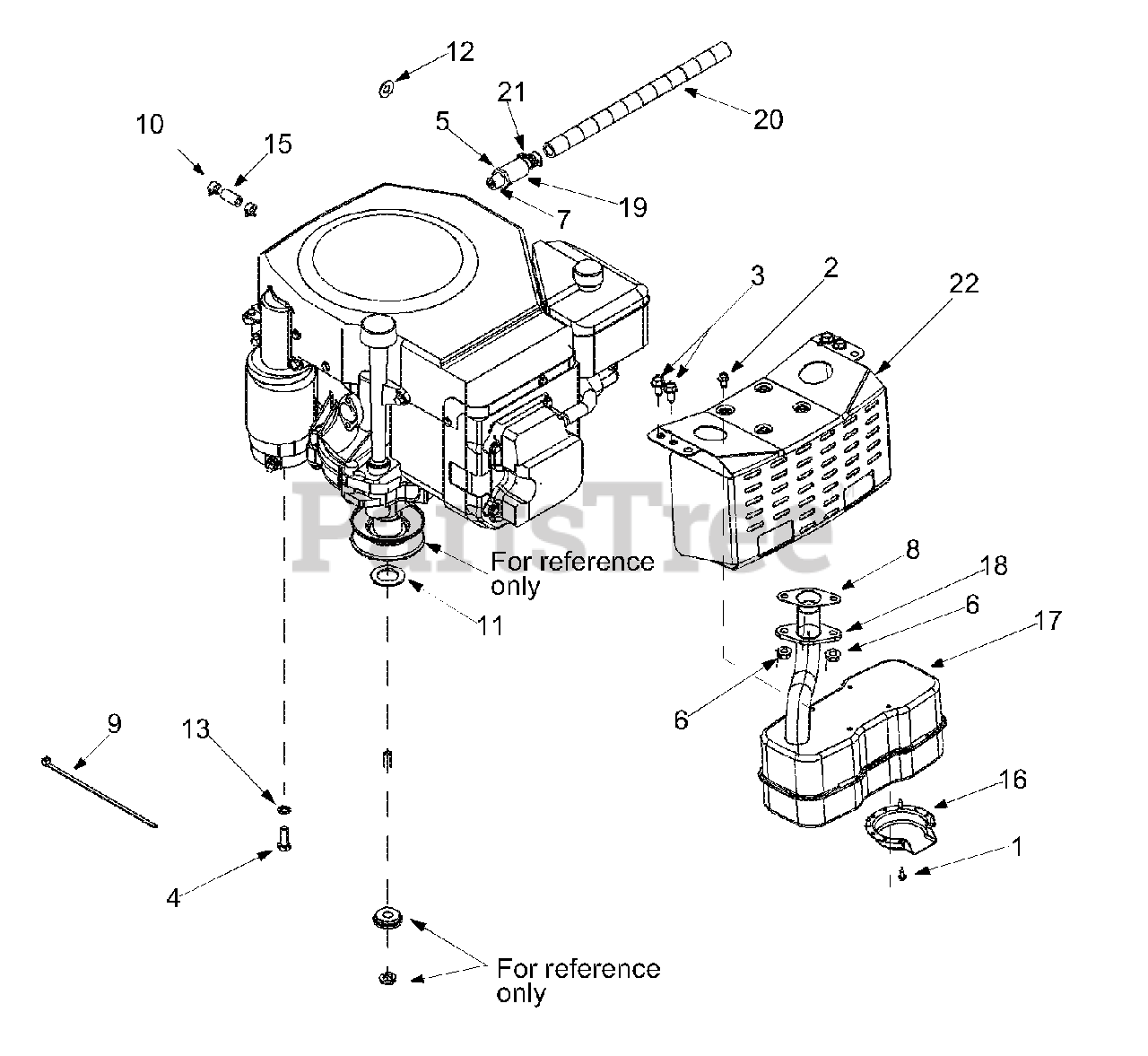

Engine Accessories Parts Diagram

  • Title
1

MTD 710-0227

AB Screw #8-18 x 0.5

$4.49

$

In Stock, Qty 20+

0

2

MTD 710-0599

TT Screw 1/4-20 x 0.5

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0726

AB Screw 5/16-12 x 0.75

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-3206A

Hex Screw M8

$3.99

$

In Stock, Qty 13

0

5

MTD 712-3017

Hex Nut 3/8-16

$4.49

$

In Stock, Qty 20+

0

6

MTD 712-3086

Flange Nut M8

$4.49

$

In Stock, only 2 left!

0

7

MTD 721-0331

Sealant: Loctite (TM)

$

$

Currently unavailable

8

MTD 721-0375

Gasket: Exhaust
(Superseded to KH-12-041-03)

$

$

Not available

9

MTD 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

10

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

11

MTD 736-0277

Flat Washer

$4.49

$

In Stock, Qty 20+

0

12

MTD 736-0300

Flat Washer

$4.49

$

In Stock, Qty 20+

0

13

MTD 736-0607

Lock Washer 5/16

$3.99

$

In Stock, Qty 20+

0

15

MTD 751-0535

Hose: Fuel Line

$

$

Currently unavailable

16

MTD 751-0564

Deflector: Muffler
(Superseded to 751-0564B)

$13.99

$

In Stock, only 3 left!

0

17

MTD 751-0617

Muffler: Single Inlet
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

18

MTD 751-0810A

Exhaust Pipe

$

$

Currently unavailable

19

MTD 751-3140

Oil Drain
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

20

MTD 751-3141

Oil Drain Extension
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 6

0

21

MTD 751-3142

Oil Drain Cap

$4.49

$

In Stock, Qty 13

0

22

MTD 783-0615B

Heat Shield
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615B-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0
