13BX694G401 - Yard-Man Lawn Tractor (1999) Engine Accessories, Muffler Parts Diagram

Lawn Tractor

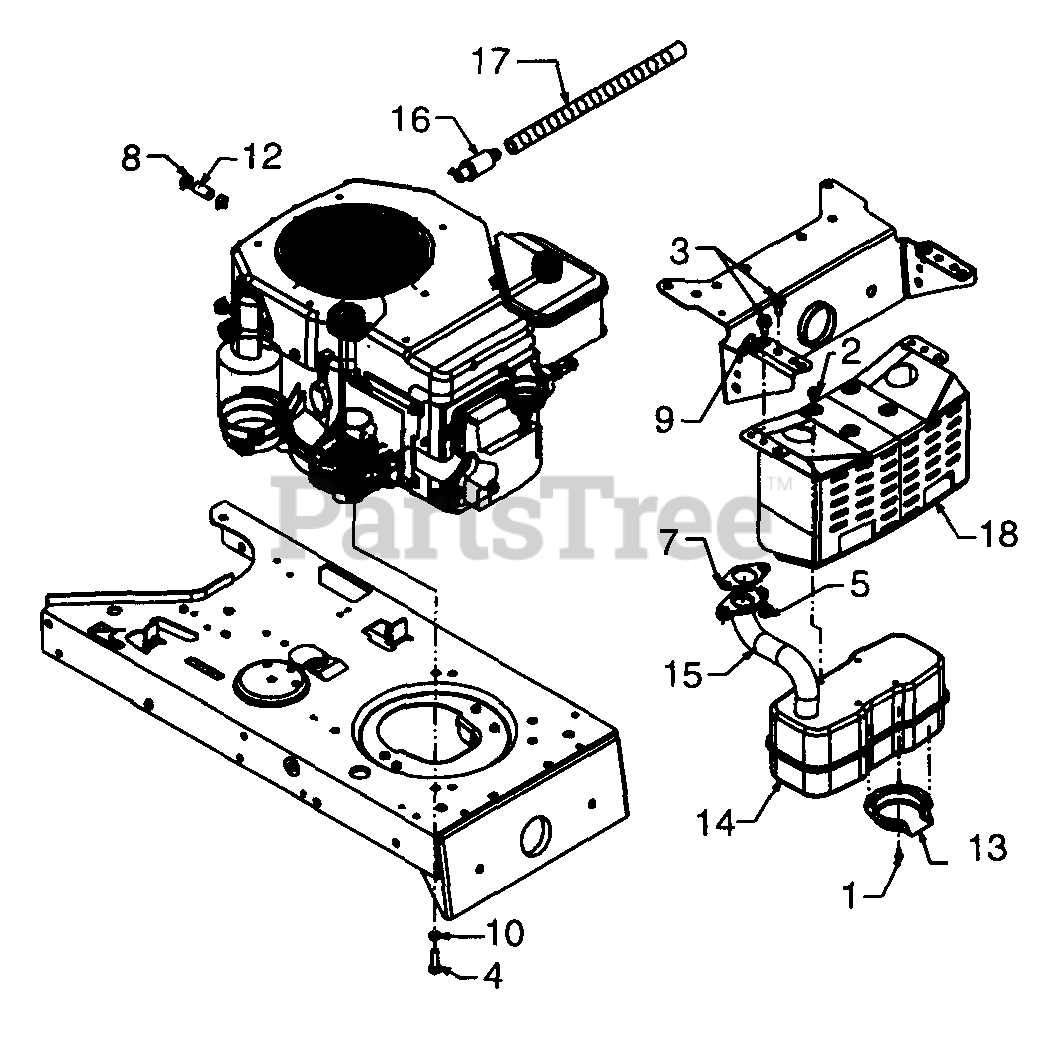

Engine Accessories, Muffler Parts Diagram

  • Title

1

MTD 710-0148

Hex Tap Scr. #8-32 x .38" Lg.

$4.49

$

In Stock, Qty 16

0

2

MTD 710-0599

Hex Wash. TT-Tap Scr. 1/4-20 x 5" Lg.

$4.49

$

In Stock, Qty 20+

0

3

MTD 710-0604

Hex Wash. TT-Tap Scr. 5/16-18 x .62"
(Superseded to 710-0604A)

$4.49

$

In Stock, Qty 20+

0

4

MTD 710-3206A

Hex Bolt M8 x 1.25

$3.99

$

In Stock, Qty 13

0

5

MTD 712-3086

Hex Flange Nut M8 Thd.

$4.49

$

In Stock, only 2 left!

0

7

MTD 721-0375

Exhaust Gasket
(Superseded to KH-12-041-03)

$

$

Not available

8

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

9

MTD 726-0272

Clamp

$7.49

$

Usually ships in 3-6 days

0

10

MTD 736-0607

External L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

12

MTD 751-0535-12

Fuel Line 12" Lg.
(Superseded to 751-10349-13)

$17.99

$

In Stock, only 3 left!

0

13

MTD 751-0564

Muffler Deflector
(Superseded to 751-0564B)

$13.99

$

In Stock, Qty 5

0

14

MTD 751-0617

Muffler
(Superseded to 951-0617C)

$149.99

$

In Stock, Qty 5

0

15

MTD 751-0621

Exhaust Pipe
(Superseded to 751-0621A)

$

$

Not available

16

MTD 751-3140

Oil Drain
(Superseded to 951-10517A)

$24.99

$

Usually ships in 3-6 days

0

17

MTD 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

18

MTD 783-0615

Muffler Bracket.
(Superseded to 783-0615E-0637)

Variations

MTD 783-0615-0637

Muffler Bracket - POWDER BLACK (0637)

$64.99

$

In Stock, only 1 left!

0

$64.99

$

In Stock, only 1 left!

0
