13BX614G401 - Yard-Man Lawn Tractor (1998) Wheels, Front/Wheels, Rear/Steering Assembly/Axle, Rear Parts Diagram

Lawn Tractor

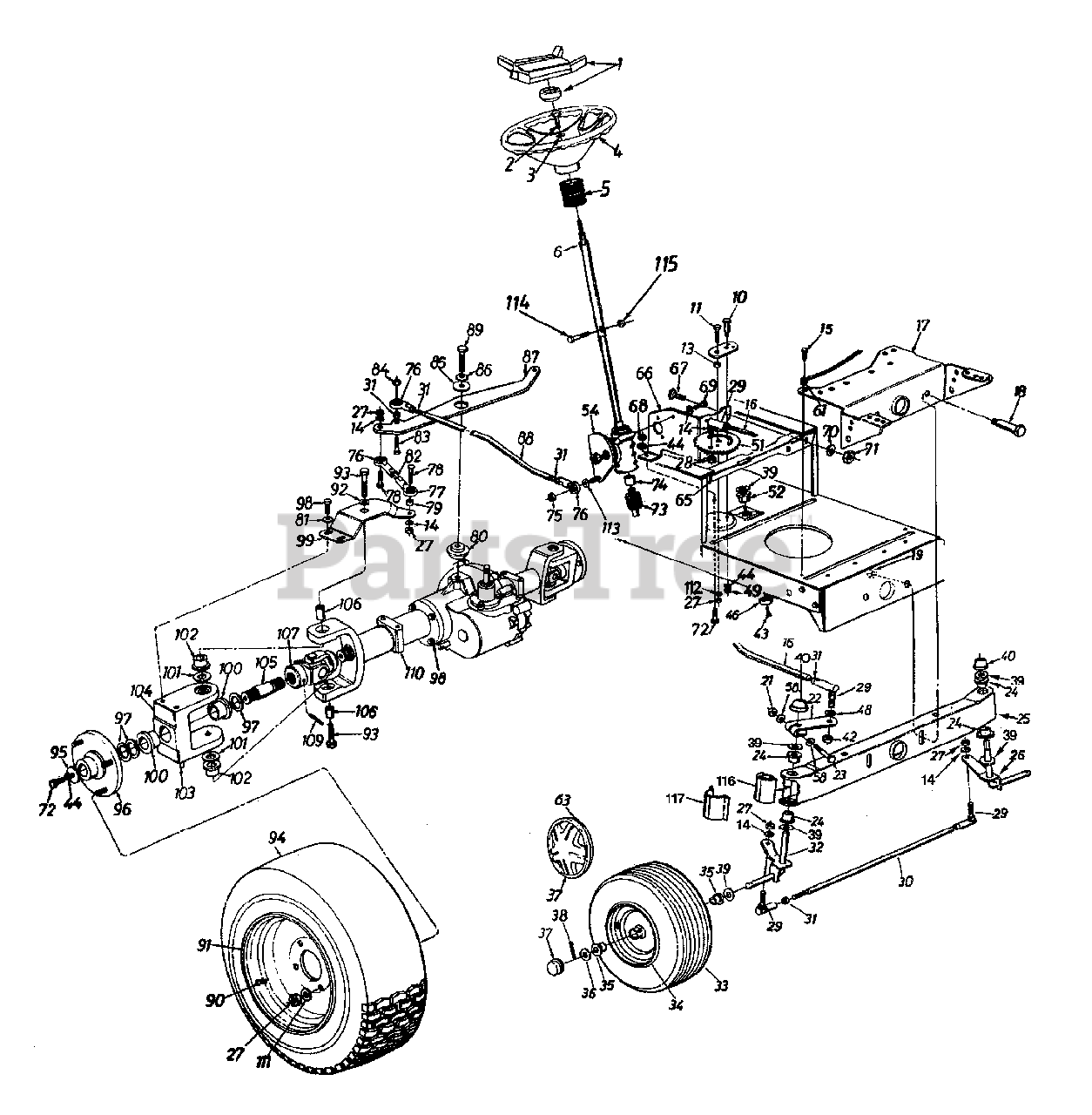

Wheels, Front/Wheels, Rear/Steering Assembly/Axle, Rear Parts Diagram

  • Title

1

MTD 731-0955

Steering Wheel Insert
(Superseded to 931-0955)

$

$

Not available

MTD 731-0220

Steering Wheel Cap
(Superseded to 931-0220)

$9.49

$

In Stock, only 2 left!

0

2

MTD 712-0643

Hex Patch Bolt 5/16-18 x 1" Lg.

$

$

Currently unavailable

3

MTD 736-0242

Belleville Wash. .345" I.D.

$4.49

$

In Stock, Qty 20+

0

4

MTD 631-0027

Steering Wheel (4 Spoke)
(Superseded to 931-0027A)

$97.99

$

Usually ships in 3-6 days

0

5

MTD 731-0954

Steering Bellow
(Superseded to 931-0954)

$21.99

$

Usually ships in 3-6 days

0

6

MTD 738-0943

Upper Steering Shaft

$

$

Not available

?9

MTD 17198A

Retainer Plate
(Superseded to 783P08577A)

$7.49

$

In Stock, only 3 left!

0

10

MTD 738-0141

Shoulder Bolt .437" Dia. x .35" Lg.
(Superseded to 938-0141)

$7.49

$

In Stock, Qty 7

0

11

MTD 710-1039

Hex Bolt 3/8-24 x 1.0" Lg. (Grade 5)

$4.49

$

In Stock, only 3 left!

0

13

MTD 750-0535

Spacer .380" I.D. x .625" O.D. x .227"
(Superseded to 950-0535)

$4.49

$

In Stock, only 4 left!

0

14

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

15

MTD 710-0726

Hex Wash. Hd. Self-Tap Scr.

$4.49

$

In Stock, Qty 20+

0

16

MTD 711-1107

Steering Drag Link
(Superseded to 911-1107)

$39.99

$

In Stock, only 1 left!

0

17

MTD 783-0041A

Front Pivot Brkt.
(Superseded to 783-0041C)

Variations

MTD 783-0041A-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

MTD 783-0041A-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

MTD 783-0041A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0041A-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0041A-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

MTD 783-0041A-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

18

MTD 738-0527

Shoulder Bolt .498" Dia. x 2.04" Lg.

$8.49

$

In Stock, Qty 5

0

19

MTD 712-0431

Hex L-Nut 3/8-16 Thd.
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

21

MTD 712-0411

Hex Cent. L-Nut 5/16-24 Thd.

$4.49

$

In Stock, Qty 20+

0

22

MTD 683-0055

Steering Arm Front Axle
(Superseded to 983-0055-0637)

$47.99

$

In Stock, only 1 left!

0

23

MTD 710-0772

Hex Bolt 5/16-24 x 2.00" Lg. (Gr. 5)

$4.49

$

Usually ships in 3-6 days

0

24

MTD 741-0659

Hex Flg. Brg. .634" I.D.
(Superseded to 941-0659)

$5.49

$

In Stock, Qty 5

0

25

MTD 683-0128

Pivot Bar Ass'y.
(Superseded to 683-0128B-0637)

Variations

MTD 683-0128-0637

Steel Axle Pivot Bar Assembly - POWDER BLACK (0637)

$97.99

$

In Stock, only 3 left!

0

$97.99

$

In Stock, only 3 left!

0

26

MTD 683-0127

Front Axle Ass'y.-L.H.
(Superseded to 983-0127)

$101.99

$

In Stock, only 1 left!

0

27

MTD 712-0241

Hex Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 13

0

28

MTD 712-0446

Hex Jam Nut 3/8-24 Thd.
(Superseded to 912-0446)

$6.99

$

In Stock, only 1 left!

0

29

MTD 723-0448

Ball Joint 3/8-24 Thd.
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

30

MTD 747-0753

Tie Rod

$34.99

$

In Stock, only 1 left!

0

31

MTD 712-0711

Hex Jam Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 20+

0

32

MTD 683-0126

Front Axle Ass'y.-R.H.
(Superseded to 983-0126)

$101.99

$

In Stock, only 1 left!

0

33

MTD 634-0056

Wheel Ass'y. Comp.
(Superseded to 634-0056B-0911)

Variations

MTD 634-0056-0911

Tire and Wheel Assembly - Carlisle Gray (0911)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056-0912

Tire and Wheel Assembly - Dico Gray (0912)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056-0941

Tire and Wheel Assembly - Carlisle Yellow (0941)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056-0942

Tire and Wheel Assembly - Dico Yellow (0942)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056-0981

Tire and Wheel Assembly - Carlisle Green (0981)

$249.99

$

In Stock, only 3 left!

0

MTD 634-0056-0915

Wheel Assembly, Gray - Duro Gray (0915)

$249.99

$

In Stock, only 4 left!

0

MTD 634-0056-0931

WHEEL ASM-W/TIRE - Carlisle Beige (0931)

$202.99

$

In Stock, only 1 left!

0

MTD 634-0056-0945

WHEEL ASM-COMPLETE - Duro Yellow (0945)

$

$

Not available

$249.99

$

In Stock, only 3 left!

0

MTD 734-0864

Tire Only

Variations

MTD 734-0864-0901

TIRE 15 X 6 - Carlisle (0901)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0902

TIRE 15 X 6 DICO T - Dico (0902)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0904

TIRE 15 X 6 - Cheng (0904)

$136.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

MTD 734-0864-0906

TIRE-15X6 KENDA - Kenda (0906)

$

$

Not available

$111.99

$

Usually ships in 3-6 days

0

34

MTD 634-0024

Front Wheel Rim Only
(Superseded to 753-0838-0662)

Variations

MTD 634-0024-0629

Wheel Rim Kit, Grey - SILVER FLAKE (0629)

$

$

Not available

MTD 634-0024-0662

Wheel Rim Kit, Grey - OYSTER GRAY (0662)

$

$

Not available

MTD 634-0024-0688

Wheel Rim Kit, Grey - SPRING GREEN (0688)

$

$

Not available

MTD 634-0024-0499

KIT-WHEEL RIM - CUB BEIGE (0499)

$

$

Not available

MTD 634-0024-0674

KIT-WHEEL RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

MTD 737-0211A

Grease Fitting

$10.99

$

Usually ships in 3-6 days

0

35

MTD 741-0487A

Bearing
(Superseded to 741-0487C)

$7.49

$

Usually ships in 3-6 days

0

36

MTD 736-0285

Fl-Wash. .635" I.D. x 1.59" O.D.

$4.49

$

In Stock, Qty 9

0

37

MTD 734-1787A

Front Hub Cap

$

$

Not available

MTD 734-1788A

Rear Hub Cap
(Superseded to 934-1788A)

$34.99

$

Usually ships in 3-6 days

0

38

MTD 714-0470

Cotter Pin 1/8" Dia. x 1.25" Lg.

$4.49

$

In Stock, Qty 20+

0

39

MTD 736-0187

Fl-Wash. .640" I.D. x .24" O.D.

$4.49

$

In Stock, Qty 20+

0

40

MTD 726-0214

Push Cap

$10.99

$

In Stock, only 3 left!

0

42

UNKNOWN

$

$

Not available

43

MTD 710-1309

Pan Hd. Bolt 5/16-18 x .62"

$4.49

$

In Stock, Qty 20+

0

44

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

46

MTD 750-0389

Cap

$

$

Currently unavailable

48

MTD 736-0169

L-Wash. 3/8" I.D.

$3.99

$

In Stock, Qty 20+

0

49

MTD 712-0158

Hex Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 13

0

51

MTD 717-1701

Steering Gear Segment

$

$

Not available

52

MTD 741-0656

Hex Flg. Brg. .634 I.D.
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

54

MTD 618-0114

Steering Box Ass'y. Comp.

$

$

Not available

58

MTD 736-0271

Wave Wash. .32" I.D. x .62"
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 10

0

61

MTD 736-0607

Ext. L-Wash. 5/16" I.D.

$3.99

$

In Stock, Qty 20+

0

63

MTD 727-0425A

Spring Clip
(Superseded to 927-0425A)

$

$

Not available

65

MTD 17778A

Horizontal Cross Bracket

$

$

Not available

66

MTD 783-0369

Vertical Mounting Bracket

$

$

Not available

67

MTD 710-0412

Hex Bolt 1/4-28 x .75" Lg.

$5.99

$

In Stock, Qty 8

0

68

MTD 712-0123

Hex Nut 5/16-24 Thd.
(Superseded to 912-3057)

$6.99

$

In Stock, only 3 left!

0

69

MTD 710-0514

Hex Bolt 3/8-16 x 1.0" Lg.

$4.49

$

In Stock, Qty 20+

0

70

MTD 736-0270

Bell-Wash. .265" I.D. x .75"

$3.99

$

In Stock, Qty 20+

0

71

MTD 712-0138

Hex Nut 1/4-28 Thd.

$6.99

$

Usually ships in 3-6 days

0

72

MTD 710-0157

Hex Bolt 5/16-24 x .75" Lg.

$4.49

$

In Stock, Qty 8

0

73

MTD 717-1466

Pinion Shaft

$

$

Not available

74

MTD 717-1461

Steering Shaft Splined Coupler

$

$

Not available

75

MTD 712-0262

Hex L-Nut 3/8-24 Thd.

$4.49

$

In Stock, Qty 12

0

76

MTD 723-0420

Rod End 3/8-24 Thd.-R.H.

$

$

Not available

77

MTD 723-0421

Rod End 3/8-24 Thd.-L.H.
(Superseded to 923-0421)

$

$

Not available

78

MTD 710-0459

Hex Bolt 3/8-24 x 1.5" Lg.(Gr. 5)
(Superseded to 710-0459A)

$6.99

$

In Stock, Qty 8

0

79

MTD 750-0535

Spacer .38" I.D. x .625"
(Superseded to 950-0535)

$4.49

$

In Stock, only 4 left!

0

80

MTD 750-0809

Shld. Spacer .51" I.D.

$

$

Not available

81

MTD 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

82

MTD 747-0761

Tie Rod

$

$

Not available

83

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

84

MTD 712-0296

Hex Patch L-Nut 3/8-24 Thd.
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

85

MTD 736-3027

Fl-Wash. .531" I.D. x 1.75"

$

$

Not available

86

MTD 736-0253

Bell-Wash. .505" I.D. x 1.0"

$3.99

$

In Stock, Qty 20+

0

87

MTD 17764

Steering Boom
(Superseded to 17764-0637)

Variations

MTD 17764-0637

Steering Boom - POWDER BLACK (0637)

$

$

Not available

$

$

88

MTD 738-0838

Steering Link

$

$

Not available

89

MTD 710-3181

Hex Bolt 1/2-13 x 1.5" Lg. (Gr. 5)

$6.99

$

In Stock, only 1 left!

0

90

MTD 734-0255

Air Valve
(Superseded to 934-0255)

$4.49

$

In Stock, Qty 20+

0

91

MTD 734-1607

Rim Only

Variations

MTD 734-1607-0499

No Longer Available - CUB BEIGE (0499)

$

$

Not available

MTD 734-1607-0629

No Longer Available - SILVER FLAKE (0629)

$

$

Not available

MTD 734-1607-0662

No Longer Available WHEEL RIM - OYSTER GRAY (0662)

$

$

Not available

MTD 734-1607-0674

No Longer Available WHEEL RIM - YARDMAN YELLOW (0674)

$

$

Not available

$

$

92

MTD 736-0921

L-Washer 1/2" I.D.

$4.49

$

In Stock, Qty 5

0

93

MTD 710-1142

Hex Bolt 1/2-20 x 1.75" Lg.(Gr. 5)

$

$

Not available

94

MTD 734-1668

Rear Wheel Ass'y. Comp.

Variations

MTD 734-1668-0911

No Longer Available WHL ASM - Carlisle Gray (0911)

$

$

Not available

MTD 734-1668-0912

No Longer Available - Dico Gray (0912)

$

$

Not available

MTD 734-1668-0941

No Longer Available WHL ASM - Carlisle Yellow (0941)

$

$

Not available

$

$

MTD 734-1596

Tire Only

Variations

MTD 734-1596-0905

Tire, 20 X 8 X 8 - Duro (0905)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1596-0902

TIRE 20 X 8-DICO M - Dico (0902)

$87.99

$

Usually ships in 3-6 days

0

MTD 734-1596-0906

TIRE 20 X 8 KENDA - Kenda (0906)

$99.99

$

In Stock, only 1 left!

0

MTD 734-1596-0901

TIRE 20 X 8 - Carlisle (0901)

$

$

Not available

MTD 734-1596-0904

TIRE 20 X 8 CHENG - Cheng (0904)

$

$

Not available

$200.99

$

Usually ships in 3-6 days

0

95

MTD 736-0343

Fl-Wash. .33" I.D. x 1.25"

$4.49

$

In Stock, Qty 7

0

96

MTD 917-1298

Wheel Flange Ass'y.

Note: (Includes #105)

$

$

Not available

97

MTD 736-0420

Fl-Wash. 1.0" x 1.56"
(Superseded to 936-0420)

$

$

Not available

98

MTD 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.

$4.99

$

In Stock, Qty 8

0

99

MTD 17646

Steering Brkt.-R.H.

Variations

MTD 17646-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

MTD 17647

Steering Brkt.-L.H.

Note: (Not Shown)

Variations

MTD 17647-0637

Steering Brkt. - L.H. - POWDER BLACK (0637)

$

$

Not available

$

$

100

MTD 741-0558

Flange Brg. 1.0" I.D.
(Superseded to 741-04488)

$9.49

$

In Stock, only 4 left!

0

101

MTD 736-0445

Fl-Wash. .76" I.D. x 1.5"

$4.49

$

In Stock, only 3 left!

0

102

MTD 741-0547

Flange Brg. 3/4" I.D.

$15.99

$

Usually ships in 3-6 days

0

103

MTD 737-3001

Grease Fitting

$12.99

$

Usually ships in 3-6 days

0

104

MTD 717-1291

Wheel Brg. Housing

$

$

Not available

105

MTD 917-1298

Wheel Flange Ass'y

Note: (Includes #96)

$

$

Not available

106

MTD 717-1271

Pivot Sleeve

$

$

Not available

107

MTD 717-1270

U-Joint

$263.99

$

Usually ships in 3-6 days

0

109

MTD 715-0208

Grooved Roll Pin 1.0" Lg.

$

$

Not available

110

MTD 717-1285

Axle Horn Ass'y.

$

$

Not available

111

MTD 736-0105

Bell-Wash. .38" I.D. x .88"

$4.49

$

In Stock, Qty 20+

0

112

MTD 736-0356

Bell-Wash. .39" I.D. x 1.38"
(Superseded to 936-0356)

$

$

Not available

113

MTD 736-0140

Fl-Wash. .385" I.D. x .62"

$7.49

$

In Stock, Qty 7

0

114

MTD 710-0958

Hex Bolt 1/4-20 x 1.31" Lg.
(Superseded to 710-0106)

$3.99

$

In Stock, only 2 left!

0

115

MTD 712-0324

Hex Ins. L-Nut 1/4-20 Thd.

$3.99

$

In Stock, Qty 16

0

116

MTD 731-1291A

Pivot Bar End Cap
(Superseded to 931-1291A)

$15.99

$

In Stock, Qty 11

0

117

UNKNOWN

$

$

Not available
