13BX614G401 - Yard-Man Lawn Tractor (1998) Hood (Style 4) Parts Diagram

Lawn Tractor

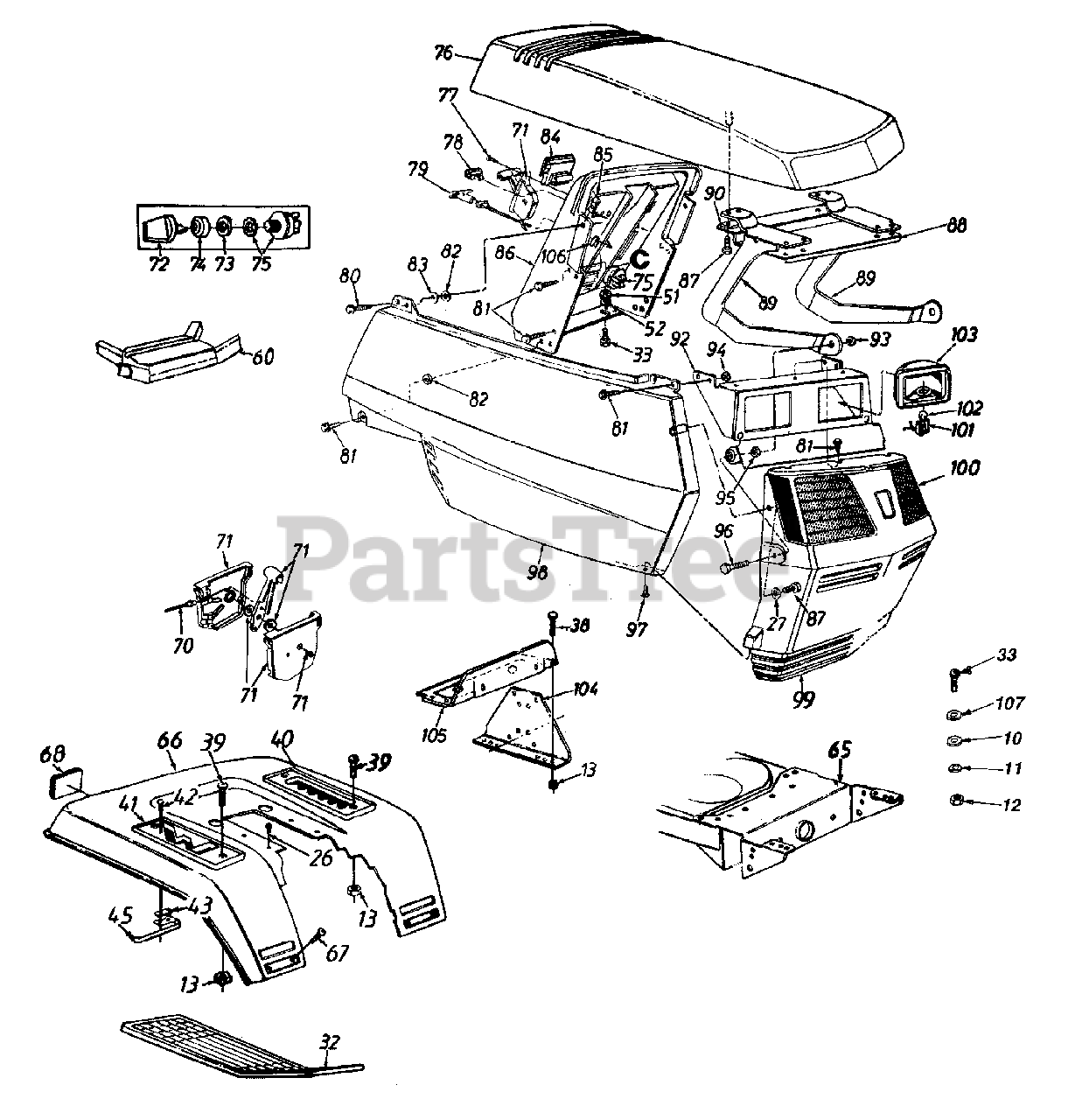

Hood (Style 4) Parts Diagram

  • Title

10

MTD 726-0201

Speed Nut

$6.99

$

In Stock, only 2 left!

0

11

MTD 736-0119

L-Wash. 5/16" I.D.
(Superseded to 936-0119)

$4.99

$

In Stock, Qty 20+

0

12

MTD 712-3010

Hex Nut 5/16-18 Thd.

$4.49

$

In Stock, Qty 20+

0

13

MTD 712-0271

Hex Sems Nut 1/4-20 Thd.

$4.49

$

In Stock, Qty 20+

0

26

MTD 710-0726

Hex Wash. Hd. AB-Tap Scr.5/16 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

27

MTD 736-0142

Fl-Wash. .218" I.D. x .5" O.D.

$4.99

$

In Stock, Qty 20+

0

32

MTD 731-0909

Rubber Foot Pad-L.H.

Note: (Optional)

$

$

Not available

MTD 731-0910

Rubber Foot Pad-R.H.
(Superseded to 735-0689A)

Note: (Optional)

$

$

Not available

33

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

38

MTD 710-0751

Hex Bolt 1/4-20 x .62" Lg.

$3.99

$

In Stock, Qty 20+

0

39

MTD 710-0924

Truss Mach. Scr. 1/4-20 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

40

MTD 731-1746

7-Speed Index Brkt.
(Superseded to 931-1746)

$

$

Not available

41

MTD 731-1147

Forward/Reverse Index Brkt.
(Superseded to 931-1147)

$28.99

$

Usually ships in 3-6 days

0

42

MTD 710-0227

Hex Wash. Hd. AB-Tap Scr. #8 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

43

MTD 726-0320

Insulator Nut Plate
(Superseded to 926-0320)

$6.99

$

In Stock, Qty 11

0

45

MTD 725-1643

Reverse Safety Switch

$10.99

$

In Stock, only 1 left!

0

51

MTD 712-0265

Hex Sems Nut 5/16-18 Thd.

$3.99

$

Usually ships in 3-6 days

0

52

MTD 736-0275

Fl-Wash. .343" I.D. x .687"

$6.99

$

Usually ships in 3-6 days

0

60

MTD 731-0955

Steering Wheel Insert
(Superseded to 931-0955)

$

$

Not available

65

MTD 783-0041A

Pivot Bar Brkt.
(Superseded to 783-0041C)

Variations

MTD 783-0041A-0483

Pivot Bar Bracket - CHARCOAL GRAY (0483)

$89.99

$

Usually ships in 3-6 days

0

MTD 783-0041A-0637

BRACKET-PIVOT BAR - POWDER BLACK (0637)

$

$

Not available

MTD 783-0041A-0665

No Longer Available - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0041A-0638

No Longer Available BRACKET-PI - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0041A-0648

No Longer Available BRACKET-PI - TECH GRAY (0648)

$

$

Not available

MTD 783-0041A-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

$77.99

$

Usually ships in 3-6 days

0

66

MTD 783-0370

Fender

Variations

MTD 783-0370-0483

No Longer Available FENDER-4WS - CHARCOAL GRAY (0483)

$

$

Not available

MTD 783-0370-0629

No Longer Available FENDER-4WS - SILVER FLAKE (0629)

$

$

Not available

MTD 783-0370-0638

No Longer Available FENDER-4WS - MTD/TROY-BILT RED (0638)

$

$

Not available

MTD 783-0370-0648

No Longer Available FENDER-4WS - TECH GRAY (0648)

$

$

Not available

MTD 783-0370-0662

No Longer Available FENDER-4WS - OYSTER GRAY (0662)

$

$

Not available

MTD 783-0370-0665

No Longer Available FENDER-4WS - YARDMAN GREEN (0665)

$

$

Not available

MTD 783-0370-0667

No Longer Available FENDER-4WS - MIDNIGHT BLUE (0667)

$

$

Not available

MTD 783-0370-0674

No Longer Available FENDER-4WS - YARDMAN YELLOW (0674)

$

$

Not available

$

$

67

MTD 710-0167

Carriage Bolt 1/4-20 x .62" Lg.
(Superseded to 710-05177)

$4.99

$

In Stock, Qty 20+

0

68

MTD 730-3000

Reflector
(Superseded to 930-3000)

Note: (Optional)

$17.99

$

In Stock, only 2 left!

0

70

MTD 746-0636

Throttle Wire 28" Lg.
(Superseded to 946-0634)

$11.99

$

In Stock, only 1 left!

0

71

MTD 831-0823A

Throttle Control Box Ass'y.

$32.99

$

In Stock, Qty 20+

0

72

MTD 725-1341B

Ignition Key

$10.99

$

In Stock, only 1 left!

0

73

MTD 725-1346

Ignition Switch Nut
(Superseded to 925-1346)

$

$

Not available

74

MTD 725-1347

Ignition Switch Cap

$4.99

$

In Stock, only 1 left!

0

75

MTD 725-1396

Ignition Switch
(Superseded to 925-1396A)

$43.99

$

In Stock, Qty 5

0

76

MTD 731-1433

Hood (Yellow)
(Superseded to 931-1433)

$

$

Not available

MTD 731-1534

Hood (Red)

$

$

Not available

77

MTD 710-0779A

Truss Mach. AB-Tap Scr. #10 x.5" Lg.

$4.49

$

In Stock, Qty 12

0

78

MTD 725-0634

Light Switch
(Superseded to 925-0634)

$17.99

$

In Stock, only 4 left!

0

79

MTD 746-3021

Choke Control

$26.99

$

Usually ships in 3-6 days

0

80

MTD 710-0642

Hex Wash. Hd. Tap Scr.1/4 x .75" Lg.

$4.49

$

In Stock, Qty 20+

0

81

MTD 710-0599

Hex Tap Scr. 1/4-20 x .5" Lg.

$4.49

$

In Stock, Qty 20+

0

82

MTD 726-0233

Push Nut Fastener

$4.49

$

In Stock, Qty 20+

0

83

MTD 736-0176

Fl-Wash. .27" I.D. x .948"

$4.99

$

In Stock, only 4 left!

0

84

MTD 725-0925

Ammeter
(Superseded to 925-0925)

$31.99

$

In Stock, Qty 6

0

85

MTD 712-0185

Speed Nut 1/4-20 Thd.

$

$

Not available

86

MTD 731-0961A

Dash Panel

$

$

Not available

87

MTD 710-1005

Hex Wash. Hd. B-Tap Scr.1/4 x .62" Lg.
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0

88

MTD 783-0121

Hood Reinforcement

Variations

MTD 783-0121-0637

No Longer Available REINFORCEM - POWDER BLACK (0637)

$

$

Not available

$

$

89

MTD 783-0123

Hood Hinge

Variations

MTD 783-0123-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

90

MTD 17762

Hood Reinforcement Spacer

Variations

MTD 17762-0637

No Longer Available SPACER-HOO - POWDER BLACK (0637)

$

$

Not available

$

$

92

MTD 17223

Light Bracket

Variations

MTD 17223-0637

No Longer Available BRACKET-LI - POWDER BLACK (0637)

$

$

Not available

$

$

93

MTD 712-0158

Hex L-Nut 5/16-18 Thd.
(Superseded to 912-0158)

$3.49

$

In Stock, Qty 18

0

94

MTD 712-0107

Hex L-Nut 1/4-20 Thd.
(Superseded to 912-0107)

$4.99

$

In Stock, only 1 left!

0

95

MTD 712-3007

Hex Jam Nut 5/16-18 Thd.

$6.99

$

In Stock, only 3 left!

0

96

MTD 710-3038

Hex Bolt 5/16-18 x 7/8" Lg.

$4.99

$

In Stock, only 3 left!

0

97

MTD 710-0351

Truss Mach. B-Tap Scr.#10 x .5" Lg.

$4.49

$

Usually ships in 3-6 days

0

98

MTD 731-1434

Side Cover-R.H. (Yellow)

$

$

Not available

MTD 731-1435

Side Cover-L.H. (Yellow)

Note: (Not Shown)

$

$

Not available

99

MTD 731-1442A

Grille (Yellow)

$

$

Not available

MTD 731-1537

Grille (Red)

$

$

Not available

100

MTD 731-0949

Lens-L.H.
(Superseded to 931-0949)

$

$

Not available

MTD 731-0948

Lens-R.H.
(Superseded to 931-0948)

$36.99

$

In Stock, only 1 left!

0

101

MTD 725-1650

Twist Lock-Lamp Socket
(Superseded to 925-1650)

$

$

Not available

102

MTD 725-0963

Lamp
(Superseded to 925-0963)

$7.49

$

In Stock, only 1 left!

0

103

MTD 731-0705

Headlight Housing
(Superseded to 931-0705)

$

$

Not available

104

MTD 17300D

Dash Support Brkt.

Variations

MTD 17300D-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

105

MTD 17633A

Support Brkt.

Variations

MTD 17633A-0637

No Longer Available - POWDER BLACK (0637)

$

$

Not available

$

$

106

MTD 17782

Choke Retainer

$

$

Not available

107

MTD 736-3078

Fl-Wash. .34" I.D. x 1" O.D.

$4.49

$

In Stock, Qty 20+

0
