13BX60RG744 (LX 425) - Toro Lawn Tractor (SN: 1C307H10418 & Above) (2007) DECK LIFT ARM ASSEMBLY Parts Diagram

Lawn Tractor

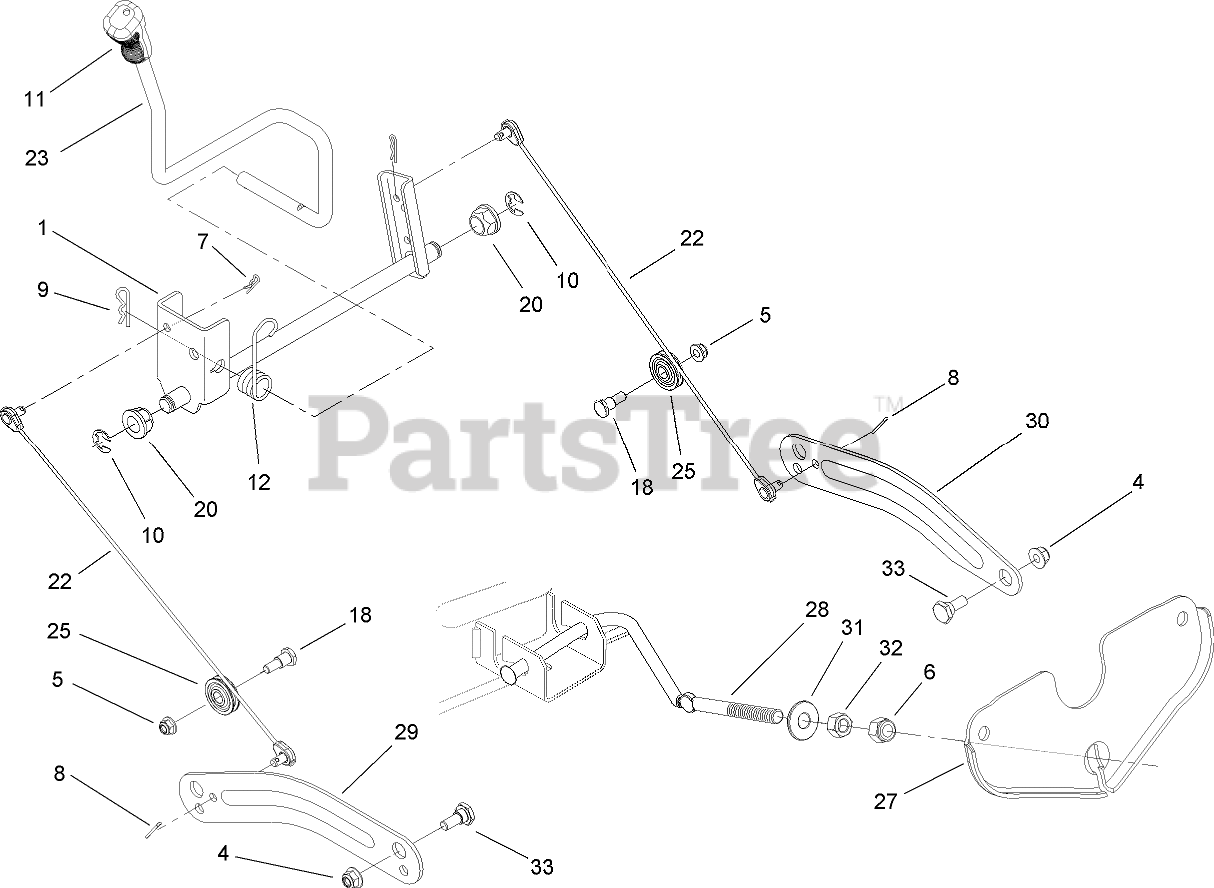

DECK LIFT ARM ASSEMBLY Parts Diagram

  • Title

1

Toro 112-5969

LIFT SHAFT ASM

$78.99

$

Usually ships in 3-6 days

0

4

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

5

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

6

Toro 112-0476

NUT-LOCK, HEX (NYLON)

$7.49

$

In Stock, only 2 left!

0

7

Toro 112-0459

PIN-COTTER

$

$

Not available

8

Toro 112-0568

PIN-COTTER

$7.99

$

In Stock, only 2 left!

0

9

Toro 112-0394

PIN-HAIR

$

$

Not available

10

Toro 112-0586

RING-E

$7.99

$

Usually ships in 3-6 days

0

11

Toro 112-0585

GRIP-HANDLE

$

$

Not available

12

Toro 112-0477

SPRING-TORSION

$

$

Not available

18

Toro 112-0443

BOLT-SHOULDER

$

$

Not available

20

Toro 112-0347

BEARING-FLANGE

$16.99

$

Usually ships in 3-6 days

0

22

Toro 112-0374

CABLE-LIFT

$41.99

$

In Stock, only 1 left!

0

23

Toro 112-5970

HANDLE-LIFT

$

$

Not available

25

Toro 112-0502

PULLEY-ROLLER

$12.99

$

Usually ships in 3-6 days

0

27

Toro 112-0704

BRACKET-HANGER, DECK

$

$

Not available

28

Toro 112-0607

ROD-DECK, FRONT ADJUSTMENT

$51.99

$

In Stock, only 3 left!

0

29

Toro 112-0690

ARM-LIFT, DECK (RH)
(Superseded to 119-8471)

$43.99

$

Usually ships in 3-6 days

0

30

Toro 112-0719

ARM-LIFT, DECK (LH)
(Superseded to 119-8472)

$

$

Not available

31

Toro 112-0641

CUP-PIVOT, LIFT

$9.49

$

In Stock, only 2 left!

0

32

Toro 112-0458

NUT-HEX

$

$

Not available

33

Toro 112-0669

BOLT-SHOULDER

$

$

Not available
