13BX60RG744 (LX 425) - Toro Lawn Tractor (SN: 1C307H10418 & Above) (2007) CRANKCASE ASSEMBLY Parts Diagram

Lawn Tractor

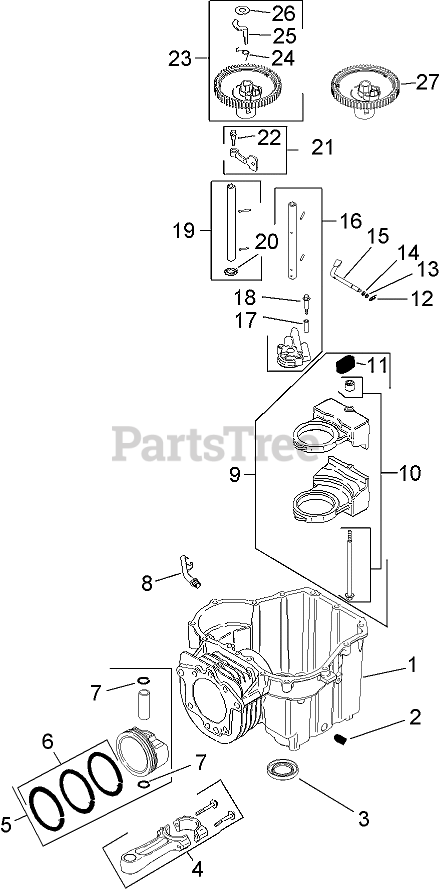

CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Crankcase (USE: Short BLock 20 522 02)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

1

Crankcase (USE: Short BLock 20 522 02)

Note: Not serviced separately

$

$

Not available

2

Kohler 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, only 3 left!

0

3

Kohler 20 032 01-S

Seal-Oil
(Superseded to 20 032 08-S)

Note: Obtain parts from www.kohlerplus.com

$9.49

$

In Stock, Qty 9

0

4

Kohler 20 067 04-S

Connecting Rod ASM
(Superseded to 20 067 06-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

5

2087405-S

Piston w/Ring Set (Includes 6-7)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

6

2010802-S

Ring Set (89 mm)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

7

Kohler 20 018 04-S

Retainer-Pin, Piston

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

8

Kohler 20 123 02-S

Tube-Back, Drain

Note: Obtain parts from www.kohlerplus.com

$4.99

$

In Stock, Qty 9

0

9

Kohler 20 755 04-S

Balance Weight Kit (Includes 10-11)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

10

Kohler 20 086 16-S

Screw and Guide Pin Kit
(Superseded to 20 380 16-S)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

11

Kohler 20 423 02-S

Shoe-Guide

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

12

Kohler 12 154 05-S

Clip-Pin, Hitch

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

13

Kohler M-631015-S

WASHER-FLAT (6mm)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 7

0

14

Kohler X-25-102-S

WASHER-FLAT (1/4)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 5

0

15

Kohler 20 144 02-S

Shaft-Cross, Governor

Note: Obtain parts from www.kohlerplus.com

$14.99

$

In Stock, only 1 left!

0

16

Kohler 20 393 02-S

Oil Pump ASM (Includes 17-18)

Note: Obtain parts from www.kohlerplus.com

$41.99

$

In Stock, only 1 left!

0

17

Kohler 20 112 02-S

Spacer-Screw, Oil Pump
(Superseded to 20 086 12-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

18

Kohler 20 086 13-S

Screw-Pump, Oil
(Superseded to 20 086 12-S)

Note: Obtain parts from www.kohlerplus.com

$2.49

$

Usually ships in 2-5 days

0

19

Kohler 20 144 06-S

Shaft-Cam, Center - Exhaust (Includes 20)
(Superseded to 20 144 11-S)

Note: Obtain parts from www.kohlerplus.com

$20.99

$

In Stock, only 1 left!

0

20

Kohler 20 468 01-S

Washer-Thrust
(Superseded to 20 468 08-S)

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

21

Kohler 20 090 01-S

Cam Lever ASM (Includes 22)
(Superseded to 20 090 12-S)

Note: Obtain parts from www.kohlerplus.com

$5.49

$

In Stock, only 2 left!

0

22

Kohler 20 086 06-S

Bolt-Shoulder (M6x1x26)

Note: Obtain parts from www.kohlerplus.com

$3.99

$

In Stock, Qty 11

0

23

Kohler 20 010 04-S

Cam Gear ASM - Intake (Includes 24-26)

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

24

Kohler 20 089 06-S

Spring-A C R

Note: Obtain parts from www.kohlerplus.com

$2.99

$

In Stock, only 1 left!

0

25

Kohler 20 044 16-S

Weight-A C R
(Superseded to 20 044 32-S)

Note: Obtain parts from www.kohlerplus.com

$13.99

$

In Stock, only 1 left!

0

26

Kohler 20 468 03-S

Washer-Thrust, A C R

Note: Obtain parts from www.kohlerplus.com

$2.49

$

In Stock, Qty 10

0

27

Kohler 20 010 04-S

Cam Gear ASM

Note: Obtain parts from www.kohlerplus.com

$

$

Not available
