13BX60RG744 (LX 425) - Toro Lawn Tractor (SN: 1C307H10418 & Above) (2007) BRAKE AND TRACTION PEDAL ASSEMBLY Parts Diagram

Lawn Tractor

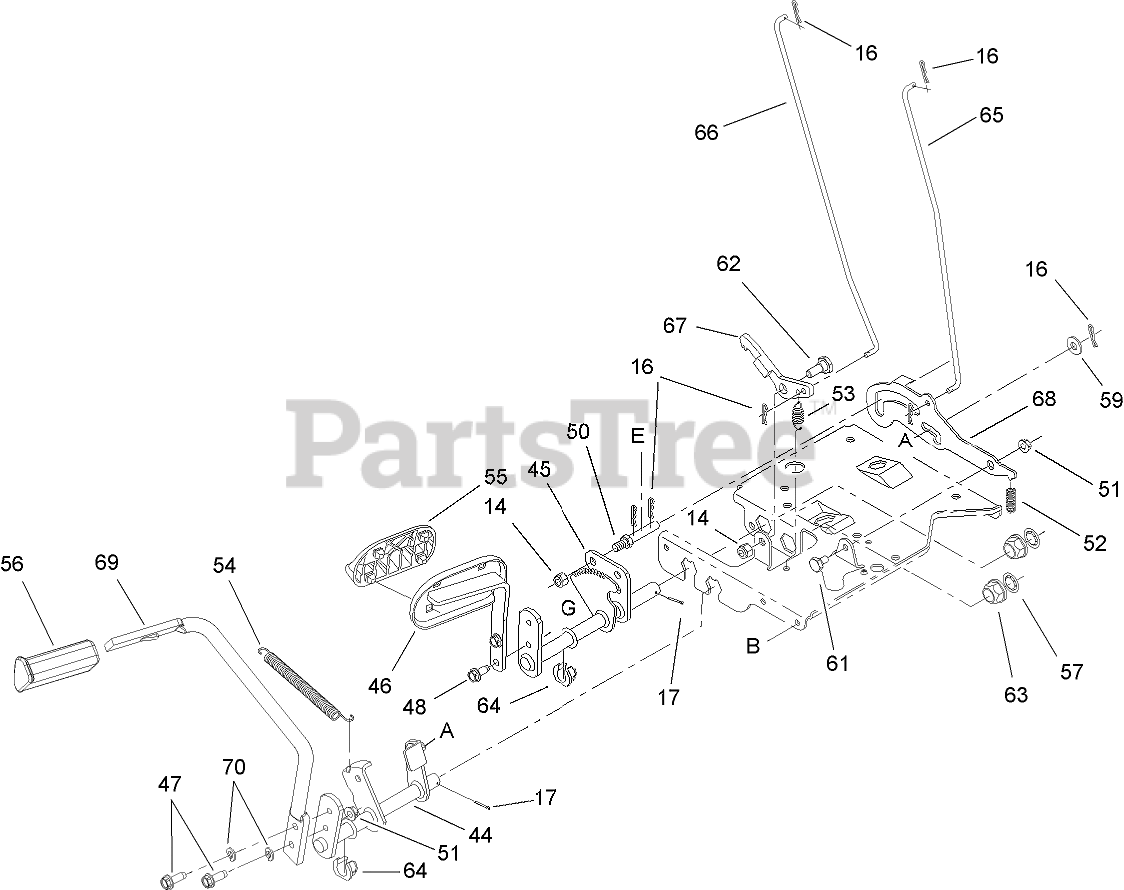

BRAKE AND TRACTION PEDAL ASSEMBLY Parts Diagram

  • Title

14

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 5

0

16

Toro 112-0459

PIN-COTTER

$

$

Not available

17

Toro 112-0568

PIN-COTTER

$7.99

$

In Stock, only 2 left!

0

44

Toro 112-0648

BRAKE CONTROL ASM

$

$

Not available

45

Toro 112-5998

SPEED CONTROL ASM

$58.99

$

Usually ships in 3-6 days

0

46

Toro 112-0680

PEDAL ASM

$

$

Not available

47

Toro 112-5999

SCREW-HWHTF
(Superseded to 112-0395)

$14.99

$

In Stock, Qty 19

0

48

Toro 112-0395

SCREW-HWH

$14.99

$

In Stock, Qty 19

0

50

Toro 112-0599

PIN

$

$

Not available

51

Toro 112-6000

NUT-LOCK, FLANGE
(Superseded to 112-0511)

$7.49

$

In Stock, only 3 left!

0

52

Toro 112-0506

SPRING

$

$

Not available

53

Toro 112-0510

SPRING-EXTENSION

$11.99

$

Usually ships in 3-6 days

0

54

Toro 112-0348

SPRING-EXTENSION

$16.99

$

In Stock, only 1 left!

0

55

Toro 112-0543

PAD-PEDAL

$

$

Not available

56

Toro 112-6001

PAD-BRAKE

$

$

Not available

57

Toro 112-0339

WASHER-FLAT

$6.99

$

Usually ships in 3-6 days

0

59

Toro 112-6002

WASHER-FLAT
(Superseded to 112-0541)

$7.49

$

Usually ships in 3-6 days

0

61

Toro 112-5817

BOLT-SHOULDER

$

$

Not available

62

Toro 112-0442

BOLT-SHOULDER

$

$

Not available

63

Toro 112-0347

BEARING-FLANGE

$16.99

$

Usually ships in 3-6 days

0

64

Toro 112-0387

BEARING-FLANGE, HEX (SPLIT)

$12.99

$

In Stock, only 1 left!

0

65

Toro 112-6003

ROD-BRAKE, LOCK CONTROL

$27.99

$

Usually ships in 3-6 days

0

66

Toro 112-0662

ROD-CONTROL, CRUISE

$

$

Not available

67

Toro 112-6004

LATCH-CRUISE

$

$

Not available

68

Toro 112-5816

BRACKET-LOCK OUT

$38.99

$

Usually ships in 3-6 days

0

69

Toro 112-6005

PEDAL-BRAKE

$56.99

$

Usually ships in 3-6 days

0

70

Toro 112-0366

WASHER-LOCK

$

$

Not available
