13BX60RG744 (LX 425) - Toro Lawn Tractor (SN: 1A087H10172 - 1C307H10417) (2007) TRANSMISSION, BELT AND PULLEY ASSEMBLY Parts Diagram

Lawn Tractor

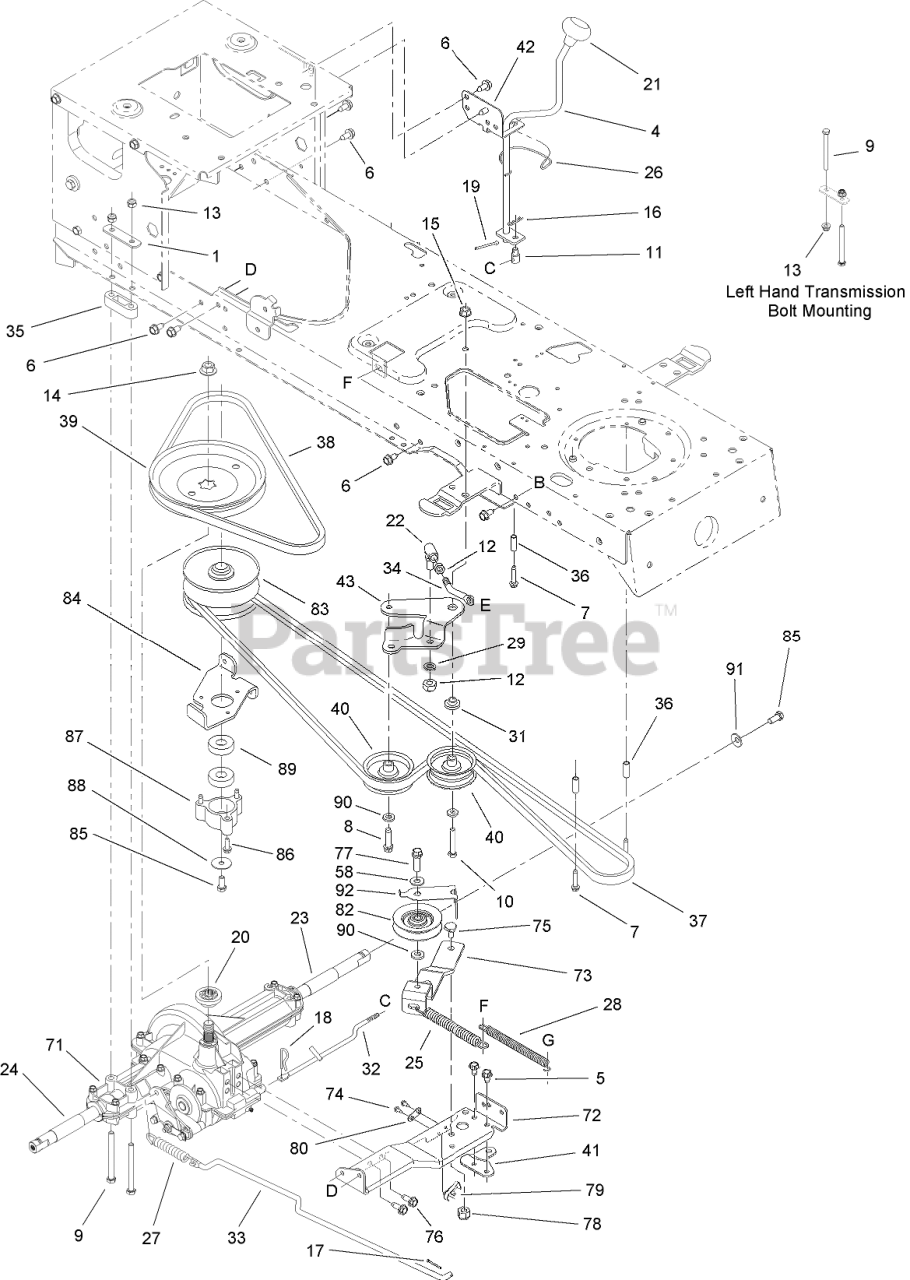

TRANSMISSION, BELT AND PULLEY ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0628

BRACKET-MOUNTING, TRANSMISSION

$

$

Not available

4

Toro 112-0627

SHIFT LEVER ASM

$

$

Not available

5

Toro 112-0676

SCREW-TAP

$

$

Not available

6

Toro 112-5975

SCREW-HH, TAP
(Superseded to 112-0556)

$7.49

$

Usually ships in 3-6 days

0

7

Toro 112-0603

SCREW-HH

$11.99

$

Usually ships in 3-6 days

0

8

Toro 112-0469

SCREW-TAP

$

$

Not available

9

Toro 112-0667

SCREW-HH

$

$

Not available

10

Toro 112-0421

SCREW-HH

$6.99

$

In Stock, only 1 left!

0

11

Toro 112-0592

FERRULE-ADJUSTABLE

$25.99

$

In Stock, only 1 left!

0

12

Toro 112-0343

NUT-HEX

$

$

Not available

13

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

14

Toro 112-0451

NUT-FLANGE

$16.99

$

Usually ships in 3-6 days

0

15

Toro 112-0385

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 7

0

16

Toro 112-0459

PIN-COTTER

$

$

Not available

17

Toro 112-0568

PIN-COTTER

$7.99

$

In Stock, only 2 left!

0

18

Toro 112-0639

PIN-HAIR

$

$

Not available

19

Toro 112-0412

PIN-COTTER

$7.49

$

Usually ships in 3-6 days

0

20

Toro 112-0450

HUB-PULLEY

$

$

Not available

21

Toro 112-0514

KNOB-SHIFT

$18.99

$

Usually ships in 3-6 days

0

22

Toro 112-0306

BALL JOINT ASM

$

$

Not available

23

Toro 112-0670

SLEEVE

$

$

Not available

24

Toro 112-0683

SLEEVE

$8.99

$

Usually ships in 3-6 days

0

25

Toro 112-5991

SPRING-EXTENSION

$20.99

$

In Stock, only 2 left!

0

26

Toro 112-0357

CLIP-SPRING, SHIFTER

$12.99

$

In Stock, only 3 left!

0

27

Toro 112-0350

SPRING-EXTENSION

$23.99

$

In Stock, only 1 left!

0

28

Toro 112-0348

SPRING-EXTENSION

$16.99

$

In Stock, only 3 left!

0

29

Toro 112-0415

WASHER-LOCK

$

$

Not available

31

Toro 112-0345

SPACER-SHOULDER

$16.99

$

In Stock, only 1 left!

0

32

Toro 112-5992

ROD-SHIFT

$38.99

$

In Stock, only 2 left!

0

33

Toro 112-0655

ROD-BRAKE

$

$

Not available

34

Toro 112-0538

ROD-ADJUSTMENT, IDLER

$

$

Not available

35

Toro 112-0673

SPACER-TRANSAXLE

$

$

Not available

36

Toro 112-0644

SPACER

$

$

Not available

37

Toro 112-0301

BELT-DRIVE, VARIABLE SPEED

$50.99

$

In Stock, Qty 20+

0

38

Toro 112-0305

BELT-DRIVE, TRANSMISSION

$30.99

$

In Stock, Qty 12

0

39

Toro 112-0379

PULLEY-V (W/HUB)

$64.99

$

In Stock, only 3 left!

0

40

Toro 112-3687

PULLEY-IDLER, FLAT

$41.99

$

In Stock, Qty 8

0

41

Toro 112-5813

BRACKET-SHIFT

$11.99

$

Usually ships in 3-6 days

0

42

Toro 112-0638

BRACKET-SHIFT

$

$

Not available

43

Toro 112-0525

BRACKET-IDLER, CENTER DOUBLE

$59.99

$

In Stock, only 1 left!

0

58

Toro 112-0541

Washer-Flat

$7.49

$

Usually ships in 3-6 days

0

71

Toro 112-0368

SINGLE SPEED TRANSMISSION ASM
(Superseded to 112-6083)

$1219.99

$

Usually ships in 3-6 days

0

72

Toro 112-0552

BRACKET-TORQUE
(Superseded to 112-6134)

$

$

Not available

73

Toro 112-0434

IDLER BRACKET KIT

$

$

Not available

74

Toro 112-0626

SCREW-HWHTF

$7.49

$

In Stock, only 3 left!

0

75

Toro 112-5993

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

76

Toro 112-0556

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

77

Toro 112-0469

SCREW-TAP

$

$

Not available

78

Toro 112-5994

NUT-LOCK, HEX
(Superseded to 112-0668)

$7.49

$

In Stock, only 3 left!

0

79

Toro 112-0602

SWITCH-SPRING, SHORT

$14.99

$

Usually ships in 3-6 days

0

80

Toro 112-0625

PLATE-INSULATOR

$8.49

$

Usually ships in 3-6 days

0

82

Toro 112-0892

PULLEY-IDLER, V-TYPE
(Superseded to 112-6133)

$45.99

$

In Stock, Qty 7

0

83

Toro 112-0364

VARIABLE SPEED PULLEY ASM
(Superseded to 119-8470)

$192.99

$

In Stock, only 4 left!

0

84

Toro 112-5995

BRACKET-PULLEY

$

$

Not available

85

Toro 112-0551

SCREW-HH

$7.49

$

In Stock, Qty 6

0

86

Toro 112-0587

SCREW-TAP

$7.49

$

In Stock, Qty 10

0

87

Toro 112-5996

CUP-BEARING

$

$

Not available

88

Toro 112-0500

WASHER-FLAT

$7.49

$

In Stock, only 4 left!

0

89

Toro 112-0423

BEARING-BALL

$49.99

$

In Stock, only 4 left!

0

90

Toro 112-0544

WASHER-FLAT

$7.49

$

In Stock, Qty 6

0

91

Toro 112-0435

WASHER-BELL

$

$

Not available

92

Toro 112-5883

GUIDE-BELT, TRACTION

$18.99

$

In Stock, only 2 left!

0
