13BX60RG744 (LX 425) - Toro Lawn Tractor (SN: 1A087H10172 - 1C307H10417) (2007) FRAME AND BATTERY ASSEMBLY Parts Diagram

Lawn Tractor

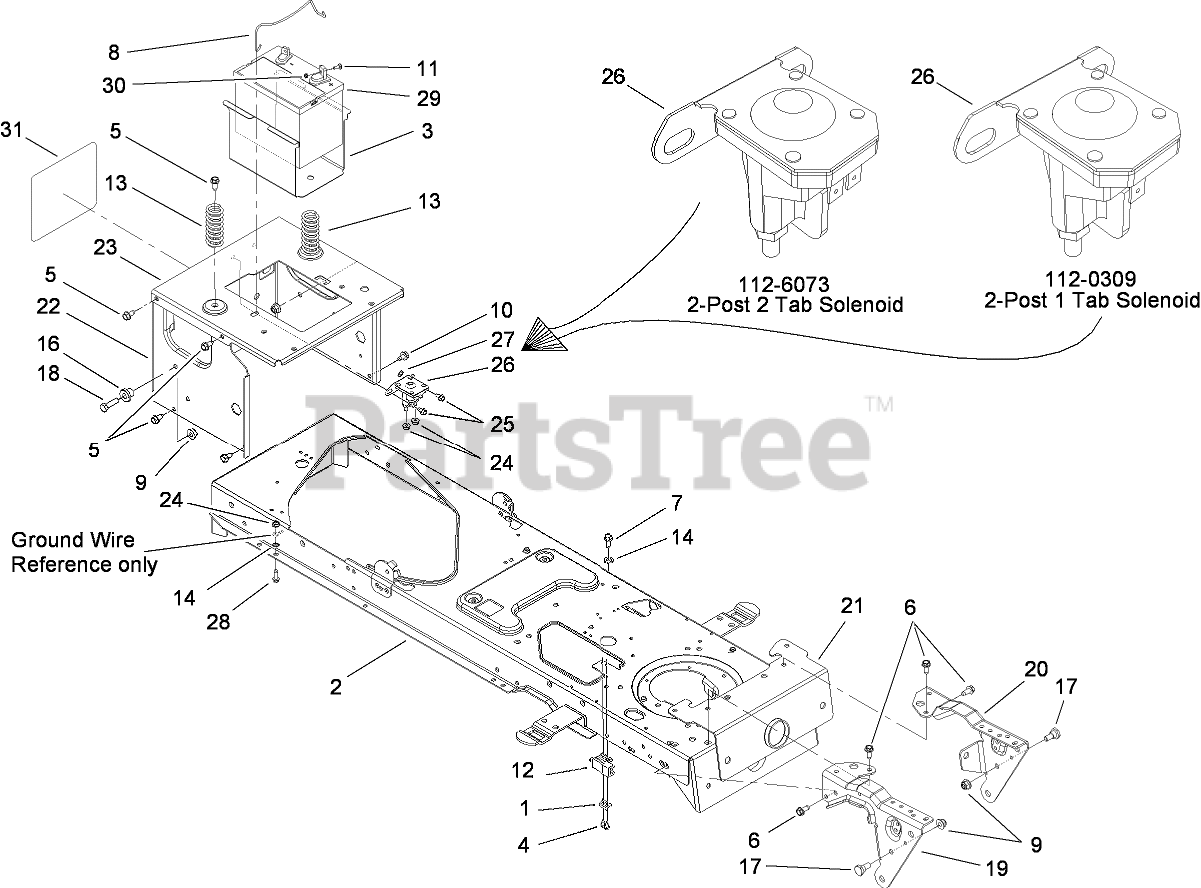

FRAME AND BATTERY ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0671

PLATE-SWITCH

$

$

Not available

2

Toro 112-5974

LOWER FRAME ASM

$

$

Not available

3

Toro 112-0570

TRAY-BATTERY

$

$

Not available

4

Toro 112-0651

SCREW-TAP

$

$

Not available

5

Toro 112-5975

SCREW-HH, TAP
(Superseded to 112-0556)

$7.49

$

Usually ships in 3-6 days

0

6

Toro 112-0395

SCREW-HWH

$14.99

$

In Stock, Qty 19

0

7

Toro 112-0659

SCREW-HWH

$7.49

$

Usually ships in 3-6 days

0

8

Toro 112-0581

ROD-HOLDDOWN, BATTERY

$10.99

$

In Stock, only 2 left!

0

9

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

10

Toro 112-0676

SCREW-TAP

$

$

Not available

11

Toro 112-5976

SCREW-HHF
(Superseded to 119-3994)

$

$

Not available

12

Toro 112-0455

SWITCH-INTERLOCK

$45.99

$

Usually ships in 3-6 days

0

13

Toro 112-0501

SPRING-COMPRESSION

$16.99

$

Usually ships in 3-6 days

0

14

Toro 112-0703

WASHER-LOCK, EXTERNAL

$

$

Not available

16

Toro 112-0661

SPACER-SHOULDER

$

$

Not available

17

Toro 112-0565

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

0

18

Toro 112-0557

SCREW-HH

$7.49

$

In Stock, only 1 left!

0

19

Toro 112-0620

BRACKET-PIVOT, SUPPORT

$

$

Not available

20

Toro 112-0610

BRACKET-PIVOT, SUPPORT

$89.99

$

Usually ships in 3-6 days

0

21

Toro 112-5977

BRACKET-PIVOT, BAR

$

$

Not available

22

Toro 112-0728

FRAME-UPPER
(Superseded to 112-6107)

$

$

Not available

23

Toro 112-0647

BRACKET-FRAME, SEAT

$

$

Not available

24

Toro 112-0636

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 1 left!

0

25

Toro 112-0524

SCREW-HWHTF

$7.49

$

In Stock, Qty 5

0

26

Toro 112-0309

SOLENOID-12V, 2 Post 1 Tab

$36.99

$

In Stock, only 1 left!

0

26

Toro 112-6073

SOLENOID-12V, 2 POST 2 Tab

$69.99

$

In Stock, only 1 left!

0

27

Toro 112-0703

WASHER-LOCK, EXTERNAL

$

$

Not available

28

Toro 112-0587

SCREW-TAP

$7.49

$

In Stock, Qty 10

0

29

Toro 112-0425

BATTERY-245, CCA (DRY FLAT TOP)

$157.99

$

Usually ships in 3-6 days

0

30

Toro 112-5978

NUT-SEMS
(Superseded to 112-0546)

$

$

Not available

31

Toro 112-1284

DECAL-TORO

$

$

Not available
