13BX60RG744 (LX 425) - Toro Lawn Tractor (SN: 1A087H10172 - 1C307H10417) (2007) DECK ASSEMBLY Parts Diagram

Lawn Tractor

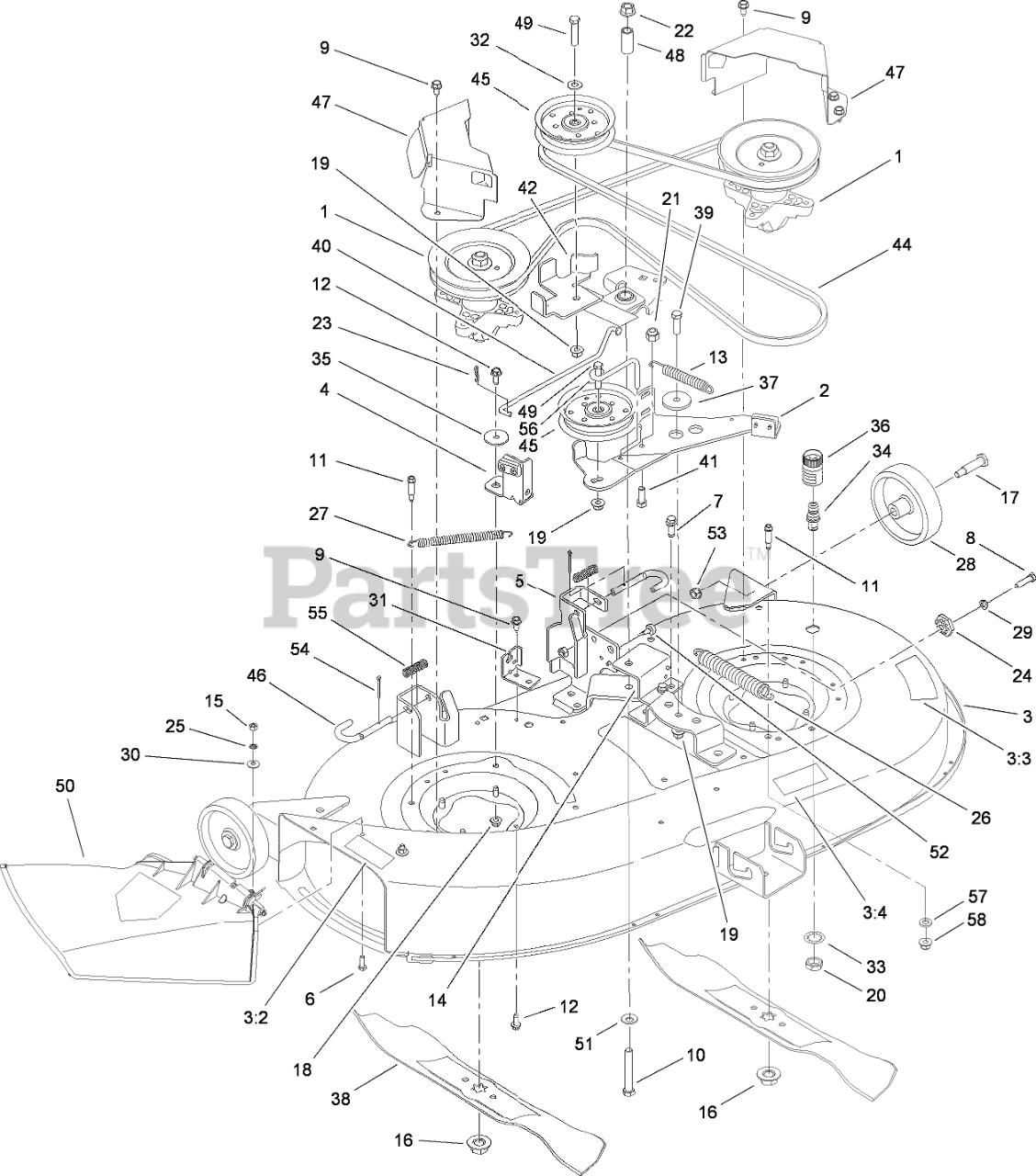

DECK ASSEMBLY Parts Diagram

  • Title
1

Toro 112-0460

SPINDLE ASM

$149.99

$

In Stock, Qty 6

0

2

Toro 112-0606

DECK BRAKE ASM

$

$

Not available

3

Toro 112-5857

DECK AND DECAL ASM

$

$

Not available

3:2

Toro 112-1267

DECAL-DANGER

$

$

Not available

3:3

Toro 112-1265

DECAL-DANGER

$

$

Not available

3:4

Toro 112-1270

DECAL-ROUTING, BELT

$

$

Not available

4

Toro 112-3742

BRAKE ASM

$90.99

$

Usually ships in 3-6 days

0

5

Toro 112-0413

LH HANGER BRACKET ASM

$81.99

$

In Stock, only 3 left!

0

6

Toro 112-0499

SCREW-HH

$

$

Not available

7

Toro 112-0663

SCREW-TAP

$

$

Not available

8

Toro 112-0373

SCREW-HH

$7.49

$

In Stock, only 4 left!

0

9

Toro 112-0472

SCREW-HH, TAP

$7.49

$

In Stock, only 1 left!

0

10

Toro 112-3745

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

11

Toro 112-5918

BOLT-SHOULDER

$11.99

$

Usually ships in 3-6 days

0

12

Toro 112-0395

SCREW-HWH

$14.99

$

In Stock, Qty 19

0

13

Toro 112-3746

SPRING-EXTENSION

$18.99

$

In Stock, Qty 5

0

14

Toro 112-5801

BRACKET-SUPPORT, PIVOT

$

$

Not available

15

Toro 112-0522

NUT-HEX

$

$

Not available

16

Toro 112-0330

NUT-LOCK, FLANGE

$11.99

$

In Stock, Qty 9

0

17

Toro 112-0334

BOLT-SHOULDER

$15.99

$

In Stock, Qty 11

0

18

Toro 112-0650

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

19

Toro 112-0668

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 3 left!

0

20

Toro 112-0351

NUT-HEX

$10.99

$

Usually ships in 3-6 days

0

21

Toro 112-5821

NUT-LOCK, HEX

$

$

Not available

22

Toro 112-0859

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 2 left!

0

23

Toro 112-0459

PIN-COTTER

$

$

Not available

24

Toro 112-0327

GEAR-ADJUSTMENT, DECK

$25.99

$

In Stock, only 1 left!

0

25

Toro 112-0623

RETAINER-BOLT

$

$

Not available

26

Toro 112-0349

SPRING

$36.99

$

In Stock, only 1 left!

0

27

Toro 112-0528

SPRING-EXTENSION

$27.99

$

In Stock, only 1 left!

0

28

Toro 112-0337

WHEEL-DECK, REAR

$18.99

$

In Stock, only 2 left!

0

29

Toro 112-0366

WASHER-LOCK

$

$

Not available

30

Toro 112-0485

WASHER-SPRING

$7.49

$

In Stock, only 1 left!

0

31

Toro 112-0718

BRACKET-CABLE, DECK
(Superseded to 119-8462)

$

$

Not available

32

Toro 112-0572

WASHER-FLAT

$

$

Not available

33

Toro 112-0922

WASHER-LOCK

$

$

Not available

34

Toro 112-0879

NOZZLE-WATER, DECK

$47.99

$

Usually ships in 3-6 days

0

35

Toro 112-3747

SPACER-SHOULDER

$7.99

$

Usually ships in 3-6 days

0

36

Toro 112-0916

ADAPTER-NOZZLE, WATER

$46.99

$

Usually ships in 3-6 days

0

37

Toro 112-0584

SPACER-SHOULDER

$43.99

$

In Stock, only 2 left!

0

38

$31.99

$

In Stock, Qty 20+

0

39

Toro 112-0557

SCREW-HH

$7.49

$

In Stock, only 1 left!

0

40

Toro 112-3748

ROD-BRAKE

$33.99

$

In Stock, only 1 left!

0

41

Toro 112-0855

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

42

Toro 112-3743

IDLER ASM
(Superseded to 112-6064)

$91.99

$

Usually ships in 3-6 days

0

44

Toro 112-5800

BELT-V TYPE

$84.99

$

In Stock, only 4 left!

0

45

Toro 112-0314

PULLEY-IDLER

$63.99

$

In Stock, only 4 left!

0

46

Toro 112-0436

PIN-HANDLE, DECK RELEASE

$23.99

$

In Stock, only 2 left!

0

47

Toro 112-0630

COVER-BELT

$42.99

$

In Stock, only 1 left!

0

48

Toro 112-3749

SPACER

$19.99

$

Usually ships in 3-6 days

0

49

Toro 112-0513

SCREW-HH

$7.49

$

In Stock, Qty 12

0

50

Toro 112-0353

DISCHARGE CHUTE ASM

$182.99

$

In Stock, only 1 left!

0

51

Toro 112-0481

WASHER-BELL

$6.99

$

Usually ships in 3-6 days

0

52

Toro 112-1016

BUMPER

$11.99

$

Usually ships in 3-6 days

0

53

Toro 112-0385

NUT-LOCK, FLANGE

$7.49

$

In Stock, Qty 7

0

54

Toro 112-0412

PIN-COTTER

$7.49

$

Usually ships in 3-6 days

0

55

Toro 112-0406

SPRING-COMPRESSION

$12.99

$

In Stock, only 1 left!

0

56

Toro 112-5879

ROD-KEEPER, BELT

$10.99

$

In Stock, only 1 left!

0

57

Toro 112-5919

WASHER-FLAT

$9.99

$

Usually ships in 3-6 days

0

58

Toro 112-0636

NUT-LOCK, FLANGE

$7.49

$

In Stock, only 1 left!

0
